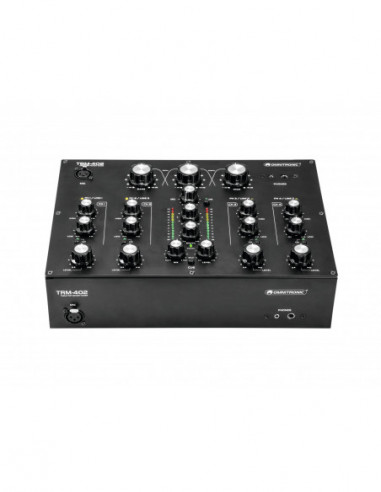

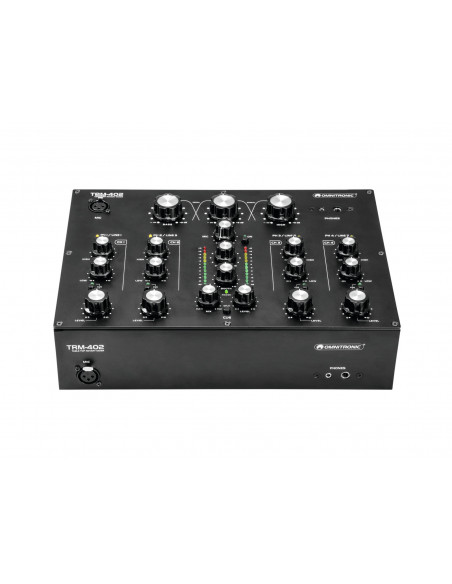

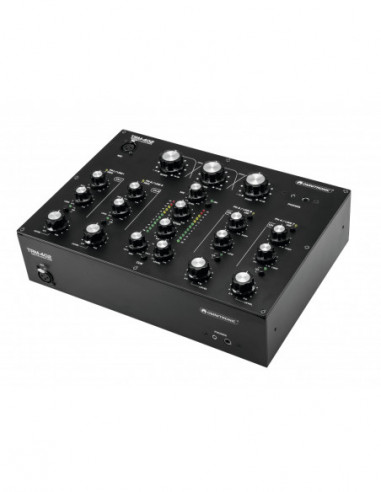

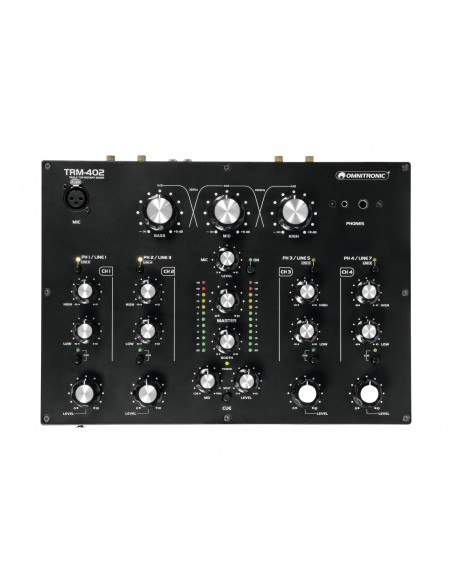

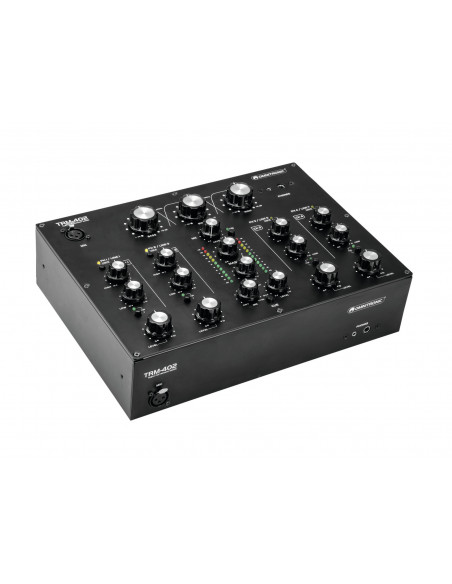

OMNITRONIC TRM-402 4-Channel Rotary Mixer

OMNITRONIC TRM-402 4-Channel Rotary Mixer

Referência 10355930

475,48 €

Entrega entre 7-10 dias

Misturador rotativo de 4 canais com isolador de frequência de 3 bandas para DJs

Descrição
Detalhes do produto

4-channel rotary mixer with 3-band frequency isolator for DJs

Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
Gain control, 2-way equalizer (Highs/Lows) and phono/line switching per channel
Dedicated boost and kill cut
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
DJ microphone input with separate level control
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
12-digit stereo LED level meter and master level control
Booth output with separate level control
Dual inputs for DJ microphone and headphones on the top and front panel
Inputs: 8 x line and 4 x phono (RCA L/R)

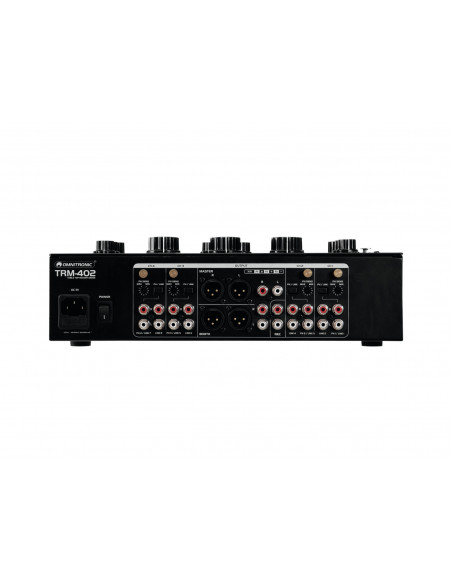

Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
Matching woodkits available at www.omniwoodkit.com
Desktop console housing

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	7,2 W
Protection class:	Class I
Power connection:	Mains input IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	Microphone 20 - 20000 Hz Line 20 - 20000 Hz Phono 40 - 18000 Hz
S/N ratio:	>77 dB phono >80 dB Microphone >85 dB line
THD:	Line <0,03 % at 1 kHz Phono <0,1 % at 1 kHz
Gain:	Microphone 44 dB Line 20 dB Phono 60 dB to +75 dB
Isolators:	Master Gain:- ? bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth
Control elements:	Power switch, source selector, Crossfader, Cue mix split function, EQ controls
Status LED:	Power, master level meter, chanal source, CUE, Microphone
Connections:	Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: Microphone via 2 x 3-pin XLR Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 2 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA
Channels:	Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, gain control, Phono gain rotery, CUE switch, source selector Microphon chanal: 1 x mono via XLR, channel control via Rotary dial, ON AIR switch, Booth output: 1 x stereo via XLR or RCA, channel control via Rotary dial Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function,
Max. level:	Output: +22 dBu
Material:	Metal
Housing design:	Desktop console housing
Dimensions:	Width: 33 cm Depth: 24,7 cm Height: 10,7 cm
Weight:	4,05 kg
