| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
20 W |
| Protection class: |
Class I |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
Microphone 20 - 20000 Hz
Line 20 - 20000 Hz
Phono 40 - 18000 Hz |
| S/N ratio: |
>77 dB phono
>80 dB Microphone
>85 dB line |
| THD: |
Line <0,03 % at 1 kHz
Phono <0,1 % at 1 kHz |
| Gain: |
Microphone 44 dB
Line 20 dB
Phono 60 dB to +75 dB |
| Isolators: |
Master Gain:- ? bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth |

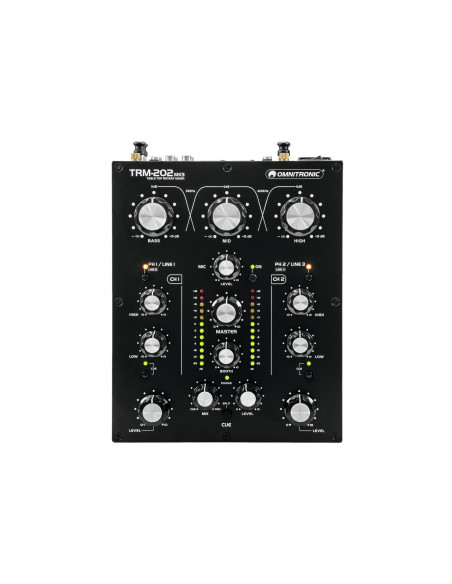

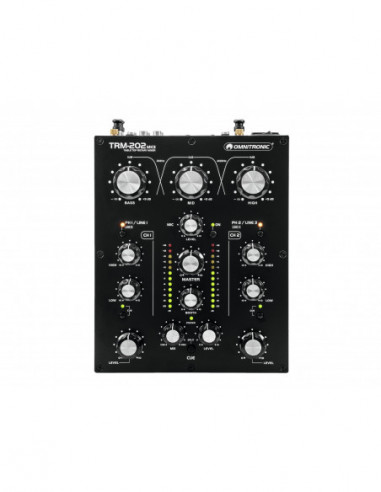

| Control elements: |
Power switch, source selector, Crossfader, Cue mix split function, EQ controls |
| Status LED: |
Power, master level meter, chanal source, CUE, Microphone |

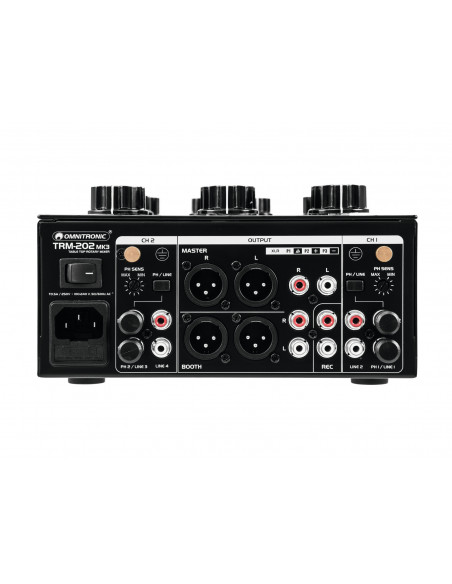

| Connections: |
Input: line via 2 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: Microphone via 1 x 3-pin XLR
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA |
| Channels: |
Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, CUE switch, Phono gain rotery,, source selector, CUE switch,
Microphon chanal: 1 x mono via XLR, channel control via Rotary dial, ON AIR switch,
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function, |
| Max. level: |
Output: +22 dBu |
| Housing design: |
Desktop console housing |
| Dimensions: |
Width: 19 cm
Depth: 25 cm
Height: 10,7 cm |
| Weight: |
2,68 kg |
