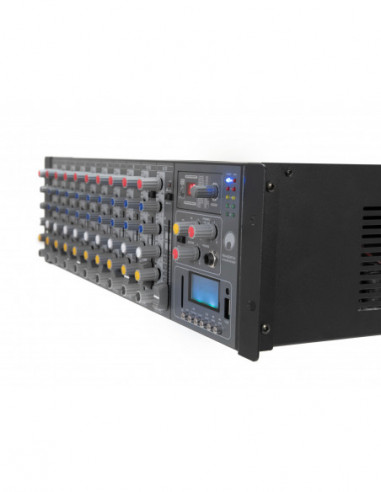

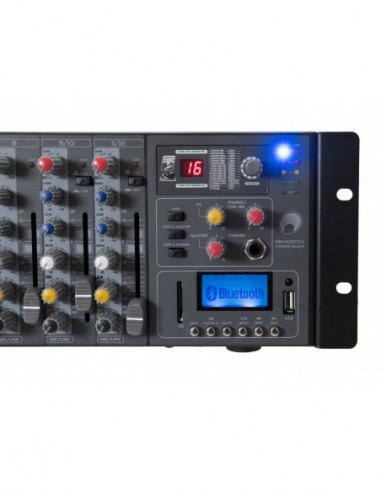

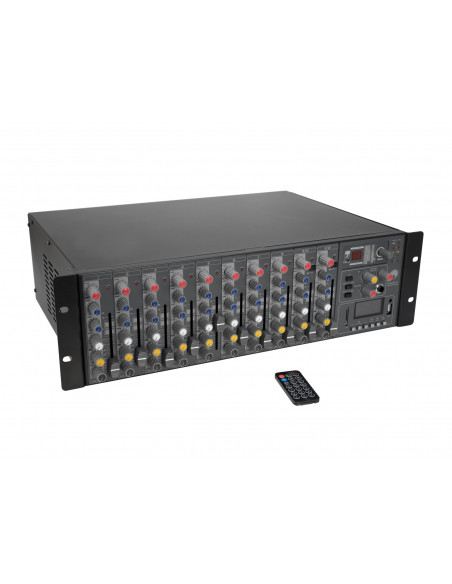

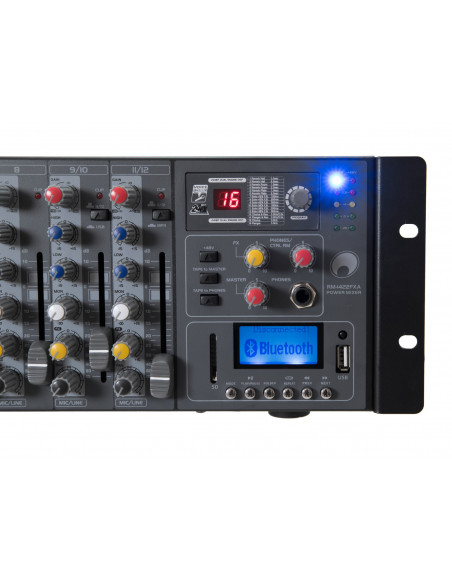

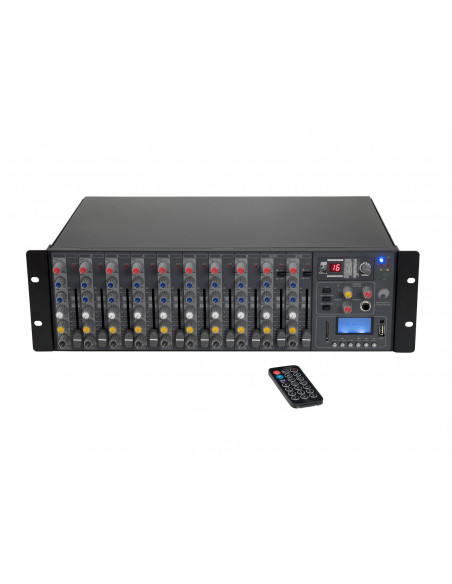

19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player
- Audio mixer and digital amplifier in a 19" housing
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 aux send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- MP3 player with Bluetooth, SD card slot, USB input, LCD and IR remote control
- Digital signal processor
- Controlling by IR remote control; Bluetooth
- (19") 48.3 cm rack installation 3 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 115 W 1/8 power |
| Protection class: | Class I |
| Output power: | 2 x 250 W RMS (8 ohms)
2 x 400 W RMS (4 ohms) |
| Power connection: | Power supply cord with safety plug (provided) |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >89 dB |
| THD: | <0,05 % at 1 kHz |
| DSP: | Digital signal processor |
| Control: | IR remote control; Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Equalizer: | Chanal: 2 x 2-band tone control stereo
Chanal: 8 x 2-band tone control mono |

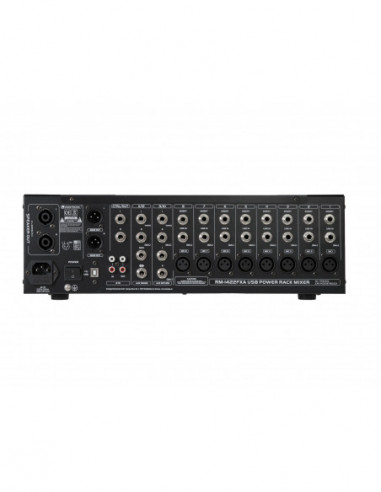

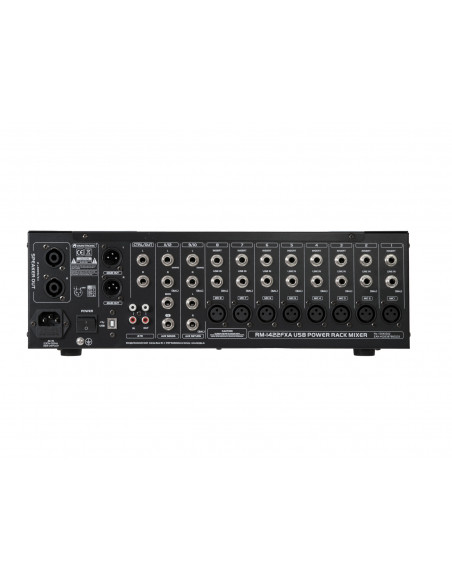

| Connections: | Input: Microphone via 8 x 3-pin XLR
Input: line via 12 x 6.3 mm jack socket (stereo) mounting version
Input: line via 1 x stereo RCA
Input: AUX via 2 x 6.3 mm jack socket (stereo) mounting version
Output: AUX via 2 x 6.3 mm jack socket (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: speakers via 2 x speaker built-in socket (F) |
| Input channels: | 2 x stereo via Plug 6,3mm/3,5mm (Jack)
8 x mono via XLR or jack |
| USB port: | Typ A |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm
Depth: 34 cm
Height: 13,35 cm |
| Weight: | 6,60 kg |
