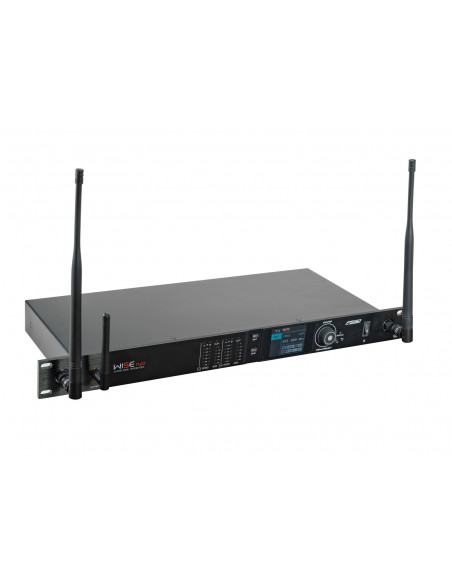

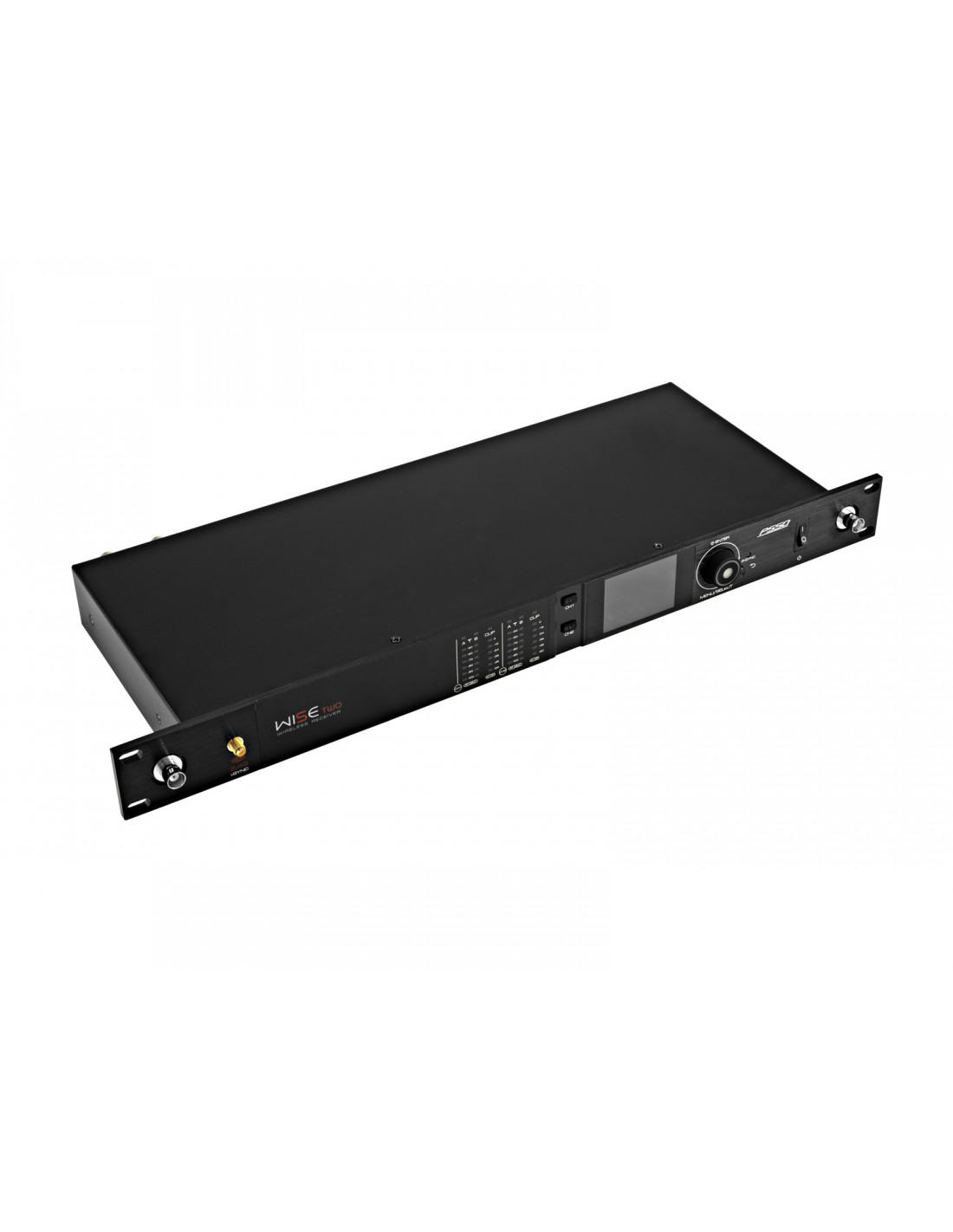

License-free true diversity wireless receiver with 2.4GHz iSync control management
- Professional multifrequency wireless receiver with true diversity reception for stage use
- High-grade components and intelligent features ensure best performance and high reliability
- Ideal for large multi-channel systems (parallel operation possible up to 26 systems)
- 45 preset channels in 5 channel groups
- 2.4 GHz iSync - real-time transmitter synchronization and monitoring
- Automatic frequency setup
- Pilot tone technology (PLL) and noise squelch for interference-free operation

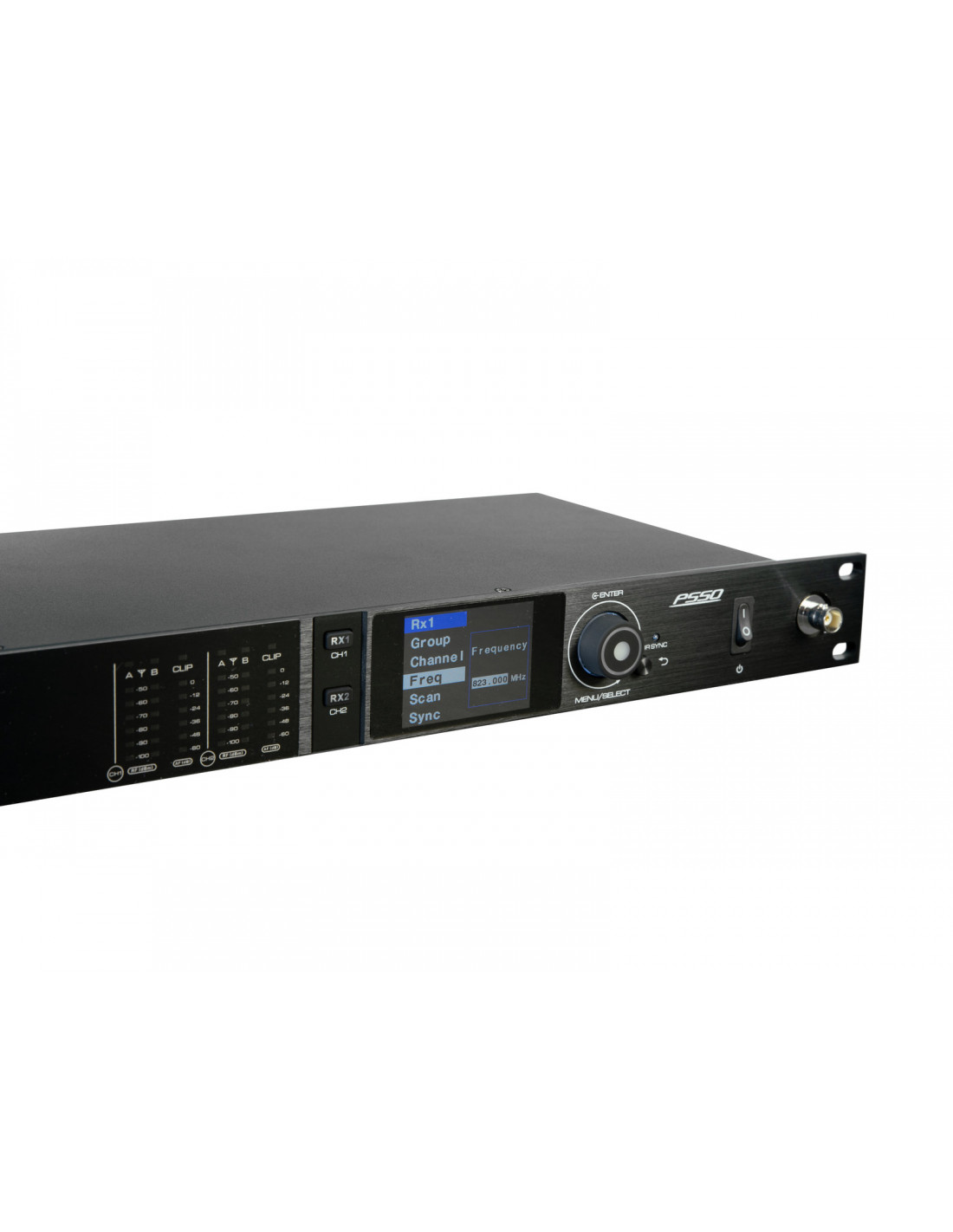

- High-definition LCD color display
- Multifunctional jogdial for menu settings
- Lock function avoids accidental changing of settings
- XLR and 6.3 mm jack output
- Mic/line selector switch
- Ground lift switch
- 2 detachable BNC antennas allow for use with external antenna divider
- USB port for software updates
- 2 receivers can share a single power adapter

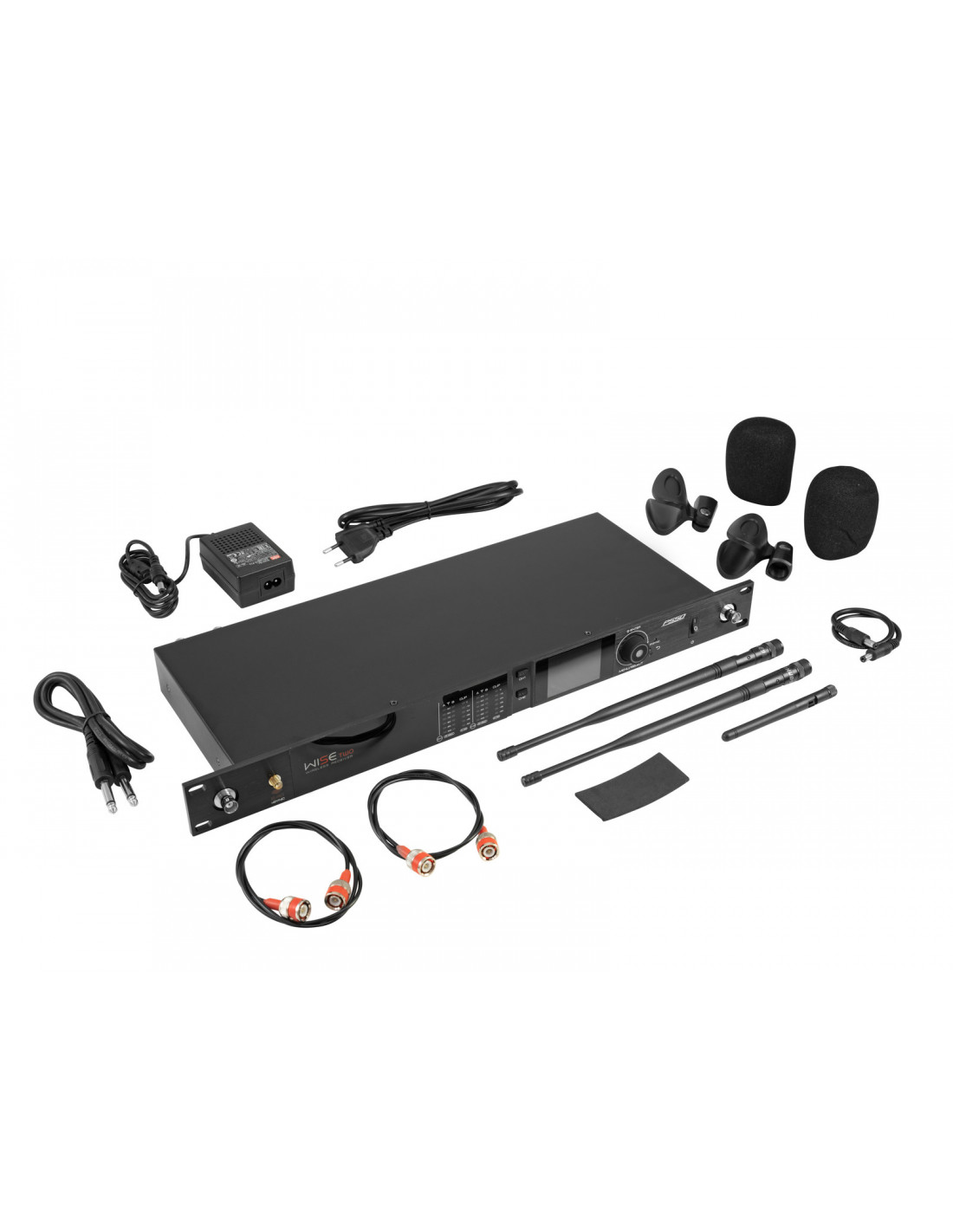

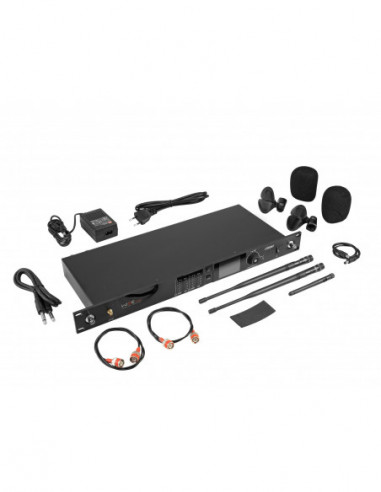

- Delivery includes practical transport bag with jack cable and power adapter
- Matching transmitters optionally available
- 483 mm rack installation possible with supplied mounting brackets
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
- Use a operating range up to 60m with line of sight
- (19") 48.3 cm rack installation 1 U
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12-15 V DC 1,5 A |
| Power consumption: | 8 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 50 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0,1 % at 1 kHz |
| Gain: | Microphone -32 dB to +4 dB
Output: -32 dB to +4 dB |
| Display type: | Multicolor LCD display |
| Control elements: | Power switch, groundlift selector, menu, encoder |

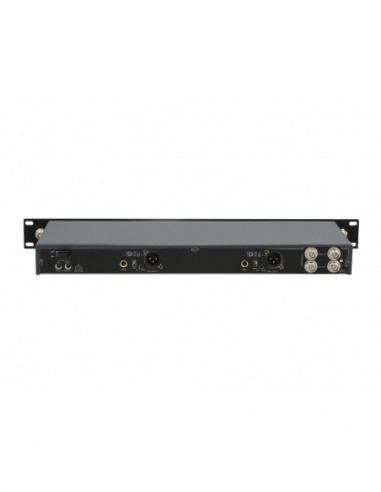

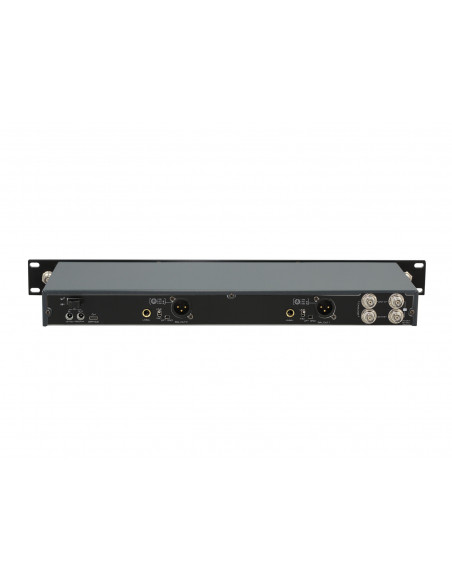

| Connections: | Antenna via 2 x BNC (F) 12-15 V
Antenna via 1 x SMA (F) mounting version
Output: mic/line via 2 x 3-pin XLR
Output: mic/line via 2 x 6.3 mm jack socket (mono) mounting version
Output: for audio/data link via 2 x BNC (F) |
| Channels: | Microphon chanal: 2 x mono with Mic-line switch via XLR or jack |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection: | 45 Switchable frequencys
In 5 groups
Frequencies automatically scannable |
| Modulation: | FM |
| Range: | 60 m with line of sight |
| Switch: | Low cut switch |
| Diversity: | True diversity |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48 cm
Depth: 27 cm
Height: 4,3 cm |
| Weight: | 2,9 kg |
