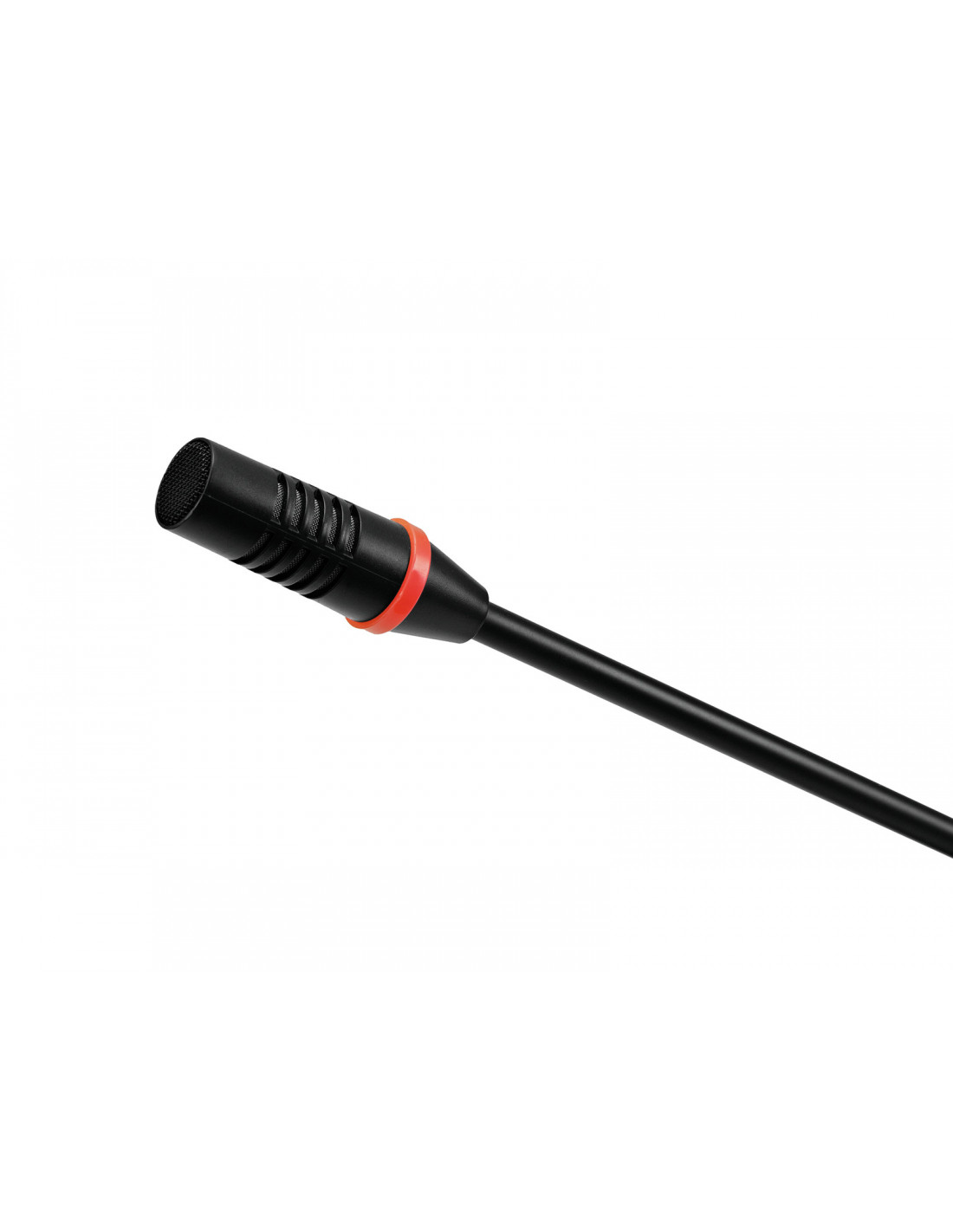

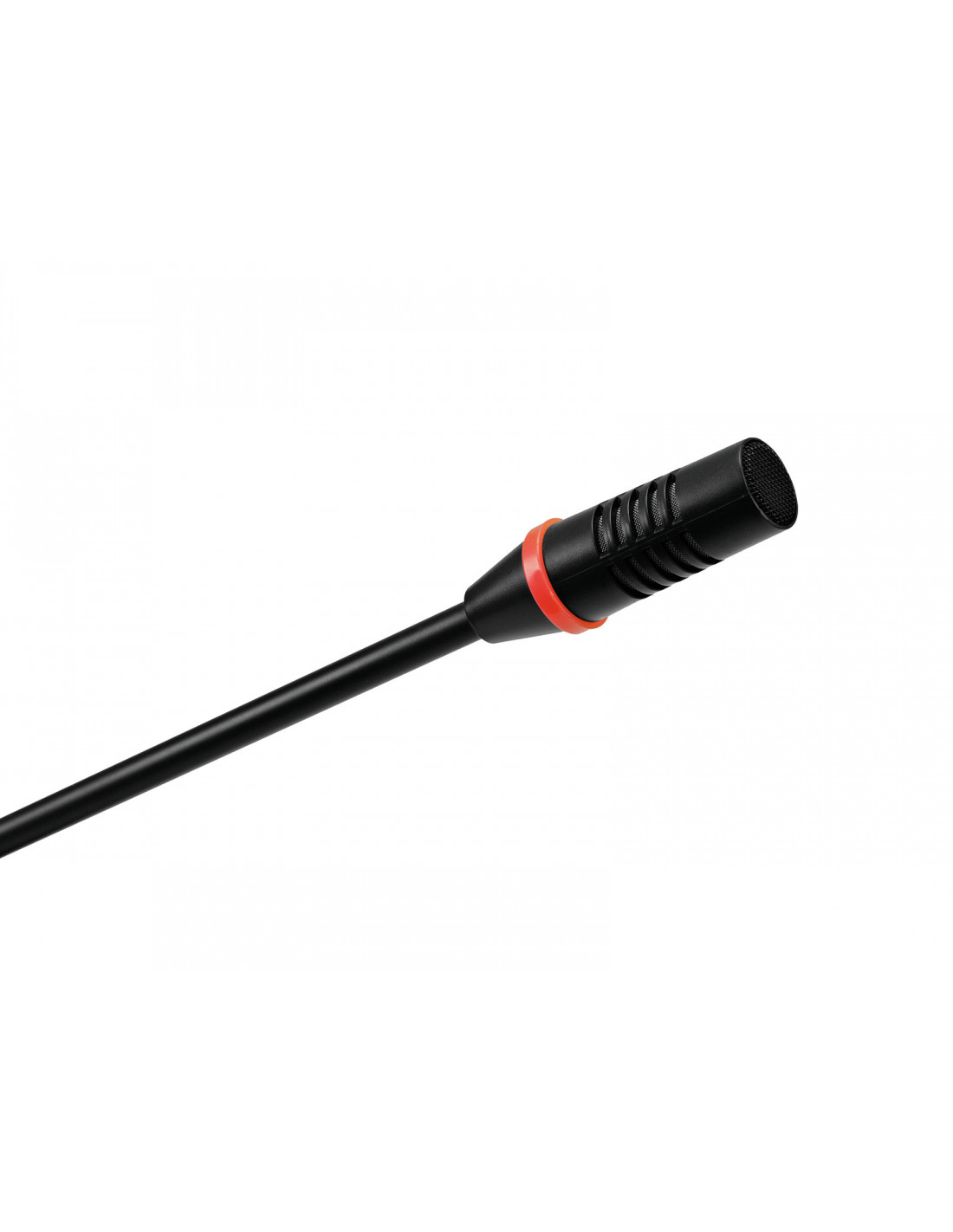

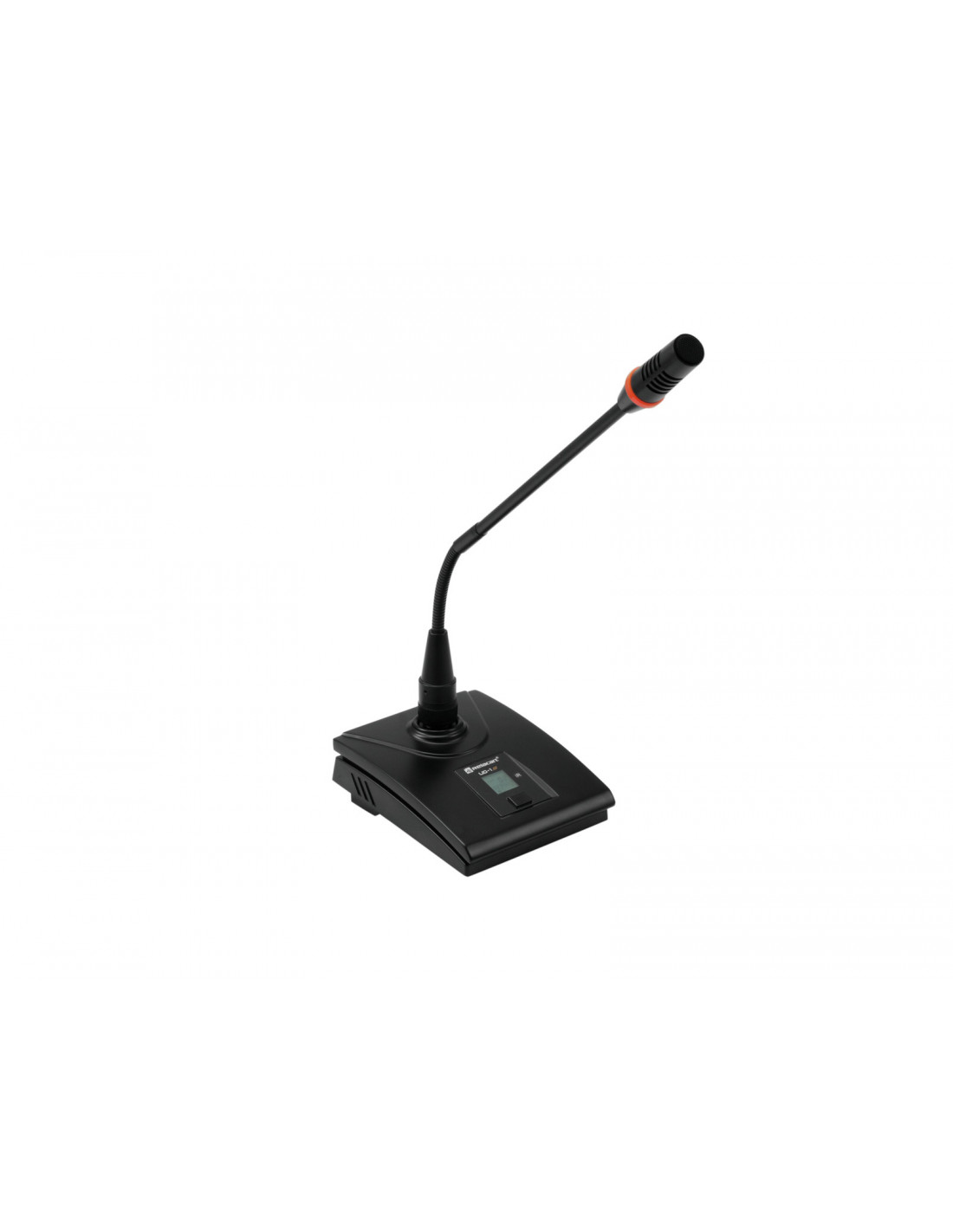

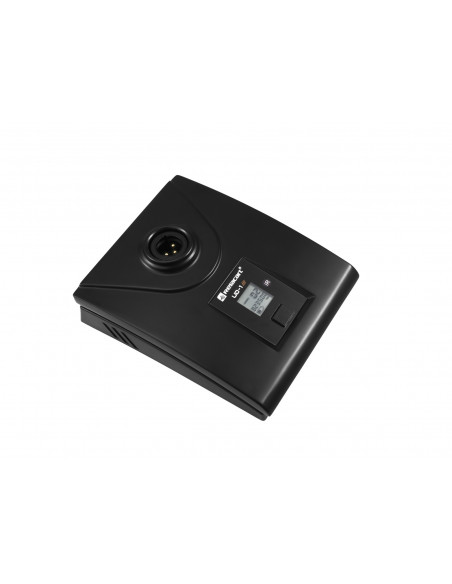

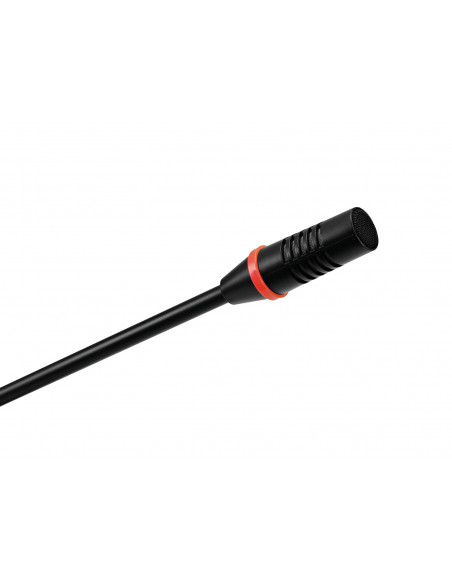

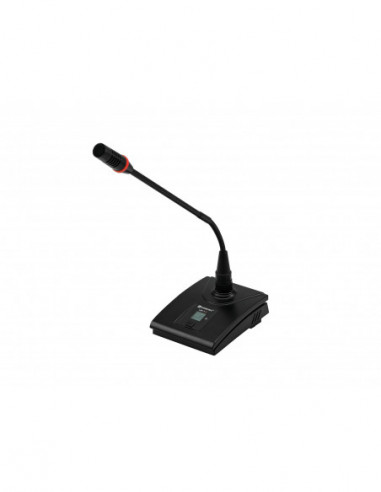

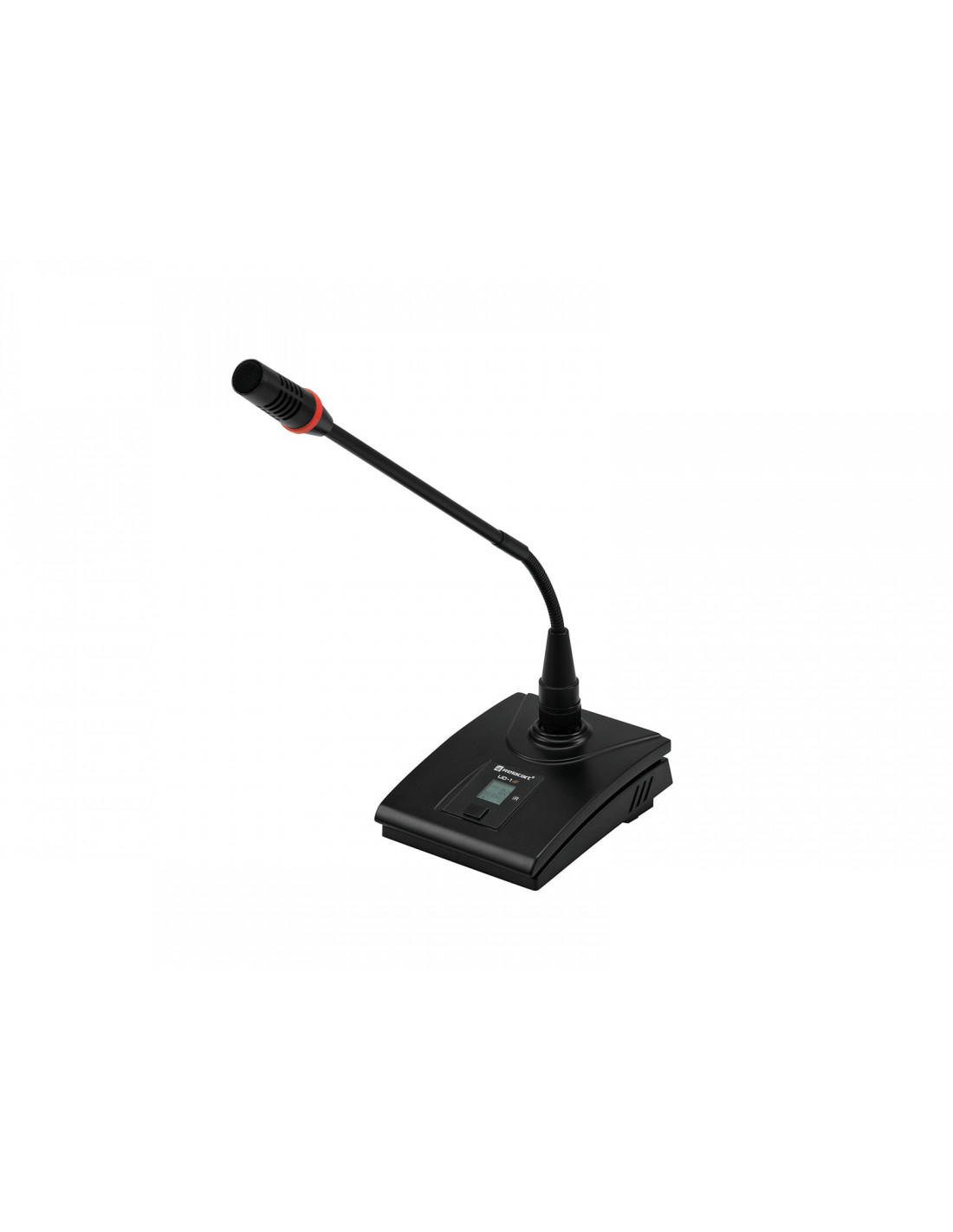

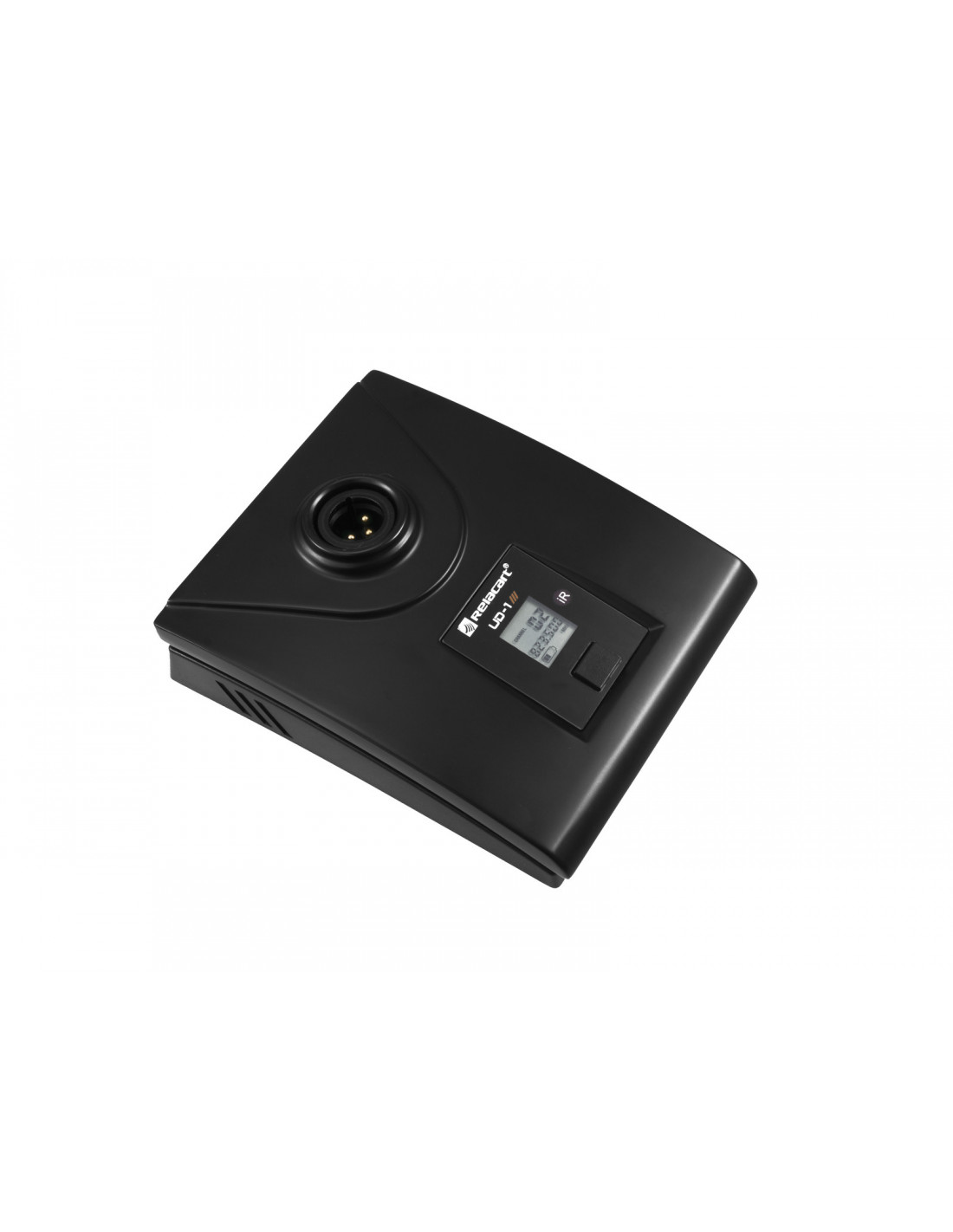

RELACART UD-1 UHF Gooseneck Microphone for WAM-402

Referência 13055227

141,57 €

UHF gooseneck microphone for model WAM-402, 823-832 + 863-865 MHz

Gooseneck microphone with UHF pilot tone technology (PLL)
Parallel operation of up to 9 transmitters is possible without any interference
Suitable for the WAM-402 automatic mixer
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
LCD for battery status, frequency and channel
Gain control and low cut switch
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Use a operating range up to 60m

Type:	Gooseneck microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Capsule type:	Condenser
Battery:	2 x Mignon (AA) (not included)
Low cut:	120Hz, switchable
Gain:	Input: ± 10 dB
Control elements:	Transmitter power switch (high-low)
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	90 Switchable frequencys In 10 groups with up to 10 preset frequencies each
Modulation:	FM
RF power output:	10 mW
Frequency stability:	± 0,0005 %
Range:	60 m
Switching bandwidth:	11 MHz
Switch:	On/off switch; low cut switch
Material:	Metal
Color:	Black
Dimensions:	Width: 11,5 cm Depth: 14 cm Height: 48,5 cm
Weight:	830 g
