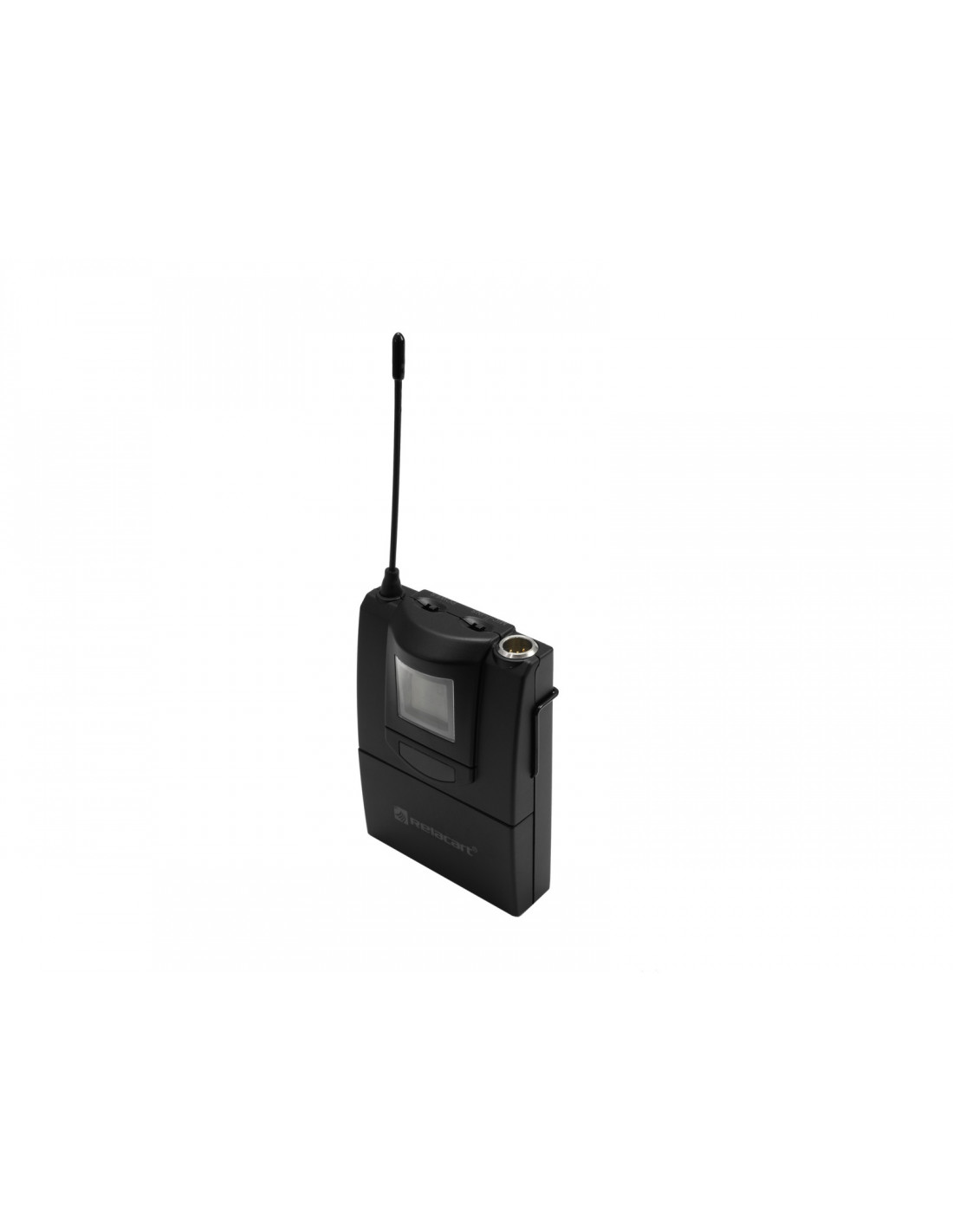

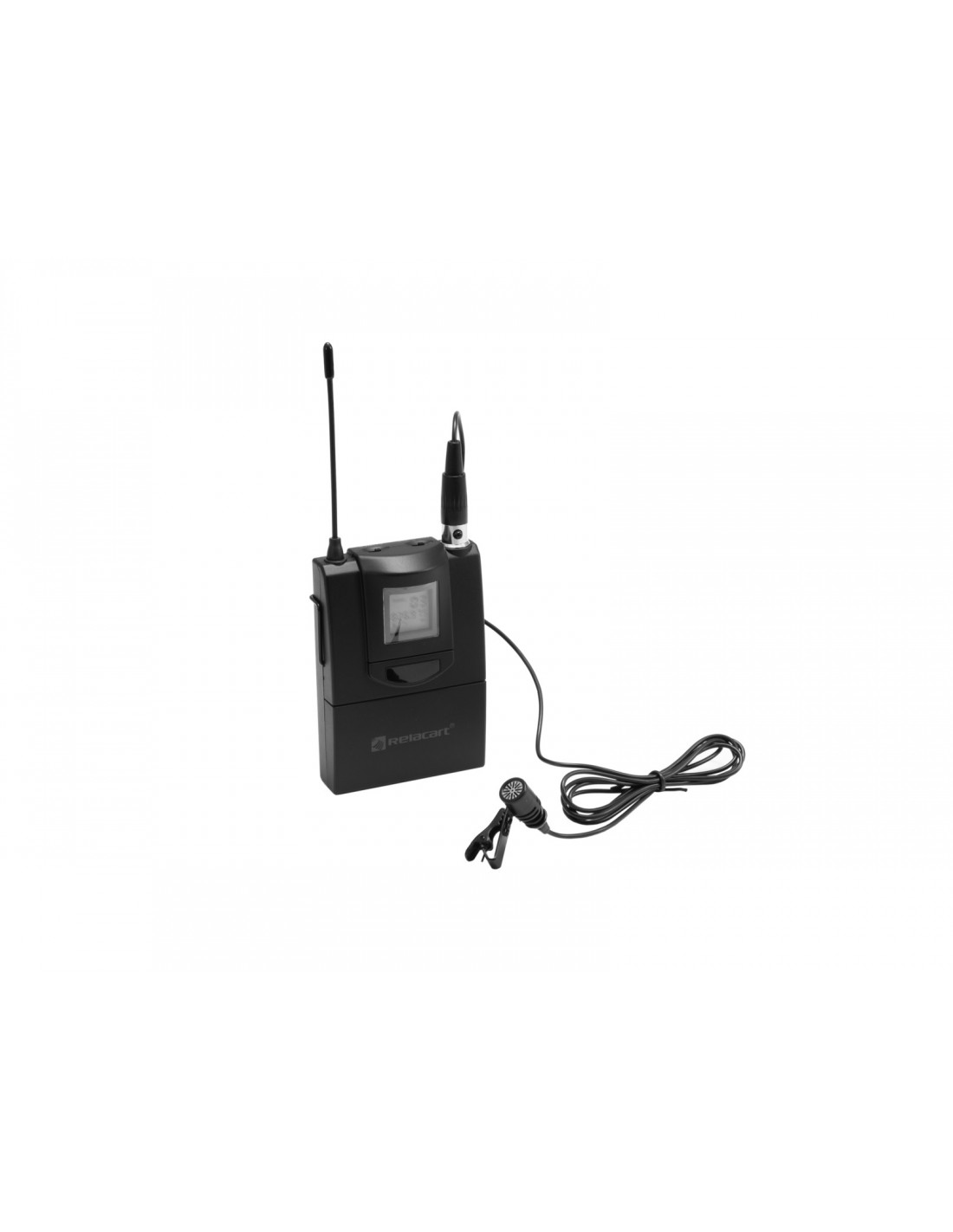

UHF pocket transmitter for model WAM-402, 823-832 + 863-865 MHz
- Pocket transmitter for receiver WAM-402
- Incl. lavalier microphone
- Pilot tone technology (PLL) for interference-free operation
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- LED for battery status, frequency, channel and group
- Long battery life for up to 15 hours continuous operation
- License-free and approved in the EU (please check on a country-by-country basis)
transmitter
- Use a operating range up to 80m
Microphone
- Polar pattern: Cardioid
Type: | Bodypack with microphone |
Power consumption: | 0,42 W |
Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
Frequency selection: | 90 Switchable frequencys In 10 groups with up to 10 preset frequencies each |
Modulation: | FM |
RF power output: | 10 mW |
Switching bandwidth: | 11 MHz |
Weight: | 110 g |
Transmitter | |
Power supply: | 3 V DC |
Power connection: | Battery/battery pack |
Battery: | 2 x Mignon (AA) (not included) |
Control elements: | Transmitter power switch (high-low) |
Range: | 80 m |
Switch: | On/off switch; Mic/Ins switch |
Material: | Plastic |
Color: | Black |
Dimensions: | Width: 6,5 cm Depth: 2,5 cm Height: 9,5 cm |
Weight: | 86 g |

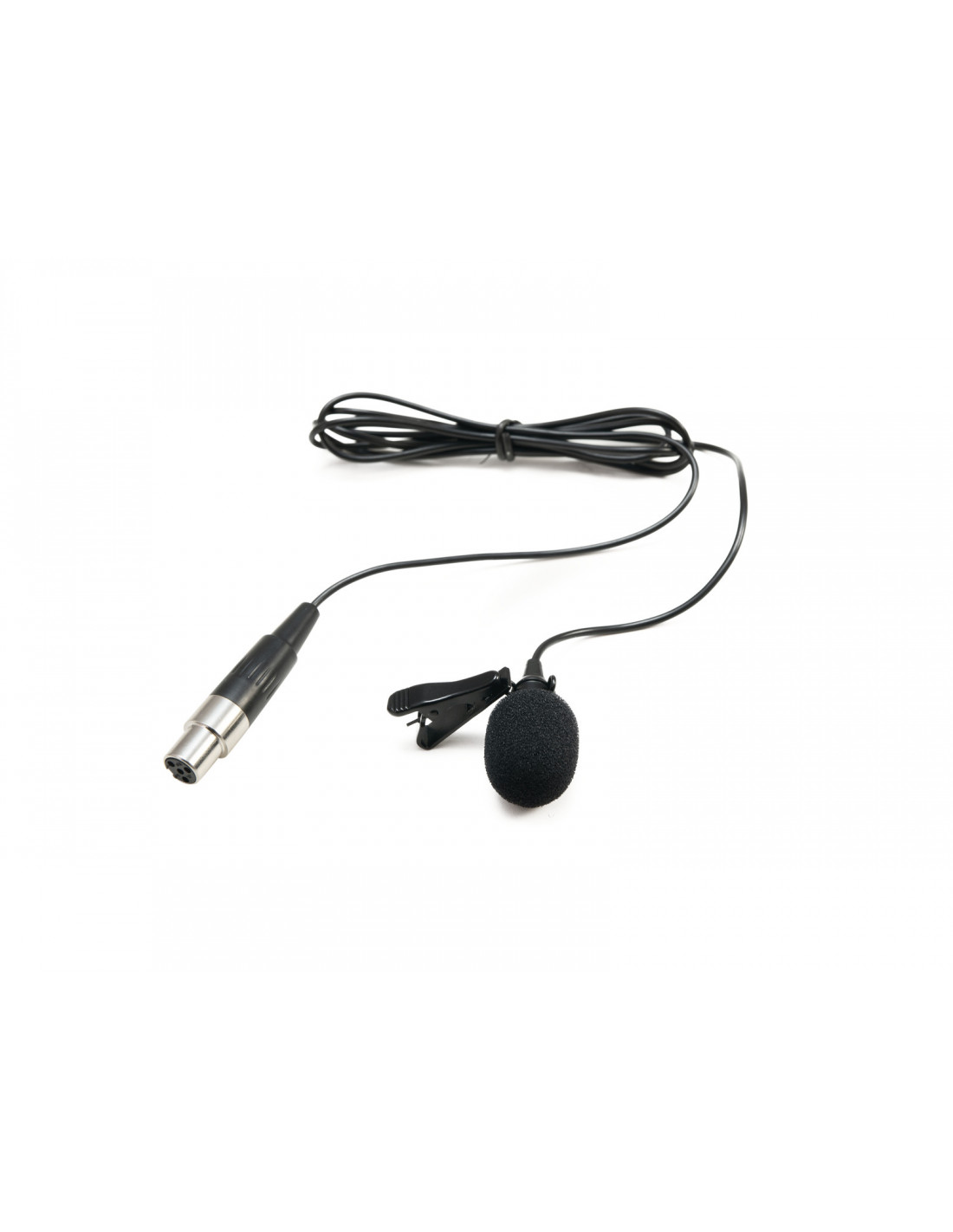

Microphone | |
Type: | Lavalier microphone |
Cable length: | 1,20 m |
Capsule type: | Electret |
Polar pattern: | Cardioid |
Frequency range: | 60 - 12000 Hz |
Sensitivity: | -42 dB |
Connector type: | Mini XLR (F) 4-pin |
Material: | Metal |
Color: | Black |
Weight: | 20 g |
