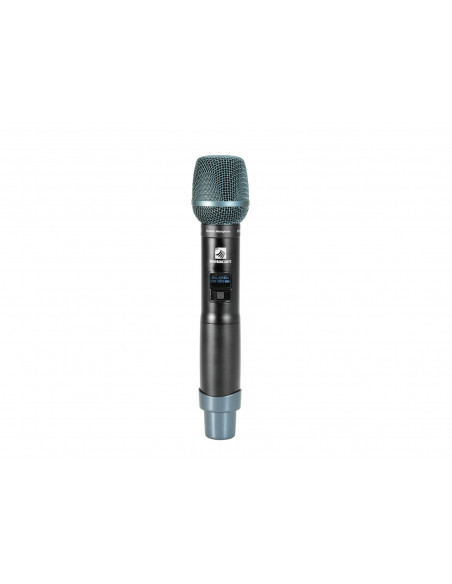

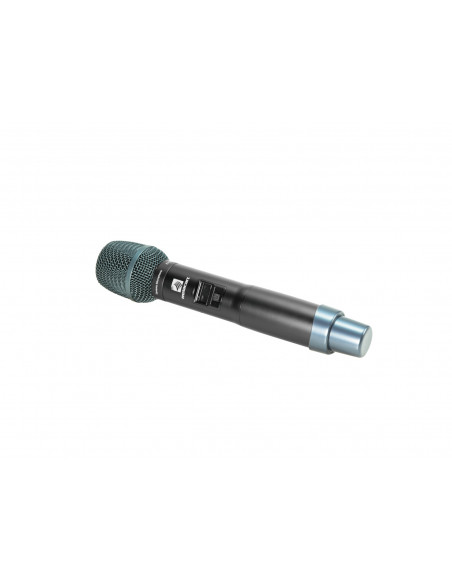

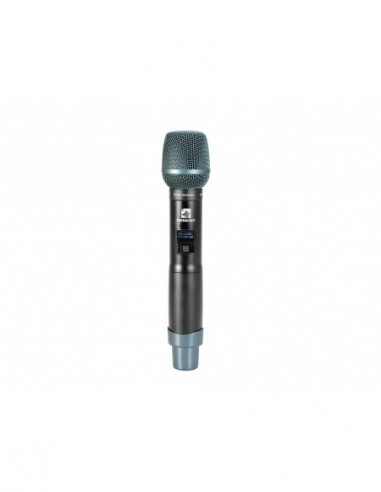

RELACART UH-222D Microphone

Referência 13055206

109,97 €

Hand-held microphone with PLL multifrequency transmitter

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
Matches receivers UR-222S and UR-260D
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
OLED display for battery status and frequency
RF output power Hi/Low adjustable
Gain level Hi/Mid/Low adjustable
Directly compatible with Shure's SM58 capsule
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Polar pattern: Super cardoid
Use a operating range up to 80m

Type:	Transmitter
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Super cardoid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	120 - 16000 Hz
Sensitivity:	-53 dB
Max. SPL:	145 dB
Control elements:	Gain-switch (high-mid-low); Transmitter power switch (high-low)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencys In 10 groups with up to 10 preset frequencies each
Modulation:	FM
RF power output:	10 mW
Range:	80 m
Switching bandwidth:	11 MHz
Switch:	On/off/mute switch
Material:	Aluminum
Dimensions:	Length: 26 cm Diameter: Ø 5,4 cm
Weight:	280 g
