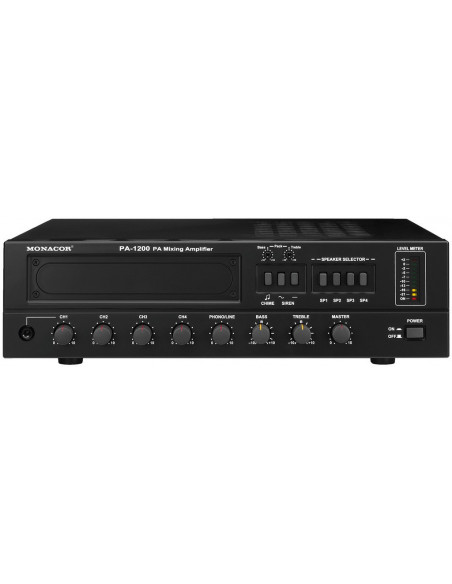

PA-1200 Amplificador Misturador 100V 120W 4 Zonas
PA1200
365,85 €
Amplificador misturador 100V
- 1 x 120 W
- Silent operation due to fanless cooling concept
- Chime, continuous sound and wailing sound, automatic mute, chime can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs
- 15 V phantom power for channels 2 and 3
- Insertions for various functions are available at option
- 482 mm (19") rack installation with mounting frame PA-1200RM, available at option
- Mains operation and 24 V emergency power operation
Power rating
120 WRMS
Peak music power output (PMAX)
170 WMAX
Inputs
1.5 mV/600 Ω (mic),
150 mV/47 kΩ (line),
1 mV/47 kΩ (phono)
150 mV/47 kΩ (line),
1 mV/47 kΩ (phono)
Frequency range
80-15,000 Hz
Equalizer bass
±10 dB/100 Hz
Equalizer treble
±10 dB/10 kHz
S/N ratio
> 60 dB
THD
< 1 %
Power supply
˜ 230 V/50 Hz/280 VA,
24 V/11 A
24 V/11 A
Admiss. ambient temp.
0-40 °C
Dimensions
420x122x350 mm
Weight
13 kg

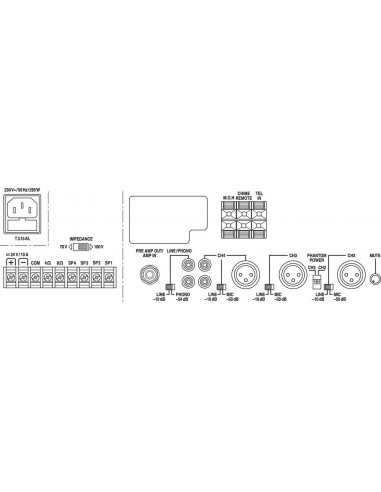

Connections
1 x 6.3 mm jack (mic input),
3 x XLR, bal. (mic/line inputs),
1 x RCA L + R (line input),
1 x RCA L + R (phono/line input),
1 x twin spring-loaded terminal (telephone input),
1 x twin spring-loaded terminal (tuner output),
1 x twin spring-loaded terminal (chime button),
7 x screw terminal (speakers)
3 x XLR, bal. (mic/line inputs),
1 x RCA L + R (line input),
1 x RCA L + R (phono/line input),
1 x twin spring-loaded terminal (telephone input),
1 x twin spring-loaded terminal (tuner output),
1 x twin spring-loaded terminal (chime button),
7 x screw terminal (speakers)
