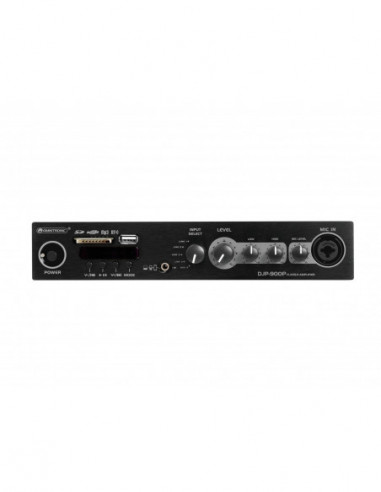

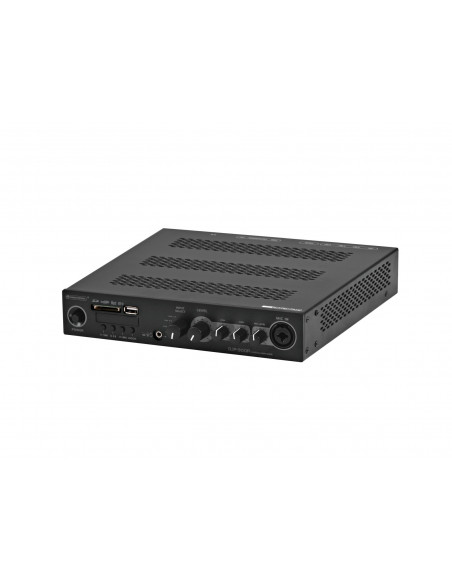

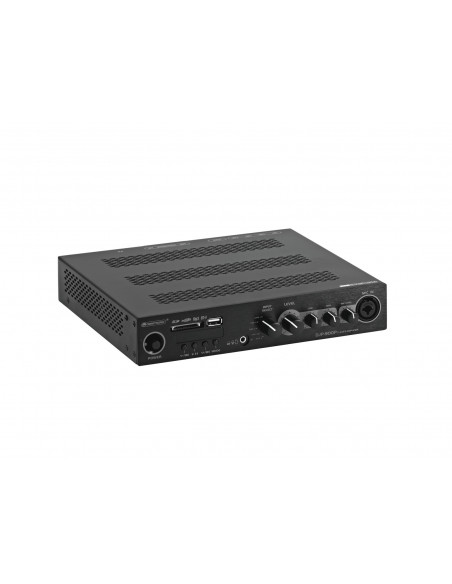

Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms
- For quick-access music playback control in restaurants, fitness studios and retail locations
- Built-in audio player with Bluetooth receiver
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Speaker switch-on delay and auto limiters
- 1 mono microphone input with volume control on the front panel
- Audio source selector
- Extensive protective circuits

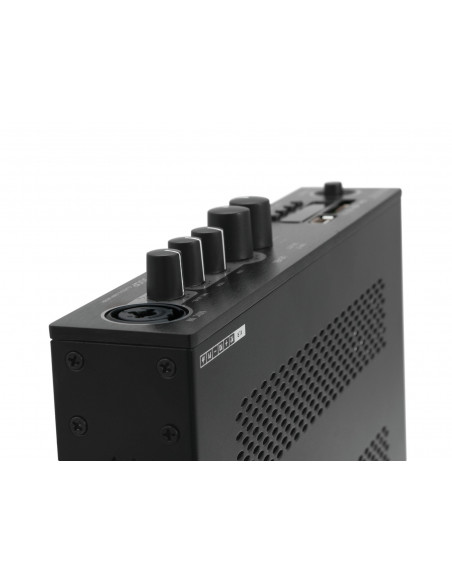

- Robust steel chassis with aluminum front panel
- The device is cooled by passive convection
- Desktop console housing; (19") 48.3 cm rack installation (provided) 1 U
Audio player
- Controlling by Bluetooth
- Bluetooth: Use a operating range up to 10m
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
140 W 1/8 power |
| Output power: |
2 x 460 W RMS (4 ohms)
2 x 240 W RMS (8 ohms)
Max. 260 W bridged (100 V)
Max. 900 W bridged (8 ohms) |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20,000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,05 % at 1 kHz |
| Cooling: |
Passive convection |
| Impedance: |
4 ohms; 8 ohms; 16 ohms; Public address systems 100V |
| Impedance: |
Input 20 kOhm , bal.
Input 10 kOhm , bal. |
| Circuitry: |
Class D |
| Slew rate: |
>14 V/µs |
| Damping factor: |
>300 |

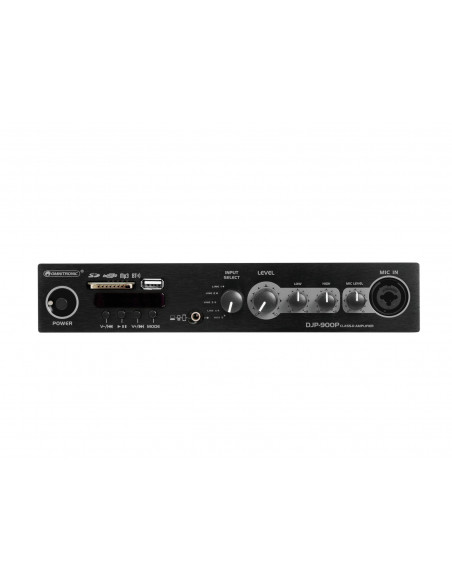

| Control elements: |
Power switch, source selector, EQ controls, level control, mode switch (stereo / bridged/100V) |
| Controls: |
Softstart; short-circuit; overheat; overload; DC voltage; VHF |
| Equalizer: |
Master: 1 x 2-band tone control stereo |
| Status LED: |
Power |

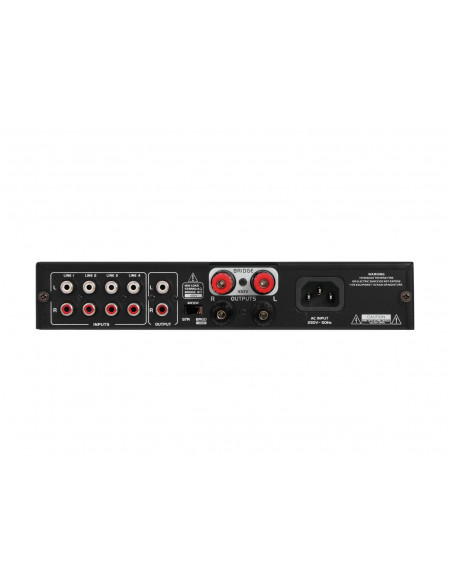

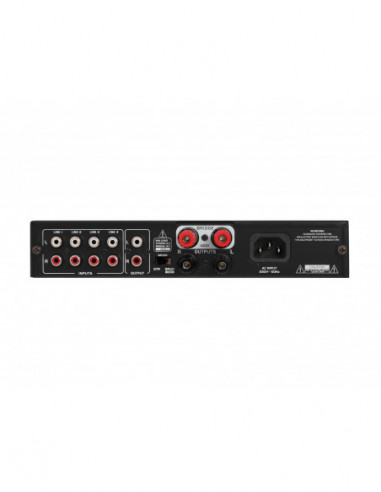

| Connections: |
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 4 x stereo RCA
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Output: speakers via 1 x screw terminal
Output: rec. via 1 x stereo RCA |
| Input sensitivity: |
1 V |
| Material: |
Metal |
| Housing design: |
Desktop console housing
(19") 48.3 cm rack installation (provided) 1 U |
| Dimensions: |
Width: 24,1 cm
Depth: 25,6 cm
Height: 4,45 cm |
| Weight: |
2,54 kg |
| Audio player |
| Control: |
Bluetooth |
| Audio player: |
USB + SD + Bluetooth |
| Format: |
MP3, WMA; WAV |
| Frequency band: |
2.4 GHz |
| Available storage media: |
USB devices/SD cards max. 32GB (FAT 16/32) |
| Range: |
10 m Bluetooth |
