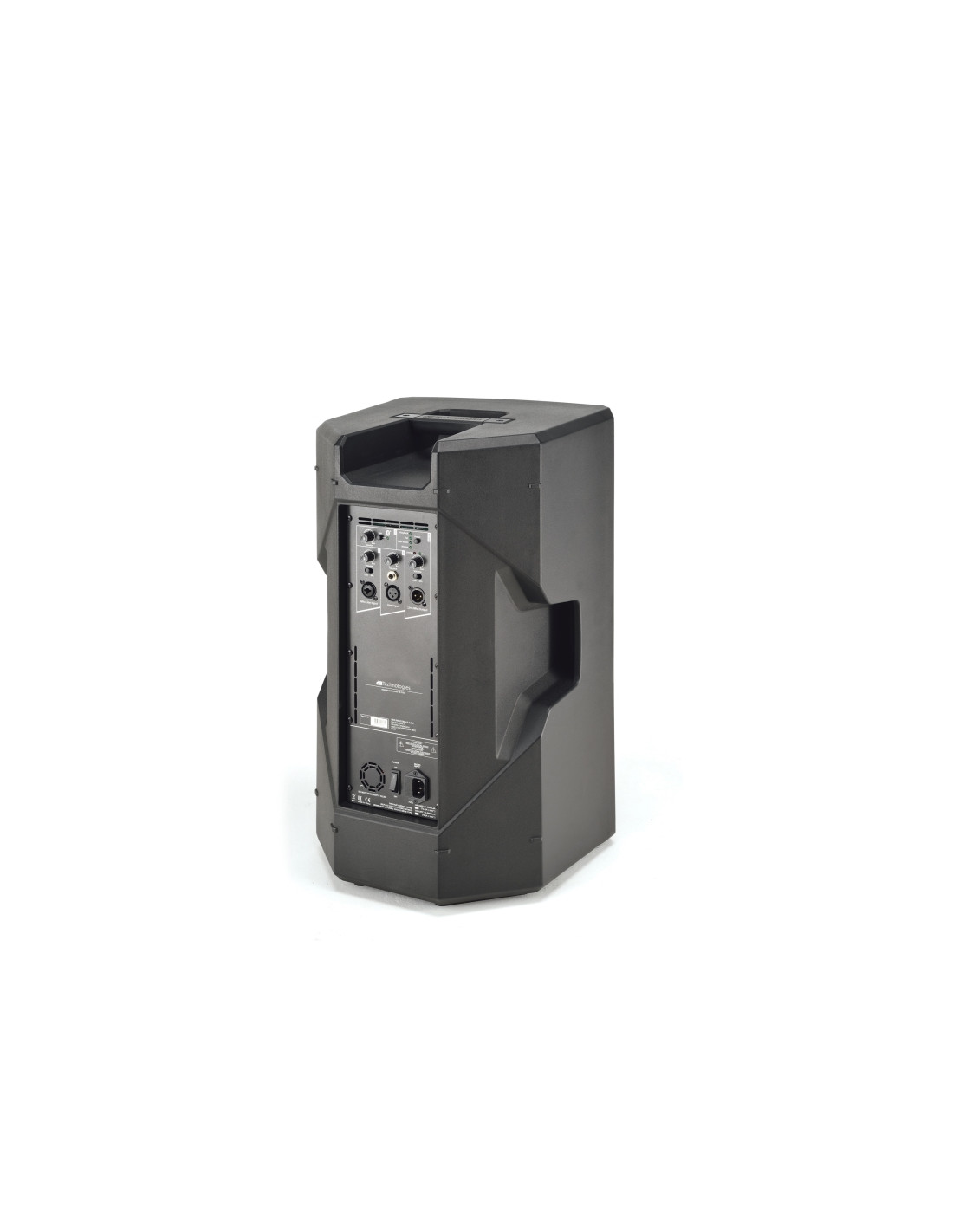

KL series aims to enhance usability and versatility in dBTechnologies’ 2-way active speaker series: combining efficiency to a professional sound performance, KL systems feature Bluetooth® connection, 3 INPUT channels, impressive SPLs and a powerful DSP where linear phase FIR filters ensure the most accurate sound reproduction.
Technical Data
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]52 - 18.000 Hz
Max SPL127 dB
HF1" CD, 1.35"v.c
LF12", 2.5" v.c.
Dispersion90°x60°
Crossover Frequency1800 Hz (24 dB/oct.)
Amplifier
Amp TechnologyClass D(LF)+Class AB (HF)
Power Peak (LF+HF)800 W
Processor
Controls1xVolume, 1xslide switch mic/line
Indicatorspower on/signal/limiter LEDs
ControllerDSP 20/56 bit
AD/DA Converter24 bit/ 48 Hz
Systems PresetsPlayback, Flat, Bass Boost, Wedge
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Input
Signal Input1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS
Bluetooth Input1xBluetooth receiver
SIGNAL Output1xXLR Male (LINK/MIX)
Mechanics
HousingPolypropylene
Handles3 (2 on side 1 on top)
Angles UpMonitor Use 45°
Pole Mount36 mm, double positioning
Width365 mm (14.37 in)
Height622 mm (24.50 in)
Depth342 mm (13.46 in)
Weight16.5 kg (36.37 lbs)
