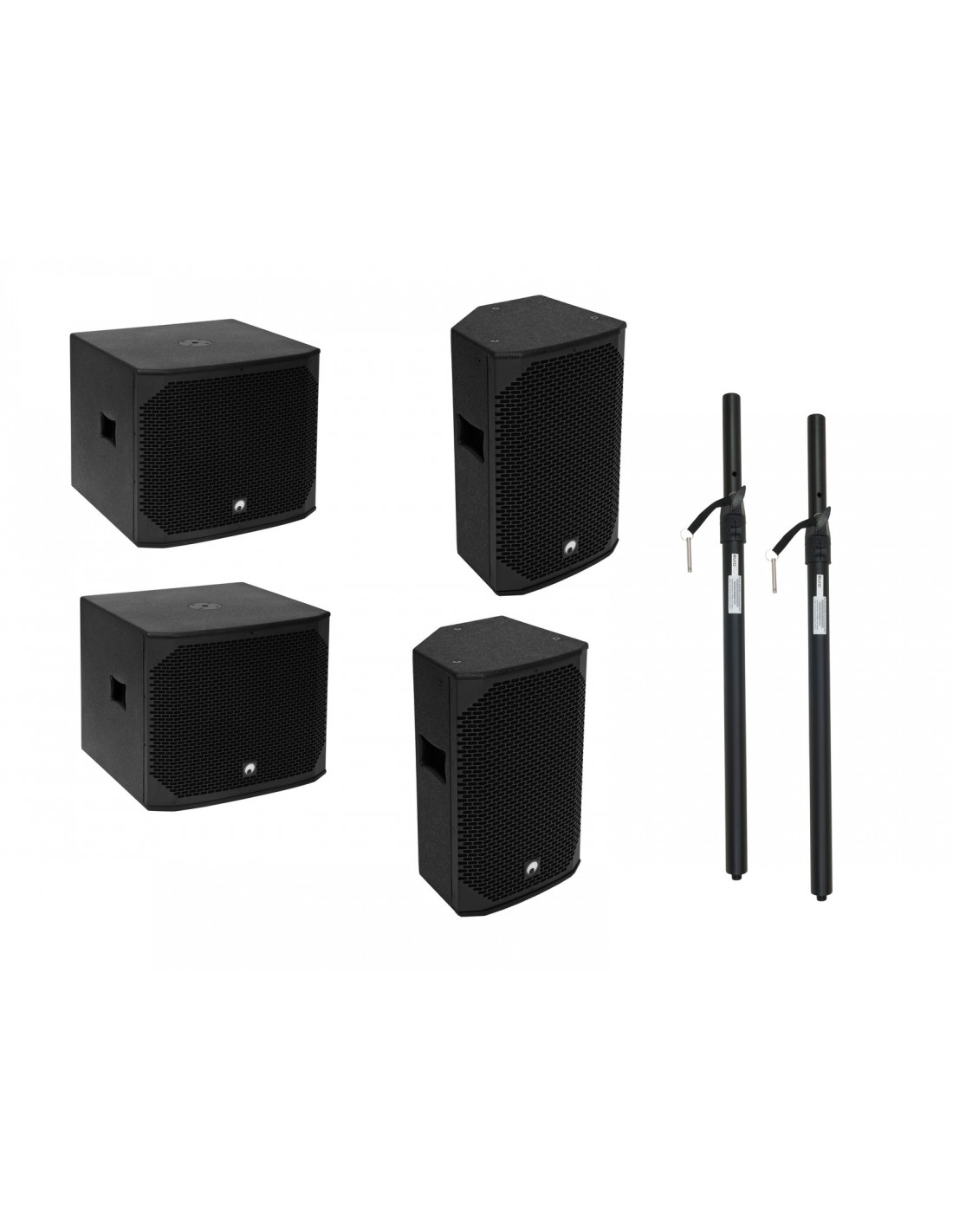

2x active 18" PA bassreflex subwoofer with 2x active speaker with 12" woofer incl. distance tube
OMNITRONIC AZX-118A PA Subwoofer active 400W
Active 18" PA bassreflex subwoofer, 400 W
- 46 cm (18") bass speaker with 76 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Phase reversal switch
- Limiter for overload protection
- Limit, signal and power LED
- M20 metal flange for top speakers
- Carrying handles
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Impact-resistant steel grille with acoustic foam
OMNITRONIC AZX-212A 2-Way Top active 250W
Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS
- 2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- HF adjustment -4 dB, -2 dB, 0 dB
- Limiter for overload protection
- Limit, signal and power LED
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M10 threaded inserts for suspended installation
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
OMNITRONIC Distance Tube Subwoofer/Satellite M20
Variable distance tube
- Connecting tube for satellite systems
- Locking screw and bolt
- Powder-coated steel version
- Thread: M20 thread
| Weight: | 107,64 kg |
| OMNITRONIC AZX-118A PA Subwoofer active 400W |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: | 400 W RMS |
| Frequency range: | 40 - 250 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Crossover frequency: | 80-200 Hz |
| Attachment system: | M20 thread |
| Circuitry: | Class D |
| Connections: | Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR |
| Speakers: | 1 x woofer (18") approx. 45 cm
Voice coil lows (2.5") approx. 6.35 cm |
| Type of speaker: | Subwoofer |
| Type: | Vented |
| Material: | MDF (Medium-density fibreboard), 15 mm |
| Dimensions: | Width: 66,5 cm
Depth: 66,5 cm |
| Weight: | 33,65 kg |
| OMNITRONIC AZX-212A 2-Way Top active 250W |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 650 W |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: | 200 W RMS LF; 50 W RMS HF |
| Frequency range: | 55 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Attachment system: | Bead Ø 35mm variable tilt |
| Circuitry: | Class D Biamp |
| Equalizer: | Master: 1 x 2-band tone control |
| Connections: | Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial |
| Speakers: | Woofer (12") approx. 30 cm with ferrit magnet
Voice coil lows (2") approx. 5 cm
Voice coil compression tweeter highs (1.35") approx. 3,5 cm |
| Type of speaker: | Compact cabinet speaker |
| Material: | MDF (Medium-density fibreboard), 15 mm |
| Dimensions: | Width: 43 cm
Depth: 40,5 cm
Height: 67 cm |
| Weight: | 19,15 kg |
| OMNITRONIC Distance Tube Subwoofer/Satellite M20 |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 41 - 35 mm |
| Height: | Maximum: 135 cm
Minimum: 75 cm |
| Attachment system: | Ø 35mm |
| Type (general stands): | Distance tube |
| Color: | Black |
| Thread: | M20 thread |
| Weight: | 1,02 kg |
