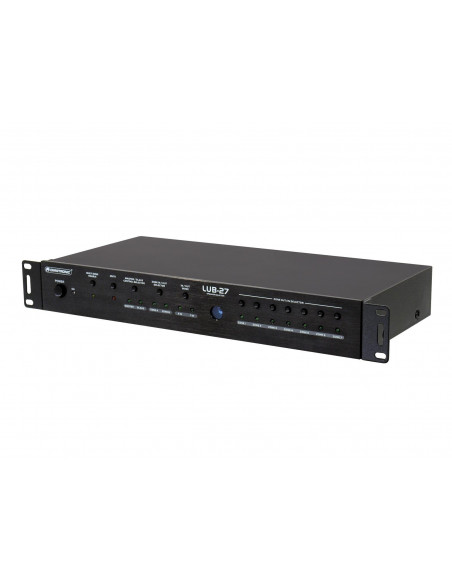

Present your products at their bestWith the Omnitronic LUB-27 loudspeaker switch box, you get a versatile 7-channel switch box for loudspeaker pairs or amplifiers. It is ideal for performance or sound comparison for showrooms or similar demonstration purposes. Demonstrate the advantages of certain loudspeakers or power amplifiers in an impressive and uncomplicated way.Several modes of operation Mode 1: Switch an amplifier signal to 7 pairs of speakers individually. With the multi-zone function for ELA applications, you can even combine the 7 speaker pairs as you wish. Mode 2: Alternatively, the LUB-27 offers you the possibility to switch 7 amplifier signals individually to one speaker pair. Useful additional functionsOptionally, you can expand your system to 14 speaker zones in speaker switching mode: Simply connect 2 devices. Control your LUB-27 comfortably with the enclosed infrared remote control. Get an overview of the operating mode or zone status at any time with the help of the LED indicators.After switching on, the speaker switch box automatically restores your user settings. If necessary, simply mute the system completely with the mute button.

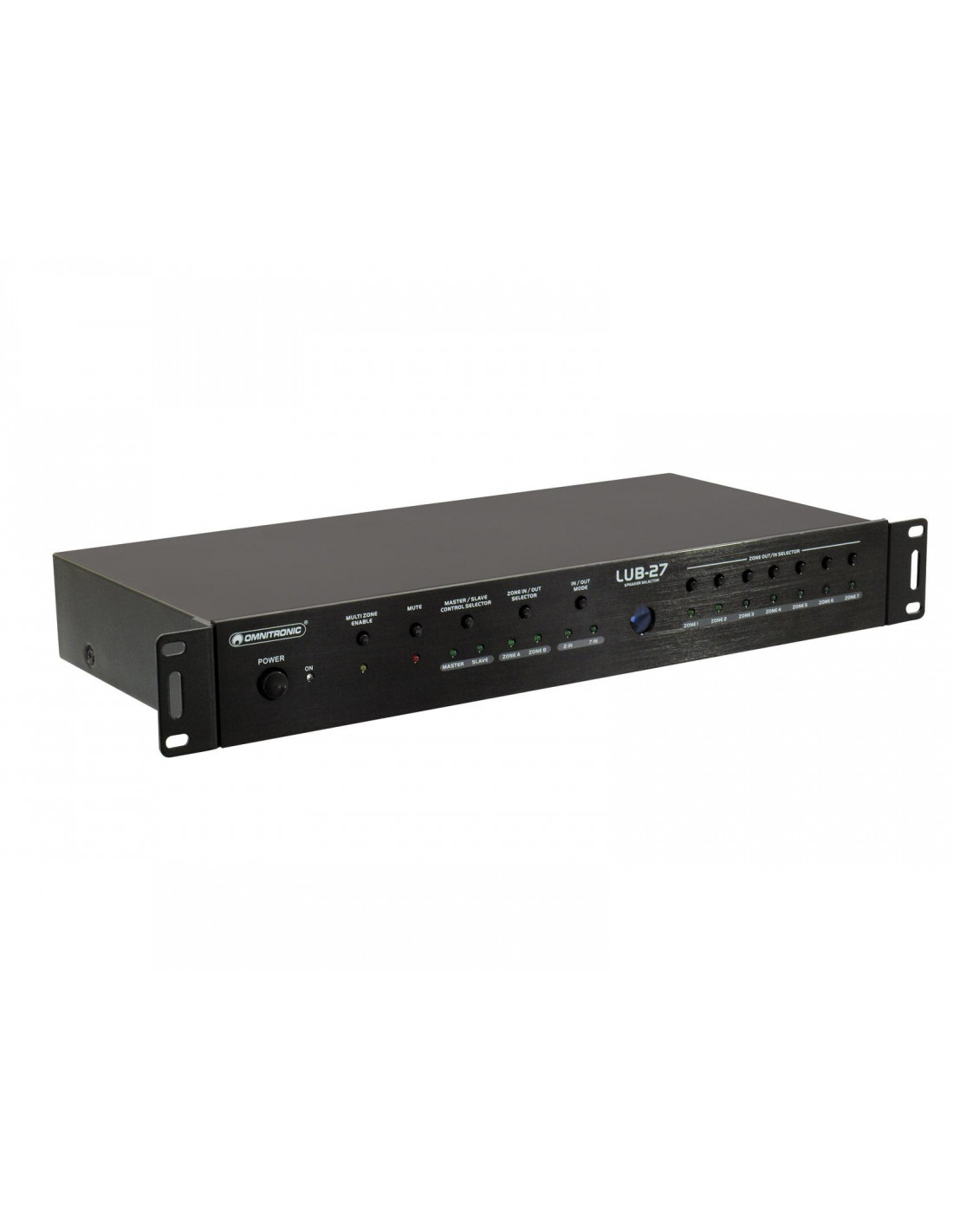

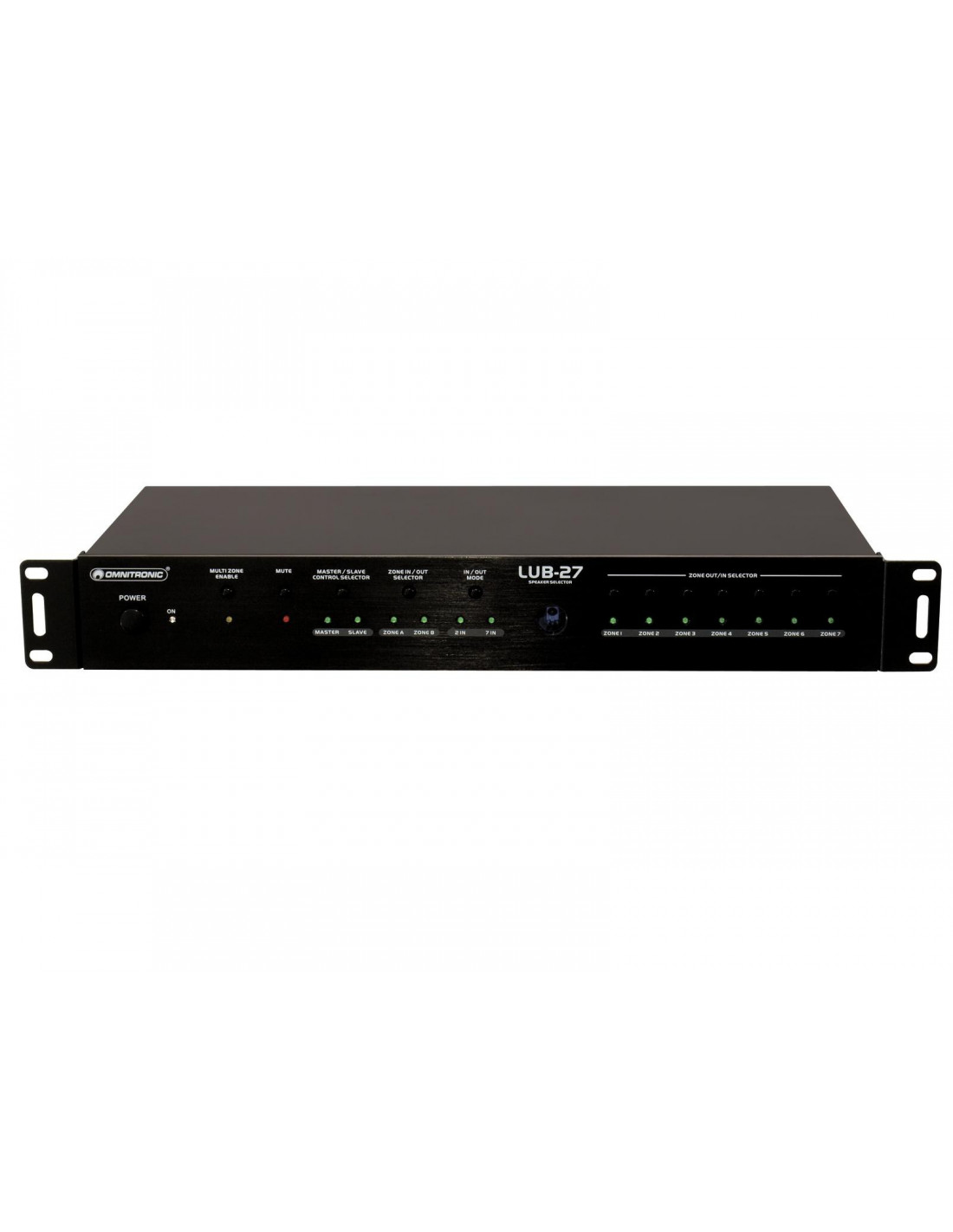

Speaker/amplifier switch box with IR remote control
- 7-channel switch box for speaker pairs or amplifiers
- Ideal for showrooms for comparing the performance of different speakers or amplifiers
- Operating mode 1: switching over on 7 speaker pairs to 2 stereo amplifiers with A/B selection
- Operating mode 2: switching over on 7 stereo amplifiers to 2 speaker pairs with A/B selection
- Multi-zone function also allows for freely combining the 7 speaker pairs in operating mode 1
- Parallel connection of 2 units for extension to 14 zones possible in operating mode 1, connection cables optional
- High-power audio signal transmission, power rating: 25 A per channel
- LED indicators for each status
- Mute function
- Automatic recall of last-used settings after switching on

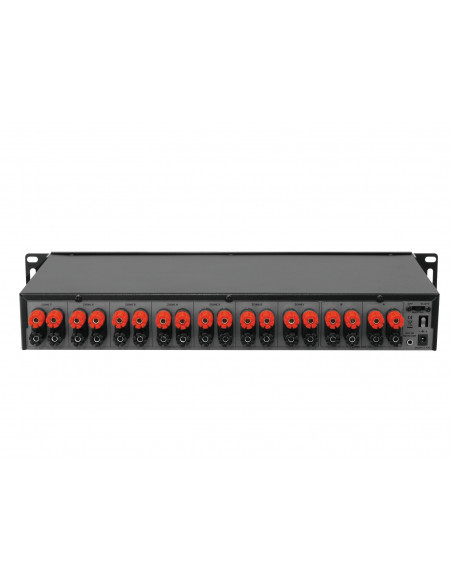

- Connections via pairs of screw terminals

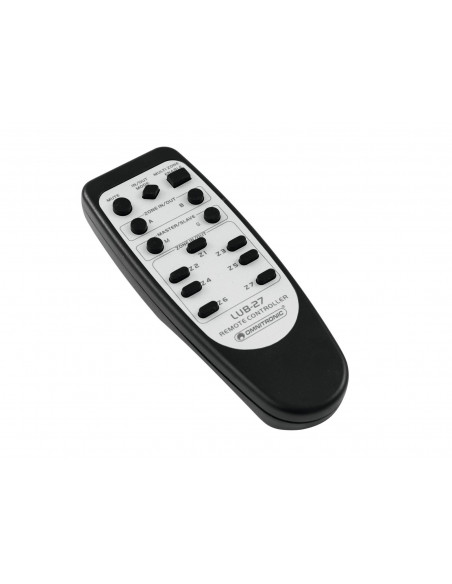

- Incl. IR remote control
- Optional extension IR receiver
- Rugged steel chassis with aluminum front panel
- Operation via supplied switch mode power unit
- Rack installation, 2 U
- Controlling by IR remote control
- Use a operating range up to 10m
- (19") 48.3 cm rack installation 2 U
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
30,00 W |
| Power connection: |
Mains input Coaxial power connector (M) power supply cord with Euro plug (provided) |
| Control: |
IR remote control |
| Control elements: |
Power switch, source selector |
| Connections: |
Zones via 7 x screw terminal
IR-Extension/receiver via 1 x 3.5 mm jack (stereo) |
| Range: |
10 m |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 22 cm
Height: 8,9 cm |
| Weight: |
3,80 kg |
| Remote control |
| Battery: |
2 x 1.5 V AAA Micro R03 zinc carbon (provided) |
