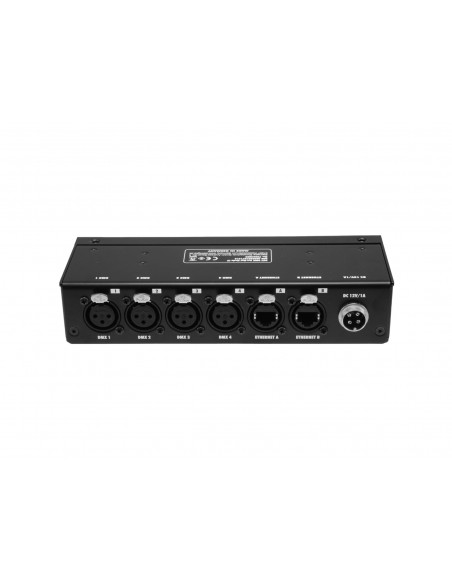

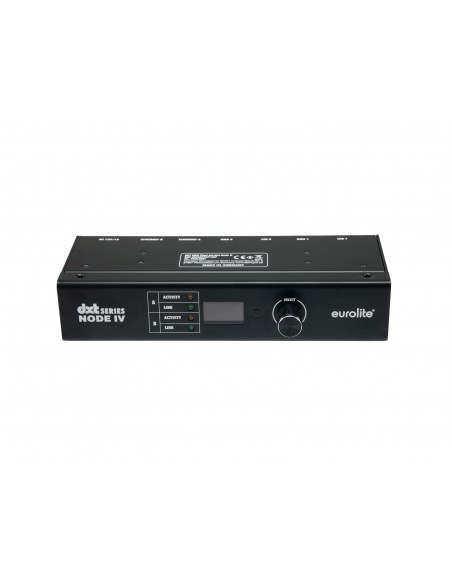

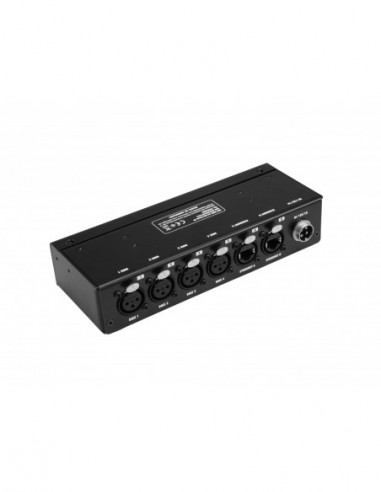

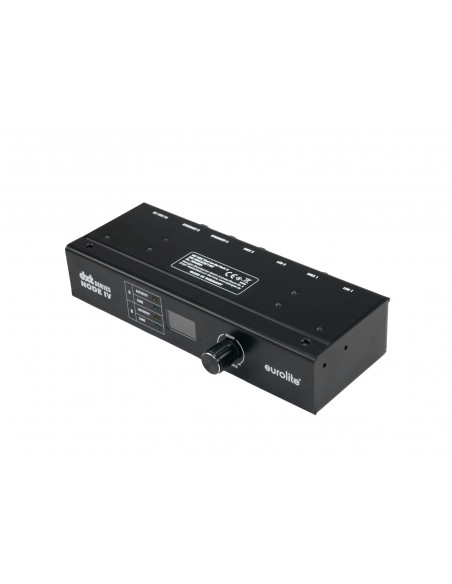

The DXT DMX Art-Net Node IV is part of Eurolite's DXT series, which consists of high-performance and reliable DMX tools made in Germany. The Node IV features four channels that can output up to 512 DMX channels each or control up to 2048 channels. It provides four Neutrik XLR and two etherCON connectors. The second etherCON connector enables daisy-chaining of the network connection with multiple devices. The device can be configured with an integrated OLED display, via Art-Net or with a website.
Art-Net interface for output of 2048 DMX channels
- 4 x 3-pin DMX output
- 2 etherCON network connections
- Up to 2048 DMX channel output
- OLED display with rotary encoder
- Link and activity LED for each network port
- Supported by all applications with Art-Net output
- ArtDMX reception via Broadcast or Unicast
- Configuration with OLED display, website or Art-Net
- Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
- DMX refresh rate: 40 Hz or 20 Hz
- Operation via included power adapter
- Rack or truss installation via optional accessories
- Can transmit up to 2048 DMX channels
- Controlling by ArtNet
- Built with NEUTRIK connector
- The device can be connected via RJ-45 (F) mounting version to the PC
- Desktop console housing 1 U; (19") 48.3 cm rack installation (optional)
- Made in Germany
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | 3 W |
| IP classification: | IP20 |
| Power connection: | Mains input 4-pin screw plug connector (M) mounting version power supply cord with AC adapter |
| DMX channels: | Output 2048 |
| DMX output: | 4 x 3-pin XLR (F) mounting version |
| Network connection: | Protocol: Ethernet TCP/IP via 2x RJ-45 etherCON (F) mounting version, 10/100 Mbit/s
Standard: IEEE 802.3u |
| Control: | ArtNet |
| Display type: | OLED display |
| Control elements: | Encoder |
| Status LED: | Signal, link |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| PC connect: | Via RJ-45 (F) mounting version |
| Housing design: | Desktop console housing 1 U
(19") 48.3 cm rack installation (optional) |
| Dimensions: | Width: 20 cm
Depth: 9,8 cm
Height: 4,1 cm |
| Weight: | 850 g |
