70064810
92,81 €

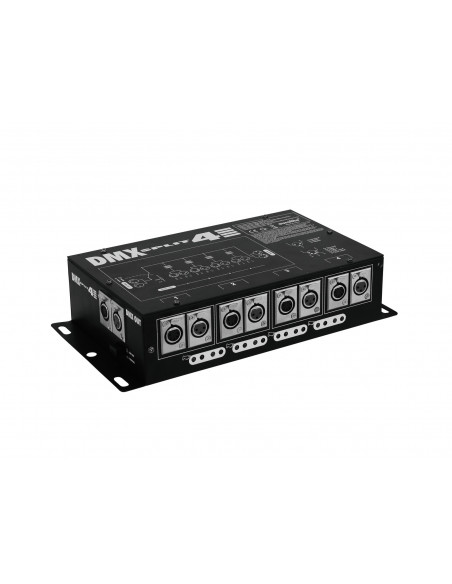

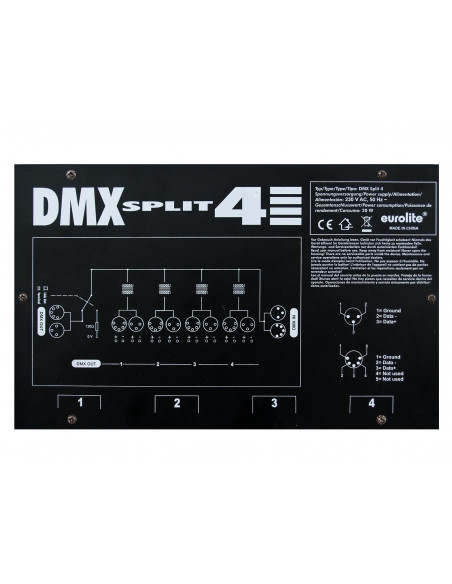

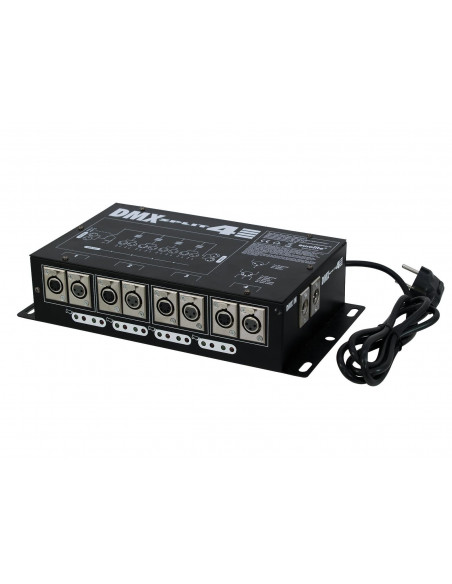

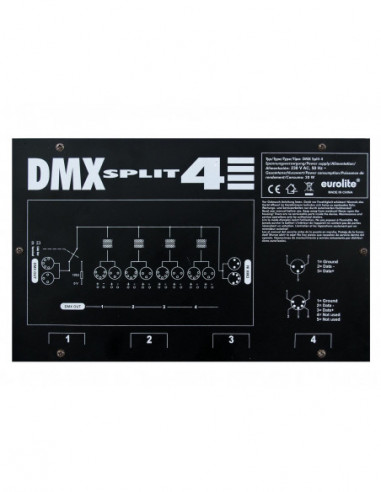

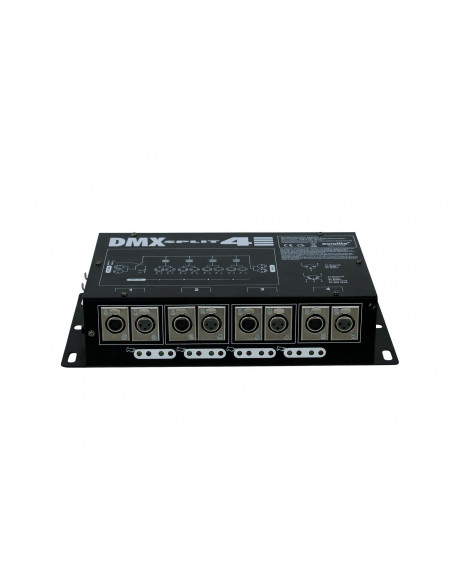

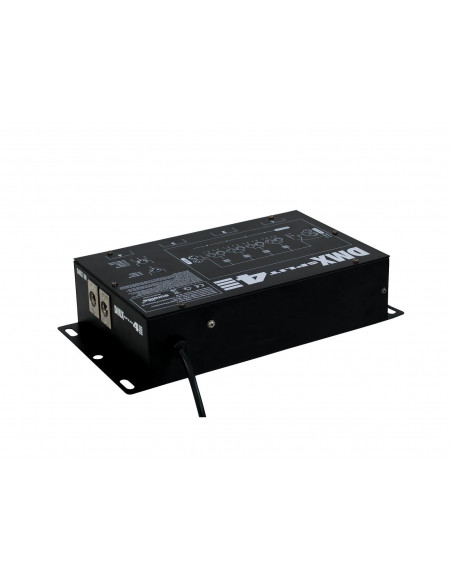

Splitter with 4 galvanically isolated outputs, 3-pin & 5-pin XLR sockets

  • DMX splitter for splitting one DMX input signal to 4 DMX outputs
  • Connections: 1 x DMX input, 1 x DMX feed-through output, 4 x DMX output
  • Input and outputs galvanically isolated
  • Connections XLR 3-pin and 5-pin
  • Each DMX output with independent driver and status indicators
  • Input and outputs with a set of respective power supply and internal fuse
  • Switchable termination resistor


Power supply:230 V AC, 50 Hz
Power consumption:20 W
Power connection:Fixed power supply cord with safety plug
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass
Control elements:Bypass/terminating resistor Schalter, power switch
Dimensions:Width: 32,5 cm
Depth: 19 cm
Height: 8 cm
Weight:2,33 kg
