The easy way...The EUROLITE DMX LED Operator 4 is a DMX controller especially designed for the EUROLITE LED spots and LED effects with 5 DMX channels plus KLS series, LED BAR RGB and a smoke-machine.This controller features pre-programmed presets and colors, which can easily be displayed by pressing one button. Save your precious time for programming the individual DMX channels in order to display this color or that color.
Simple controller for 4 RGB spotlights as well as RGB KLS systems
- 50 control channels only suitable for matching LED effects
- 4 LED parcans can be controlled individually
- Select color mode for choosing single colors
- Built-in programs
- Auto mode for running all programs
- Pause function
- Blackout function
- LCD and control LEDs display current operating mode
- Program select fader for selecting the internal programs
- Speed fader for adjusting the program speed
- Strobe-effect with adjustable speed
- Additional fogger button for direct control of a DMX smoke machine (CH-49/50)
- Robust metal housing with mounting flange

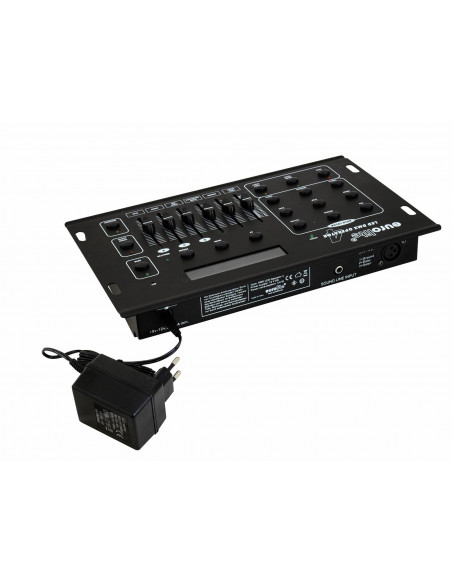

- Operation via included power adapter
- Can transmit up to 50 DMX channels
- Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
- Desktop console housing
| Power supply: | 230 V AC, 50 Hz
9-12 V DC 300 mA |
| Power consumption: | 4,00 W |
| IP classification: | IP20 |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| DMX channels: | Output 50 |

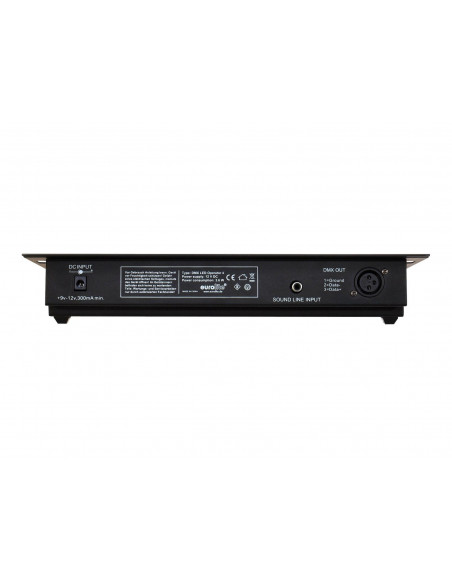

| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version |
| Housing color: | Black |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 32 cm
Depth: 19 cm
Height: 6 cm |
| Weight: | 1,55 kg |
