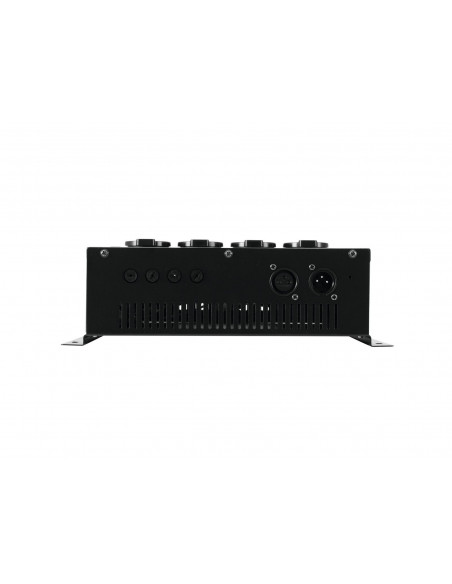

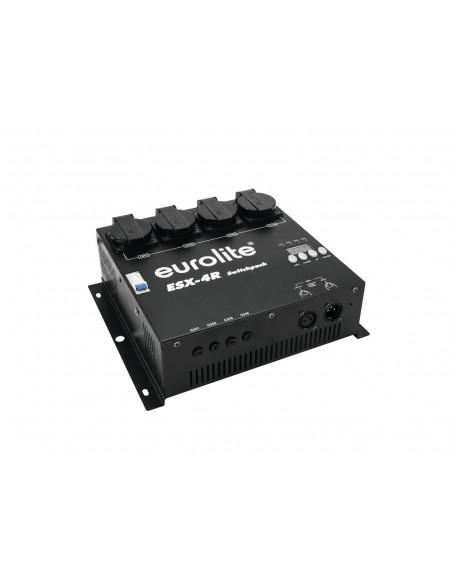

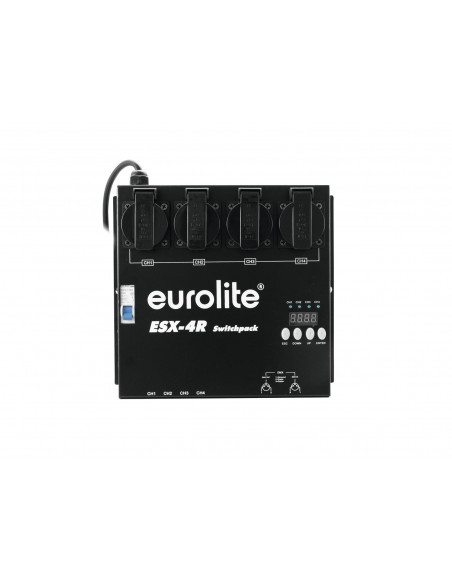

EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack
EUROLITE ESX-4R DMX RDM Switch Pack

EUROLITE ESX-4R DMX RDM Switch Pack

70064224
112,97 €




4-channel DMX switch pack, up to 5 A load per channel, control per Triac

  • 4 controllable channels
  • 5 A resistive load per channel
  • Maximum current 16 A
  • Outputs via 4 safety sockets
  • LED display of all channels
  • DMX512 input and output
  • With Control Board for programming scenes and chasers
  • Robust metal housing with mounting flange
  • Can be operated in 4 CH mode
  • Controlling by stand-alone; DMX; RDM


Power supply:230 V AC, 50 Hz
Output power:Max. 3680 W
Max. 1150 W per channal
Output current:Max. 16 A
Power connection:Fixed power supply cord with safety plug
Power output:4 x Safety contact (F), mounting version
DMX channels:4
DMX input:3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Control:Stand-alone; DMX; RDM
Control channels:4
Display type:4 digits 7-segment LED display
Color:Black
Dimensions:Width: 27 cm
Depth: 26 cm
Height: 9,5 cm
Weight:2,53 kg
