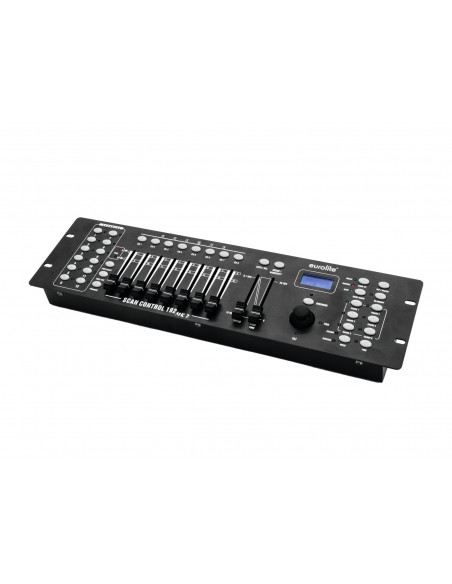

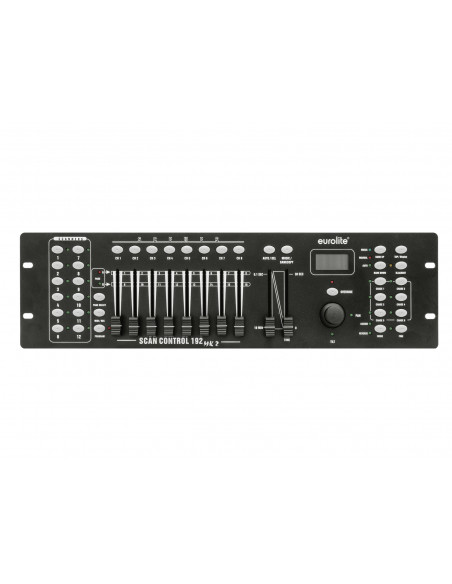

Console for 12 lighting effect units with up to 16 DMX channels, joystick
- DMX controller for 12 lighting effect units such as moving heads, scanners and LED spot lights
- USB port for storing program data
- Manual, time-controlled or sound-controlled chase running mode
- Fade between scenes adjustable between 0-30 s
- Copy function for scenes and banks
- 2 DMX fixture levels can be controlled
- 8 DMX channel faders

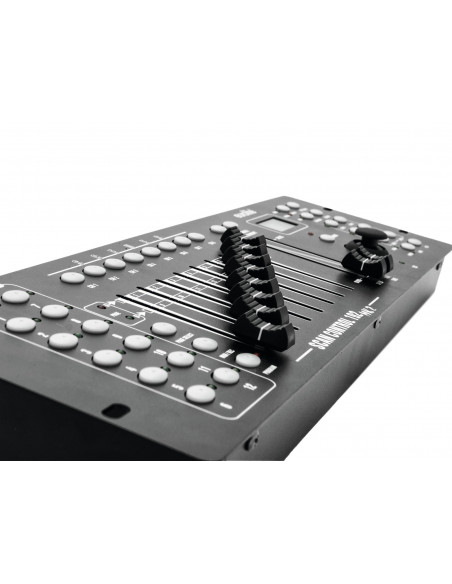

- 1 joystick for precise adjustment of pan/tilt
- Button for fine tuning of pan/tilt
- Blackout function
- Backlit LC display
- MIDI control for banks, chases and blackout
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Rack installation, 3 U
- Programmable 6 chasers each with max. 240 scenes
- Programmable 30 sequencens each with max. 8 scenes
- Can transmit up to 192 DMX channels
- Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version
- (19") 48.3 cm rack installation 3 U
| Power supply: | 100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Programs: | Programmable 6 Chasers
Each with max. 240 Scenes
Programmable
30 Sequences
Each with max. 8 Scenes |
| DMX channels: | Output 192 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Mounting depth: | 170 mm |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm
Depth: 13 cm
Height: 8,9 cm |
| Weight: | 2,30 kg |
