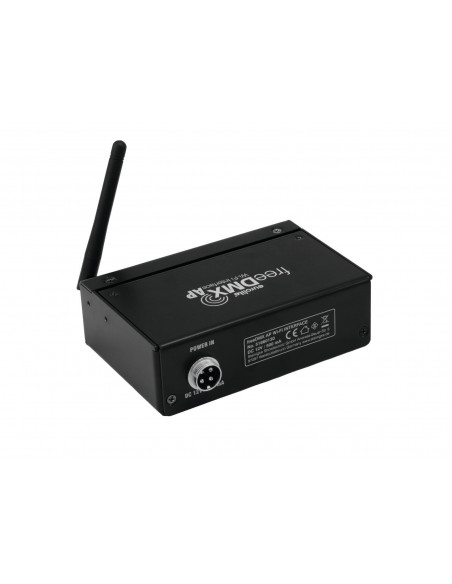

Wireless WLAN DMX interface for apps & programs like Steinigke Light'J
- WLAN DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iPad and Android tablets
- Control your DMX fixtures more flexible than ever with the Steinigke Light'J app
- Light'J now also supports DMX fixtures of all manufacturers
- The app's online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- Light'J is available for free from the play store and app store and is optimized for tablets from 7"
- Configuration via integrated webserver
- Access point and infrastructure mode
- WLAN standard IEEE802.11b/g/n

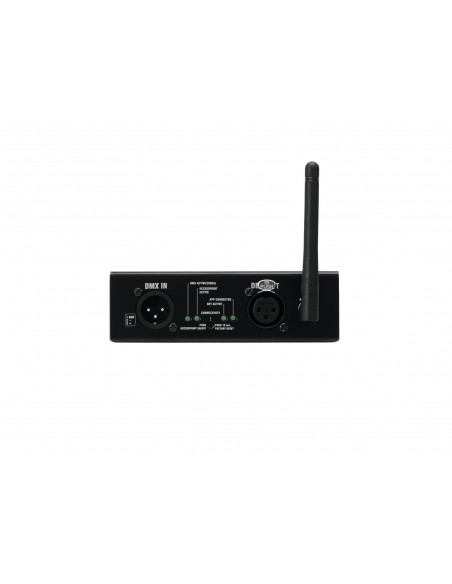

- 3-pin XLR connectors for DMX IN/DMX OUT (Neutrik)
- DMX feed-through capability
- LED status indicators

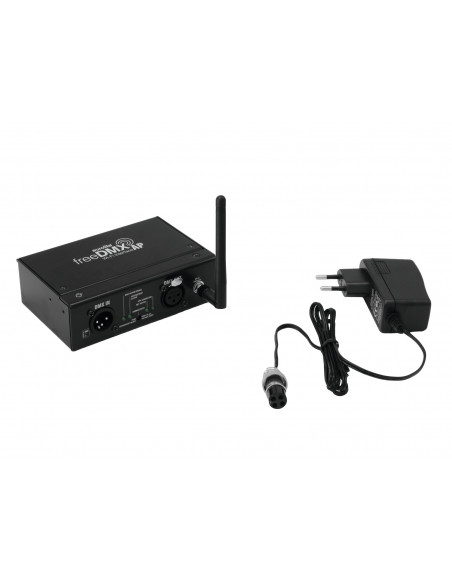

- Operation via included power adapter
- Works with FreeStyler
- Works with DMXControl

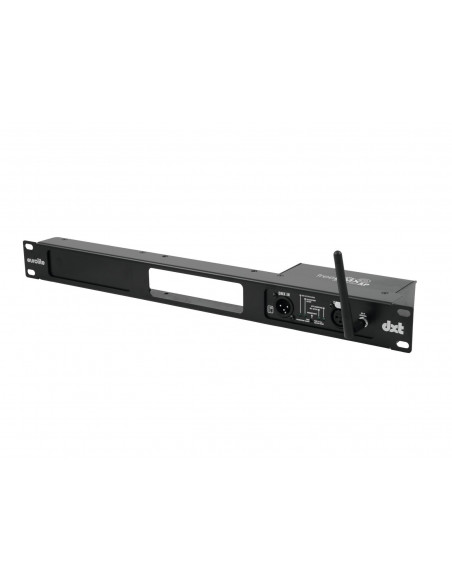

- Rack mounting kit available as an option (item 70064872)
- Can transmit up to 512 DMX channels
- Controlling by DMX; Light´J app; W-Lan
- Use a operating range up to 60m in the open air
- Use a operating range up to 30m in buildings
- Built with NEUTRIK connector
- Made in Germany

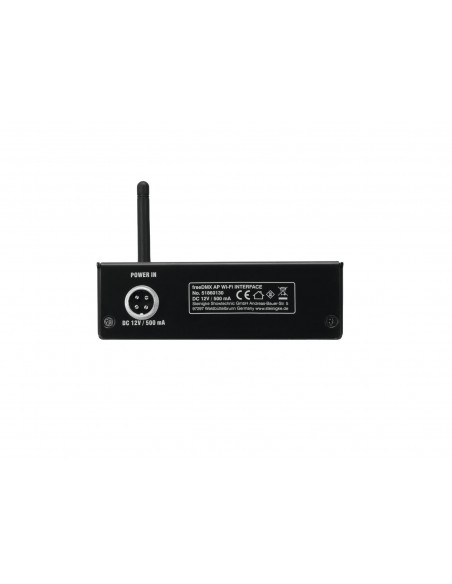

| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| IP classification: | IP20 |
| WiFi: | Standard: IEEE 802.11 b/g/n |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Light´J app; W-Lan |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 2 dBi |
| Range: | 60 m in the open air
30 m in buildings |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Dimensions: | Width: 13 cm
Depth: 11,5 cm
Height: 4,1 cm |
| Weight: | 650 g |
