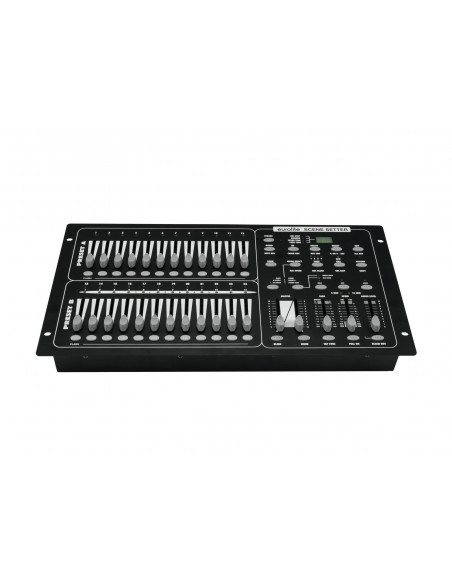

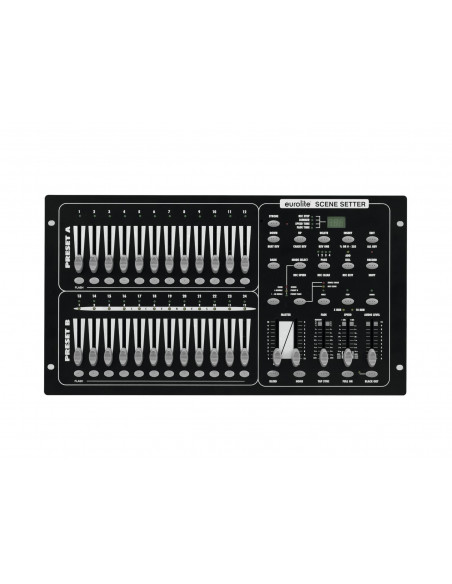

EUROLITE DMX Scene Setter Controller

Referência 70064540

178,75 €

Theater light console for 24 DMX channels, brightness control for each scene

12 scenes can be called up directly via the faders
Blackout function
Mix and single chase function
Blind/home function
Supports standard MIDI
3-pin XLR connector with polarity selector
Footswitch control possible
Desktop console
Rack installation, 6 U
Programmable 48 chasers 12 scenes
Can transmit up to 24 DMX channels
Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
With extra large installation depth
(19") 48.3 cm rack installation 6 U

Power supply:	230 V AC, 50 Hz 12 V DC 500 mA
Power consumption:	4,00 W
IP classification:	IP20
Protection class:	Class III

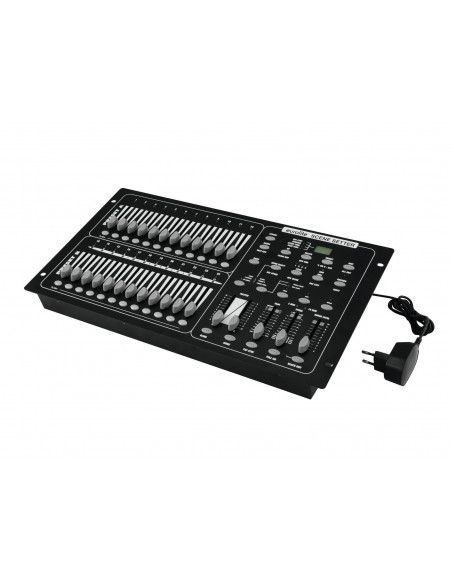

Power connection:	Mains input Coaxial power connector (M) power supply cord with AC adapter (provided)
Programs:	Programmable 48 Chasers 12 Scenes
DMX channels:	Output 24

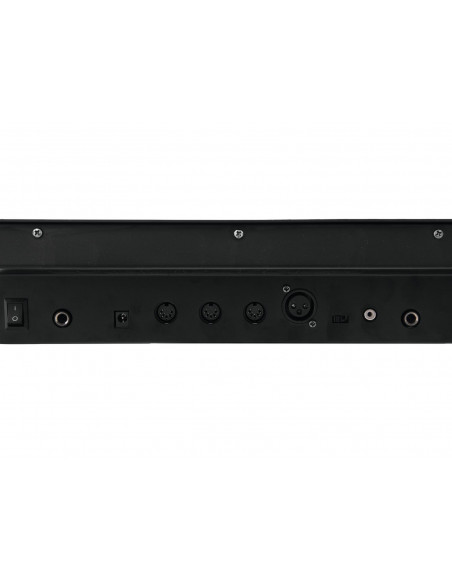

DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
Housing color:	Black
Control elements:	DMX polarity selector, power switch
Color:	Black
Mounting depth:	80 mm
Housing design:	(19") 48.3 cm rack installation 6 U
Dimensions:	Width: 48,3 cm Depth: 26,4 cm Height: 8,9 cm
Weight:	4,30 kg
