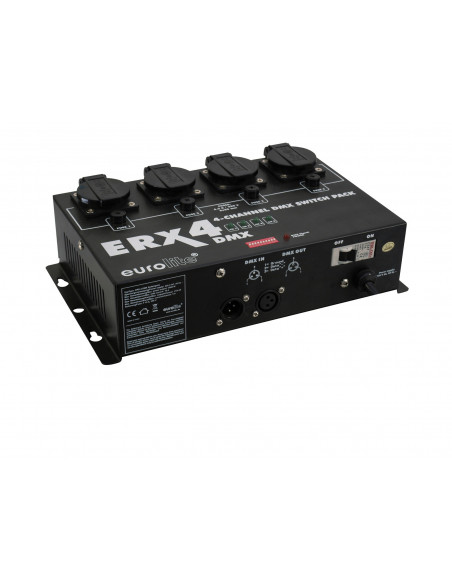

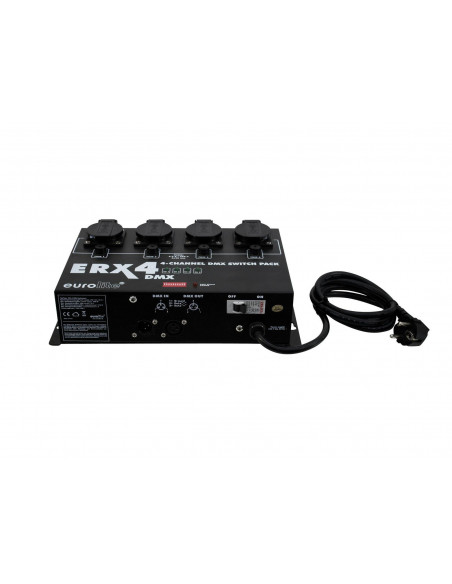

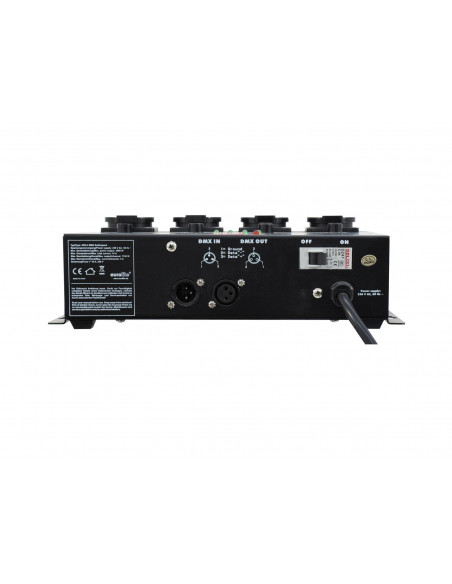

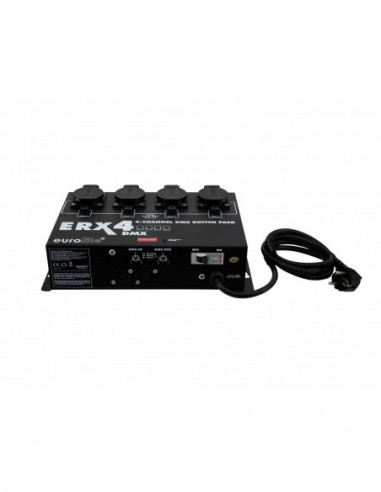

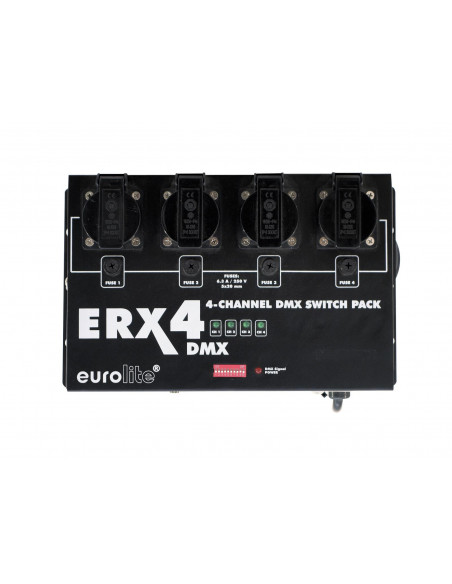

4-channel switch pack, up to 5 A load per channel, control with relay
- Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
- 4 controllable channels
- LED indicator per channel
- 5 A load per channel
- Maximum current 16 A
- Outputs via 4 safety sockets
- DMX512 input and output
- DMX starting address adjustable via DIP switches
- Robust metal housing with mounting flange
- Can be operated in 4 CH mode
- Controlling by stand-alone; DMX
Power supply: | 230 V AC, 50 Hz |
Output power: | Max. 3680 W Max. 1150 W per channal |
Output current: | Max. 16 A |
Power connection: | Fixed power supply cord with safety plug |
Power output: | 4 x Safety contact (F), hinged lid mounting version |
DMX channels: | 4 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Control: | Stand-alone; DMX |
Control channels: | 4 |
Color: | Black |
Dimensions: | Width: 30 cm Depth: 19 cm Height: 8,5 cm |
Weight: | 2,51 kg |
