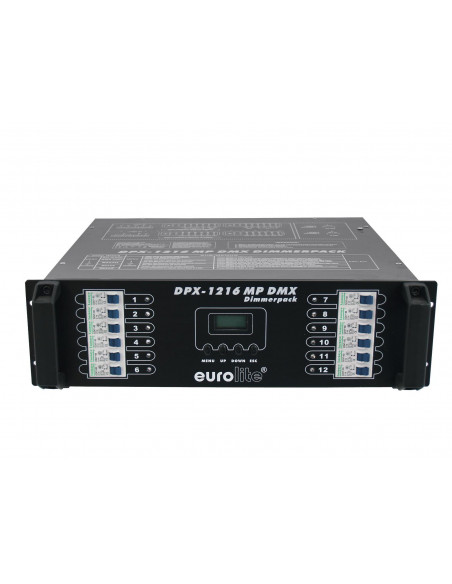

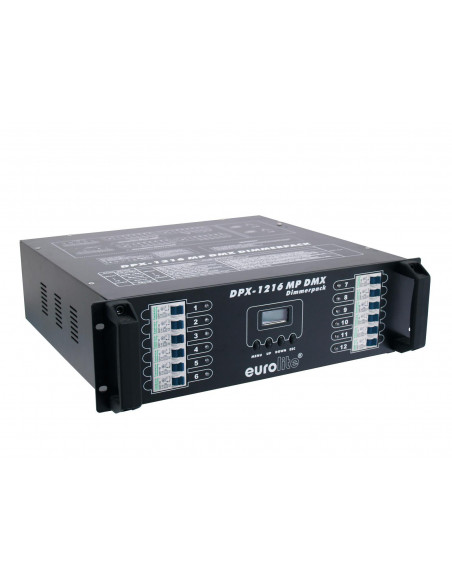

12 x 16A dimmer, service friendly modules, two 16-pin multipin sockets
- Universal dimmer pack for professional use
- Can be operated 1-phase or 3-phase
- 12 x 16 A
- The DMX-starting address can be adjusted on the device for each channel individually
- Synchronization of several devices possible via DMX
- Each channel can either be dimmed or switched
- Adjusting the lamp pre-heat for the dimmed channels
- All modes are displayed on the display
- With automatic circuit breaker per channel

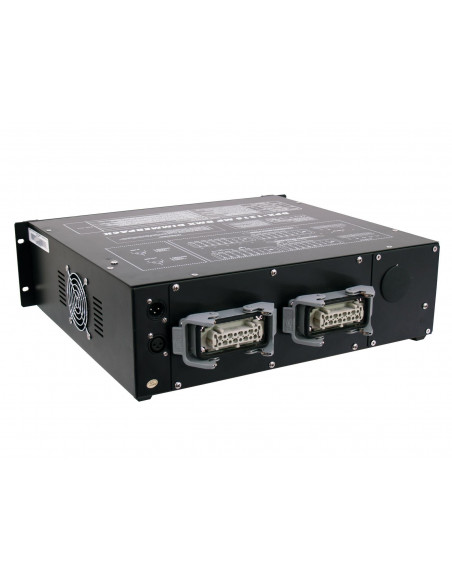

- Outputs via two industrial sockets
- Only for professional use
- Preprogrammed 12 chasers
- Can be operated in 12 CH mode
- Controlling by stand-alone; DMX
- (19") 48.3 cm rack installation 3 U
Power supply: | 230/380 V AC, 50 Hz |
Protection class: | Class I |
Output power: | Max. 44160 W Max. 3680 W per channal |
Output current: | Max. 192 A |
Power connection: | Mains input screw terminal |
Power output: | 2 x 16-pin multi-pin (F) fitted version |
Power output fuse per channel: | C 16 A Fuse resettable |
Programs: | Preprogrammed 12 Chasers |
DMX channels: | 12 |
Control: | Stand-alone; DMX |
Control channels: | 12 |
Color: | Black |
Housing design: | (19") 48.3 cm rack installation 3 U |
Dimensions: | Width: 48,3 cm Depth: 55 cm Height: 13,35 cm |
Weight: | 11,70 kg |
