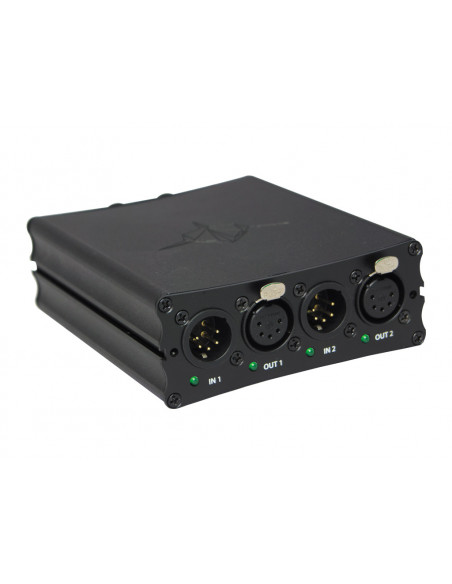

RDM/DMX Streaming device. 2 input 2 output. Compatible with LightShark
2 entradas y 2 salidas RDM/DMX.
Conversor Ethernet-RDM/DMX bidireccional.
Puertos configurables independientemente.
Modo merger HTP/LTP.
Modo Backup.
Soporta sACN, ArtNet/RDM/DMX.
Switch Ethernet integrado.
DMX frame rate configurable.
Alimentación PoE.
Formato 1/4 rack 19''.
Mais Informação

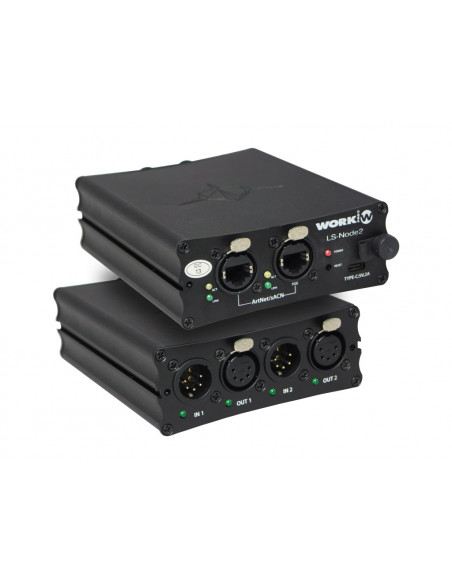

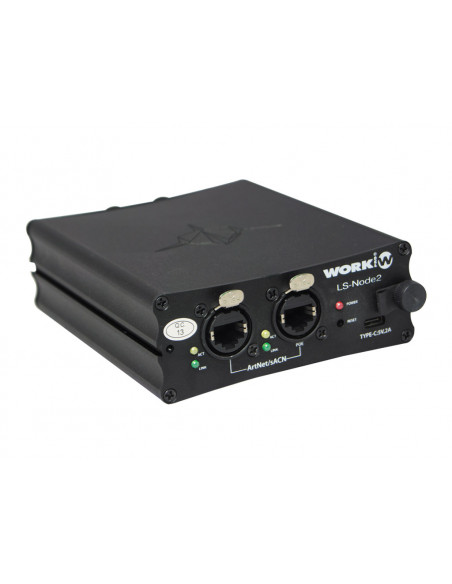

The LS-Node series is the new RDM/DMX streaming range from WORK PRO that supports industry standards ArtNet & sACN. They feature from 1 up to 4 DMX universes, with 3 different models: LS-Node1, LS-Node2 & LS-Node4, each of which adds its respective number of freely configurable DMX universes.
These small LS-Node products are available in the same quarter-rack physical format as the original LS-Core, are powered via a compact USB-C connector or by PoE, which is helpful when used in installations where they may be rack-mounted with an optional LS-AR 19 rack chassis.
All LS-Node products come with an integrated Ethernet switch with 2 ports and are multiprotocol, supporting the industry standards ArtNet and sACN.
LS-Node is fully compatible with LightShark consoles and can also be configured via a webserver, through which users can set up parameters like DMX frame rate (from 15 to 40 frames/s), firmware upgrades, independent RDM/DMX ports routing (any universe can be routed to any of the RDM/DMX ports independently) and modes of use.
With ArtNet/RDM compatibility, LS-Node allows configuration, status monitoring and management of remote devices from lighting consoles.
All the models feature several modes of use:
- Single Mode: DMX to ArtNet/sACN transceiver (LS-Node1 & LS-Node2 models) configurable via web.
- Merger mode: where the LS-Nodes can receive different universes (via ArtNet/sACN or DMX) and merge them in the same output, being able to select HTP/LTP merge modes.
- Backup mode: When LS-Node works in Backup mode with two consoles connected, the device can detect a loss of connection from the primary console and automatically switch to the backup console with a max latency of 3 seconds.
