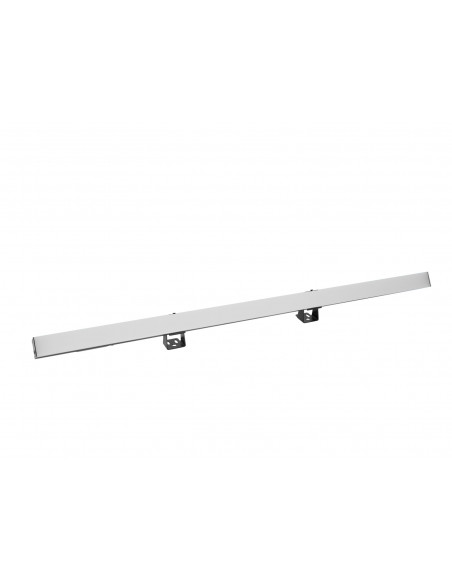

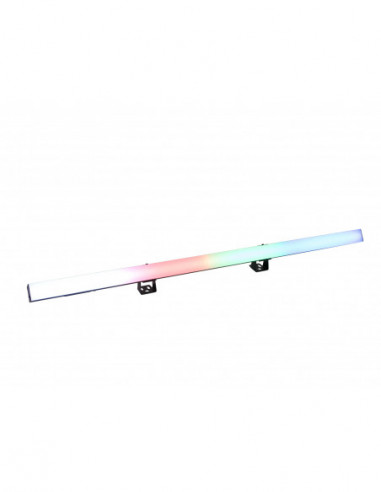

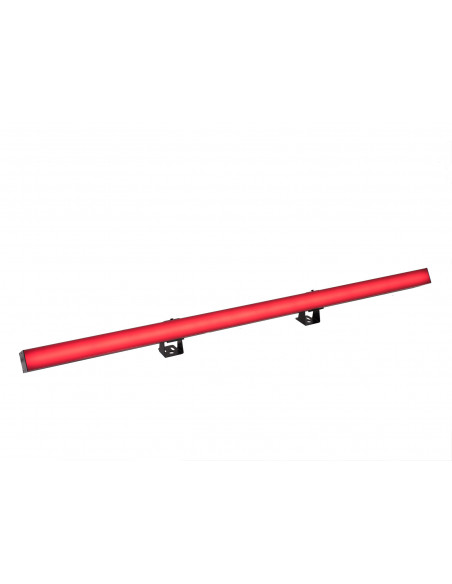

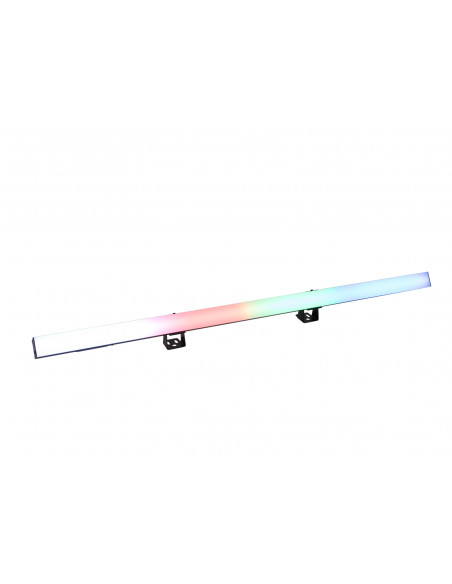

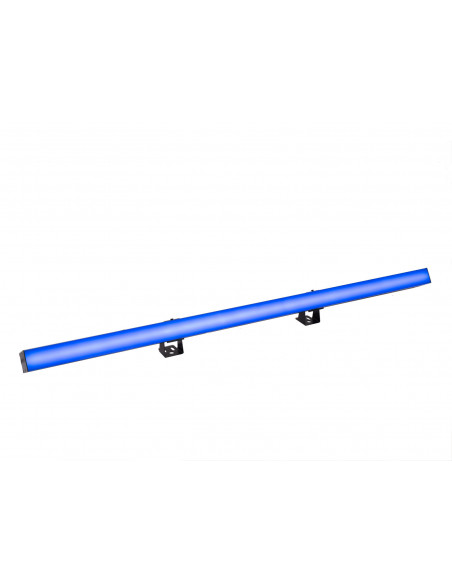

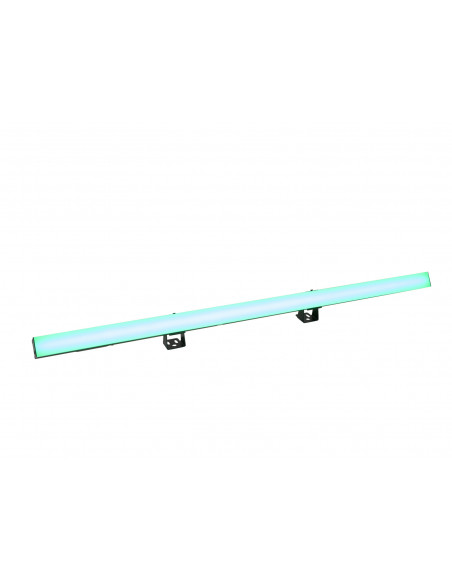

DMX controlled pixel tube with RGB color mixing
- 96 high-power RGB LEDs (3in1) with wide beam angle
- 32 individually controllable pixels (illumination units with 3 LED each)
- Auto, music, master/slave and DMX mode
- 12 built-in auto and music show programs
- Stepless color blend, color change and preset colors
- Electronic dimmer (0-100%)
- Direct color selection for 17 preset colors
- DMX and power terminals intelligently designed for easy wiring
- Control panel with LED display for easy configuration
- Rugged metal housing with swivel mounting brackets
- Front cover: black
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Can be operated in 3; 5; 8; 48; 96 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Sound to light via Microphone
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 20 Hz |
| DMX channels: | 3; 5; 8; 48; 96 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; Sound to light via Microphone |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Length: 99,9 cm
Width: 5,95 cm
Height: 13,2 cm |
| Weight: | 2,10 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
