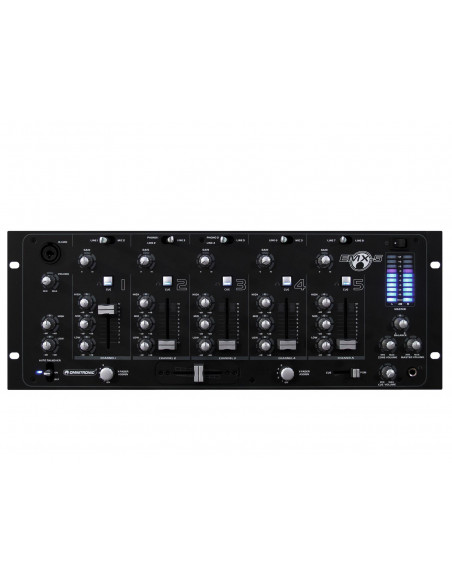

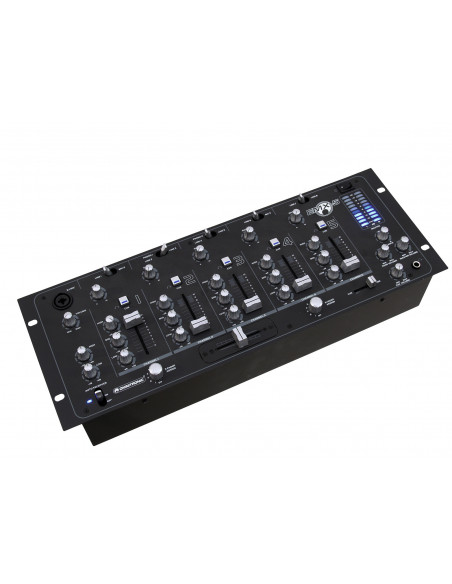

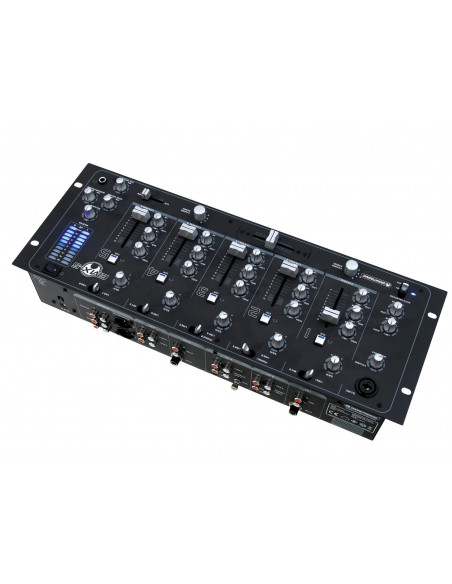

Reliable mixer at a low priceThis 5 channel club mixer meets the expectations of a straightforward and reliable mixer. But in comparison to many competitors, it offers a clear price advantage with almost identical equipment and the same quality. The mixer's features are convincing: the 5 input channels are equipped with a gain, 3-band equalizer, a cue button and high-quality, smooth-running faders. In addition there is a microphone channel with talkover switch, volume control and 2-band equalizer. The mixer has a replaceable crossfader and a 10-digit LED level meter for the master output.
Low-price 5-channel club mixer
- 5 channels with gain control, 3-band equalizer, cue button and super-smooth channel faders
- 1 DJ microphone channel with talkover selector, level control and 2-band equalizer
- Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output
- Replaceable crossfader for crossfading between input channels with assignment switches
- 10-digit stereo LED level meter, master level control, and balance level control
- Adjustable zone output, and record output, independent of the master
- Inputs: 6 x line (stereo RCA), 2 x phono/line (stereo RCA), switchable; 2 x microphone (6.3 mm jack), 1 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
- Outputs: master (3-pin XLR, stereo RCA), zone and record (both stereo RCA)
- Operation via supplied power unit
- Rack installation, 4 U
- (19") 48.3 cm rack installation 4 U
| Power supply: |
100-240 V AC, 50/60 Hz
9 V DC 1 A |
| Power consumption: |
30,00 W |
| Power connection: |
Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>80 dB |
| THD: |
<0,02 % at 1 kHz |
| Impedance: |
Input Microphone: 1 kOhm
Input line: 27 kOhm
Input phono: 47 kOhm |
| Gain: |
Input: variable |
| Control elements: |
Power switch, source selector, Crossfader, Crossfader selector switch, Talk over |
| Status LED: |
Master level meter, CUE, Talk over |

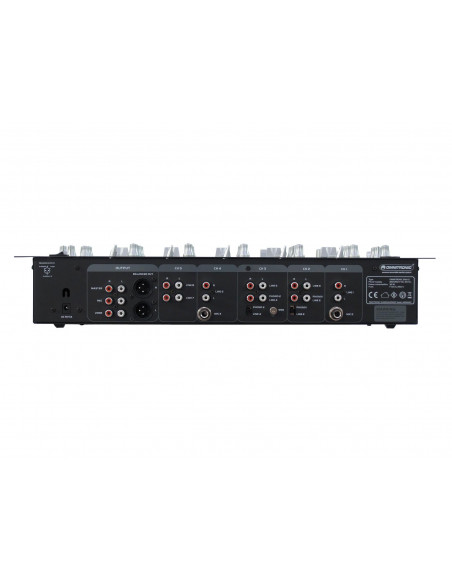

| Connections: |
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: Microphone via 2 x 6.3 mm jack socket (mono) mounting version
Input: line via 6 x stereo RCA
Input: line/phono via 2 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: zones via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: |
Microphon chanal: 1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 2-band tone control EQ, gain control, Talk over switch,
Input chanel: 2 x mono + stereo with Mic-line switch via RCA or jack plug, channel control via fader, 3-band tone control EQ, gain control, CUE switch,
Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch,
Input chanel: 1 x stereo with Line-line switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch,
Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial, balancecontrol,
Zone output: 1 x stereo via RCA, channel control via Rotary dial, Cue-mix-function,
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Housing design: |
(19") 48.3 cm rack installation 4 U |
| Dimensions: |
Width: 48,3 cm
Depth: 17,9 cm
Height: 8,9 cm |
| Weight: |
3,70 kg |
