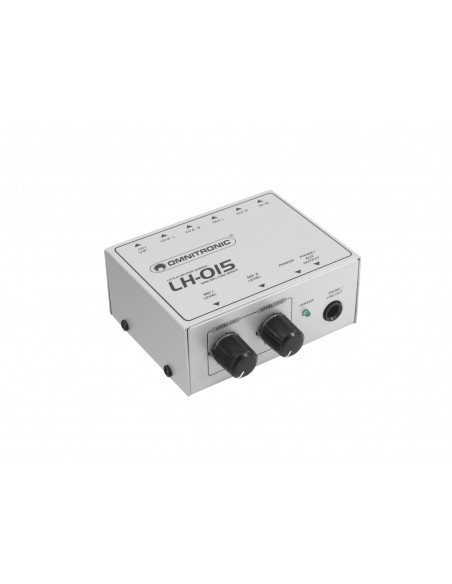

2-channel miniature mic/line mixer
- Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
- 1 mono mic/line input (6.3 mm jack) with separate level control
- 1 stereo line input (RCA) input with separate level control
- 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones

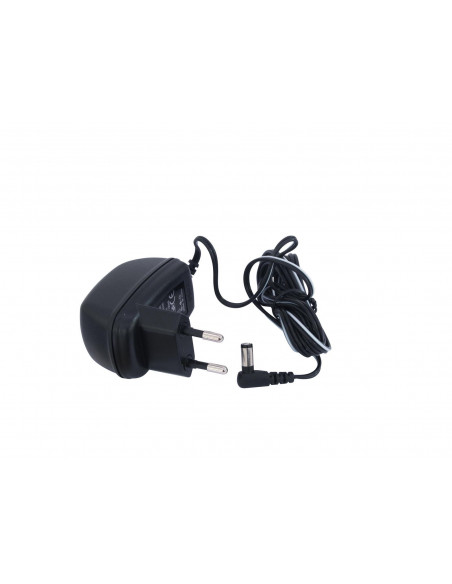

- Operation via supplied power unit
Power supply: | 12 V DC 150 mA |
Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
Frequency range: | 20 - 20000 Hz |
S/N ratio: | >100 dB |
Impedance: | Input Microphone: 10 kOhm Input line: 20 kOhm Output 50 Ohm |
Gain: | Microphone 32 dB Line 20 dB |
Dimensions: | Width: 9,5 cm Depth: 7,3 cm Height: 4 cm |
Weight: | 500 g |
