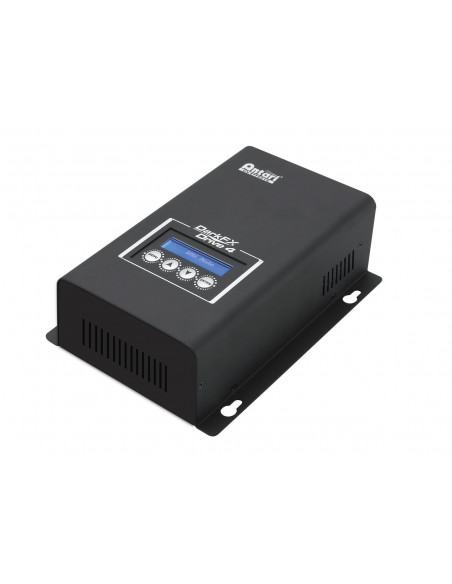

The Antari DarkFX Drive 4 is a compact driver exclusively designed for the Antari DarkFX high-power UV fixtures. Equipped with 4 bare wire terminal blocks for up to 4 fixtures, it can be used to adjust dimmer brightness and strobe speed.The DarkFX Drive 4 is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.
DMX control unit for a total of 4 Antari DarkFX Strips or DarkFX Spots
- For DarkFX Strip 510 and DarkFX Spot 510 IP
- Strobe effect 0-20 Hz
- Various dimmer curves adjustable
- Terminal blocks support four fixtures
- Control panel with LC display for easy configuration

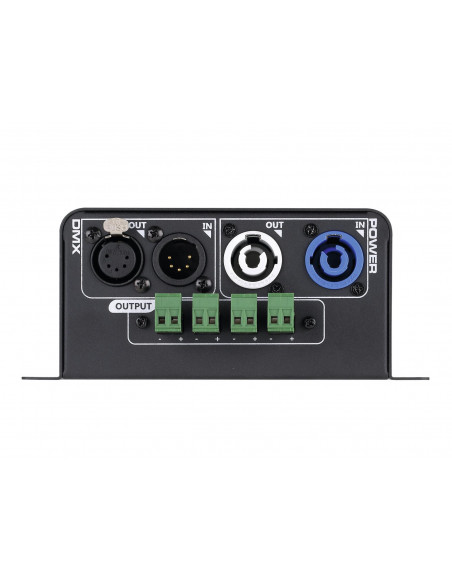

- PowerCon input and output
- Can be operated in 2 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray) |
| DMX channels: | 2 |
| DMX input: | 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 5-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX |
| Housing color: | Black |
| Material: | Metal |
| Dimensions: | Width: 13,5 cm
Depth: 21,6 cm
Height: 7,2 cm |
| Weight: | 1,81 kg |
