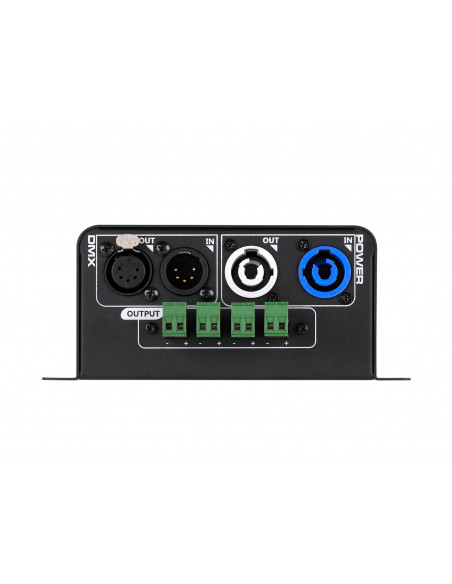

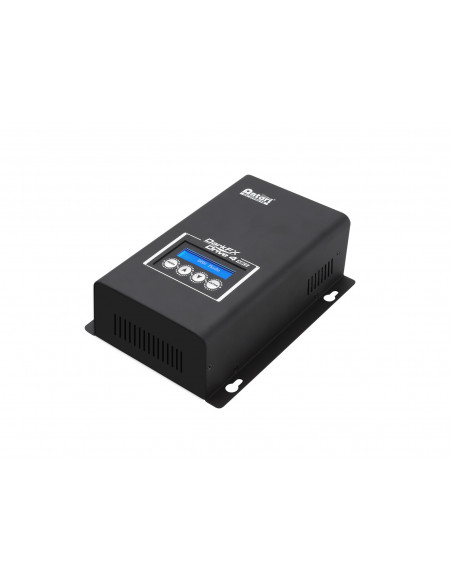

The Antari DarkFX Drive 4 MKII is a compact driver exclusively designed for the Antari DarkFX high-power UV fixtures. Equipped with 4 bare wire terminal blocks for up to 4 fixtures, it can be used to adjust dimmer brightness and strobe speed.The DarkFX Drive 4 MKII is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors (with RDM support) or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.
DMX control unit for a total of 4 Antari DarkFX Strips or DarkFX Spots
- For DarkFX Strip 510, 1020 and DarkFX Spot 510 IP
- Strobe effect 0-20 Hz
- Various dimmer curves adjustable
- Terminal blocks support four fixtures
- Control panel with LC display for easy configuration
- PowerCon input and output
- Can be operated in 2 CH mode
- The device is cooled by passive convection
- Controlling by RDM; DMX; stand-alone
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 75 W |
IP classification: | IP20 |
DMX channels: | 2 |
DMX input: | 1 x 5-pin XLR (M) mounting version |
DMX output: | 1 x 5-pin XLR (F) mounting version |
Cooling: | Passive convection |
Control: | RDM; DMX; stand-alone |
Housing color: | Black |
Dimensions: | Width: 16,7 cm Depth: 21,1 cm Height: 7 cm |
Weight: | 1,77 kg |
