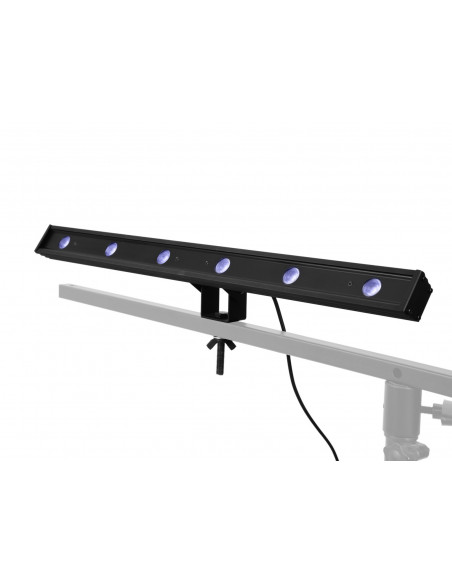

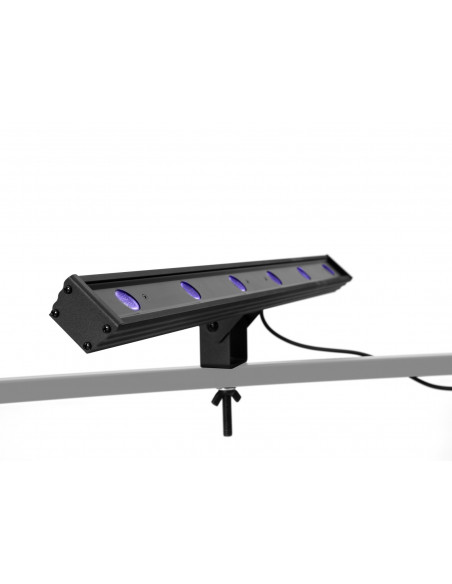

The Antari DarkFX Strip 510 is an efficient high-output and low-power consumption UV LED bar that delivers a peak wavelength of 365nm and radiant flux output of 4500 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 6 x 1.9 W high-power UV LEDs, it features a 25° narrow beam angle, flicker-free operation, and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED bar comes with an aluminium housing with an adjustable bracket for versatile mounting options.The Antari DarkFX Drive 4 or Drive 4 MKII fixture driver (sold separately) is required for power and DMX control.
PRO UV LED bar with 6 x 1.9 W UV LED, deep UV wavelength (365 nm)
- High-efficiency UV LED
- Peak wavelength at 365 nm
- Minimum visible light
- High output at full intensity
- Special optics will not degrade due to high UV exposure
- Narrow beam angle
- Power supply and DMX control via optional Antari DarkFX Drive 4 fixture driver
- Bare cable ends
- LED: 6 x high-power 1,9 W ultra violet (UV)
- The device is cooled by passive convection
- Flicker-free projection
- Effect: UV effect
| Power supply: | 20-24 V DC |
| Power consumption: | 12 W |
| IP classification: | IP20 |
| Power connection: | Fixed Supply cord with open wires |
| Lamp type: | LED lamp |
| LED: | 6 x high-power 1,9 W ultra violet (UV) |
| Cooling: | Passive convection |
| Beam angle: | 25° |
| Beam angle (1/2 peak): | 25° |
| Wavelength: | 365 nm |
| Housing color: | Black |
| Material: | Metal |
| Dimensions: | Width: 59,3 cm
Depth: 7,4 cm
Height: 7,2 cm |
| Weight: | 1,12 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
