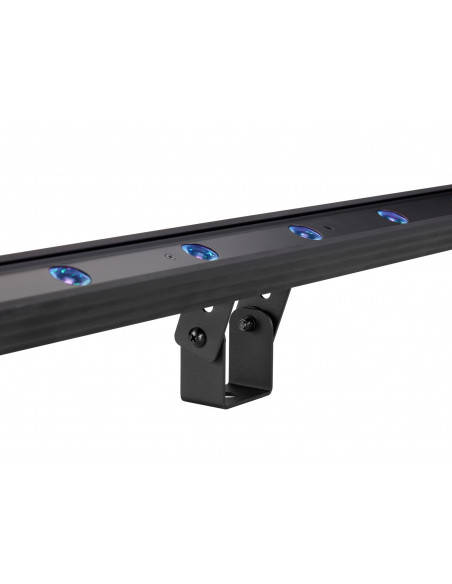

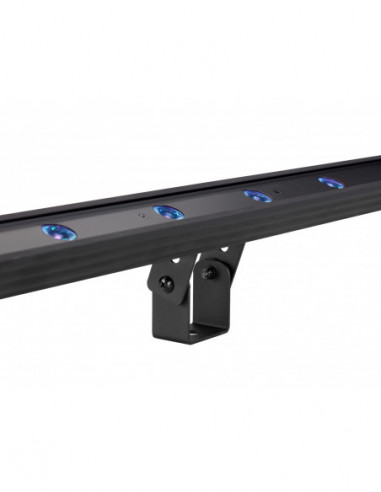

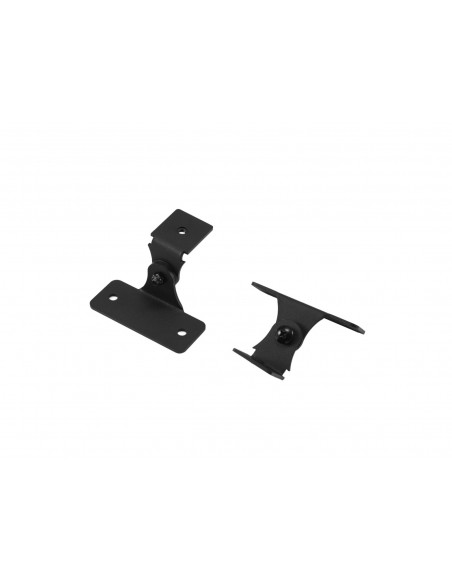

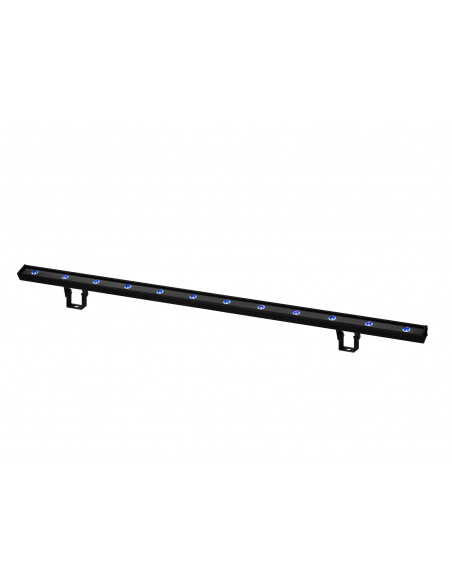

The Antari DarkFX Strip 1020 is an efficient high-output and low-power consumption UV LED bar that delivers a peak wavelength of 365 nm and radiant flux output of 9000 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 12 x 1.9 W high-power UV LEDs, it features a 40° beam angle, flicker-free operation and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED bar has been designed for indoor use only and comes with an aluminium housing with an adjustable bracket for versatile mounting options. The Antari DarkFX Drive 4 or Drive 4 MKII fixture driver (sold separately) is required for power and DMX control.
PRO UV LED bar with 12 x 1.9 W UV LED, deep UV wavelength (365 nM)
- High-efficiency UV LED
- Peak wavelength at 365 nm
- Minimum visible light
- High output at full intensity
- Special optics will not degrade due to high UV exposure
- Power supply and DMX control via optional Antari DarkFX Drive 4 MK2 fixture driver
- Bare cable ends
- LED: 12 x high-power 1,9 W ultra violet (UV)
- The device is cooled by passive convection
- Controlling by system controller (not included)
- Effect: UV effect
| Power supply: | 48 V DC 500 mA |
| Power consumption: | 24 W |
| IP classification: | IP20 |
| Lamp type: | LED lamp |
| LED: | 12 x high-power 1,9 W ultra violet (UV) |
| Cooling: | Passive convection |
| Control: | System controller (not included) |
| Beam angle: | 40° |
| Beam angle (1/2 peak): | 40° |
| Wavelength: | 365 nm |
| Housing color: | Black |
| Dimensions: | Width: 3 cm
Depth: 1,1932 m
Height: 10 cm |
| Weight: | 2,24 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
