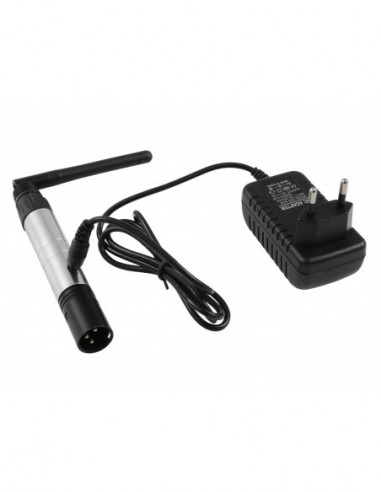

Compact wireless DMX transmitter 2.4 GHz

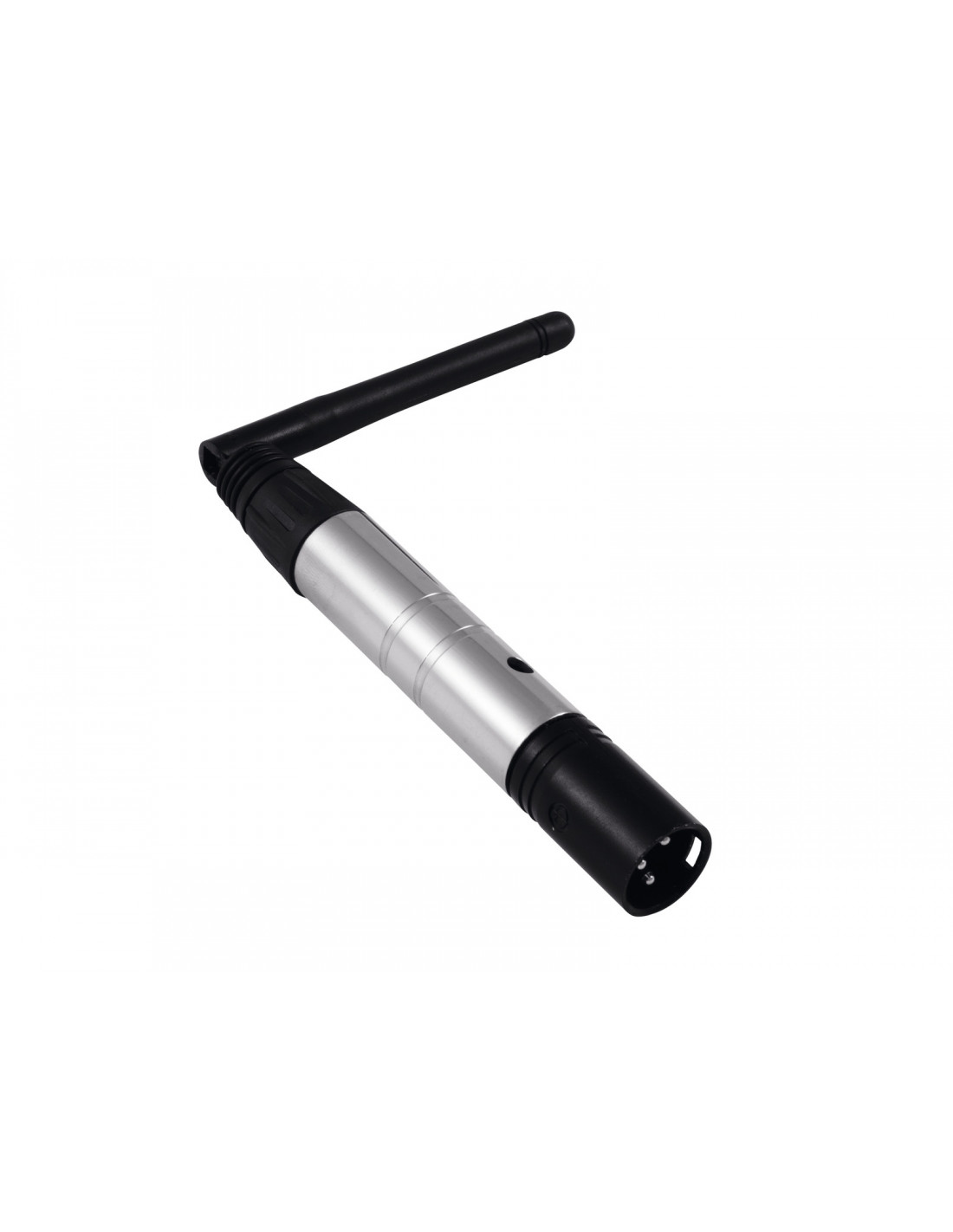

- User-friendly 3-pin XLR plug (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Operation via included power adapter
- 2.4 GHz - license-free worldwide
- Can transmit up to 512 DMX channels
- Controlling by QuickDMX built-in; DMX
- Use a operating range up to 400m
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX built-in; DMX |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | 400 m |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm
Diameter: Ø 1,8 cm |
| Weight: | 150 g |
