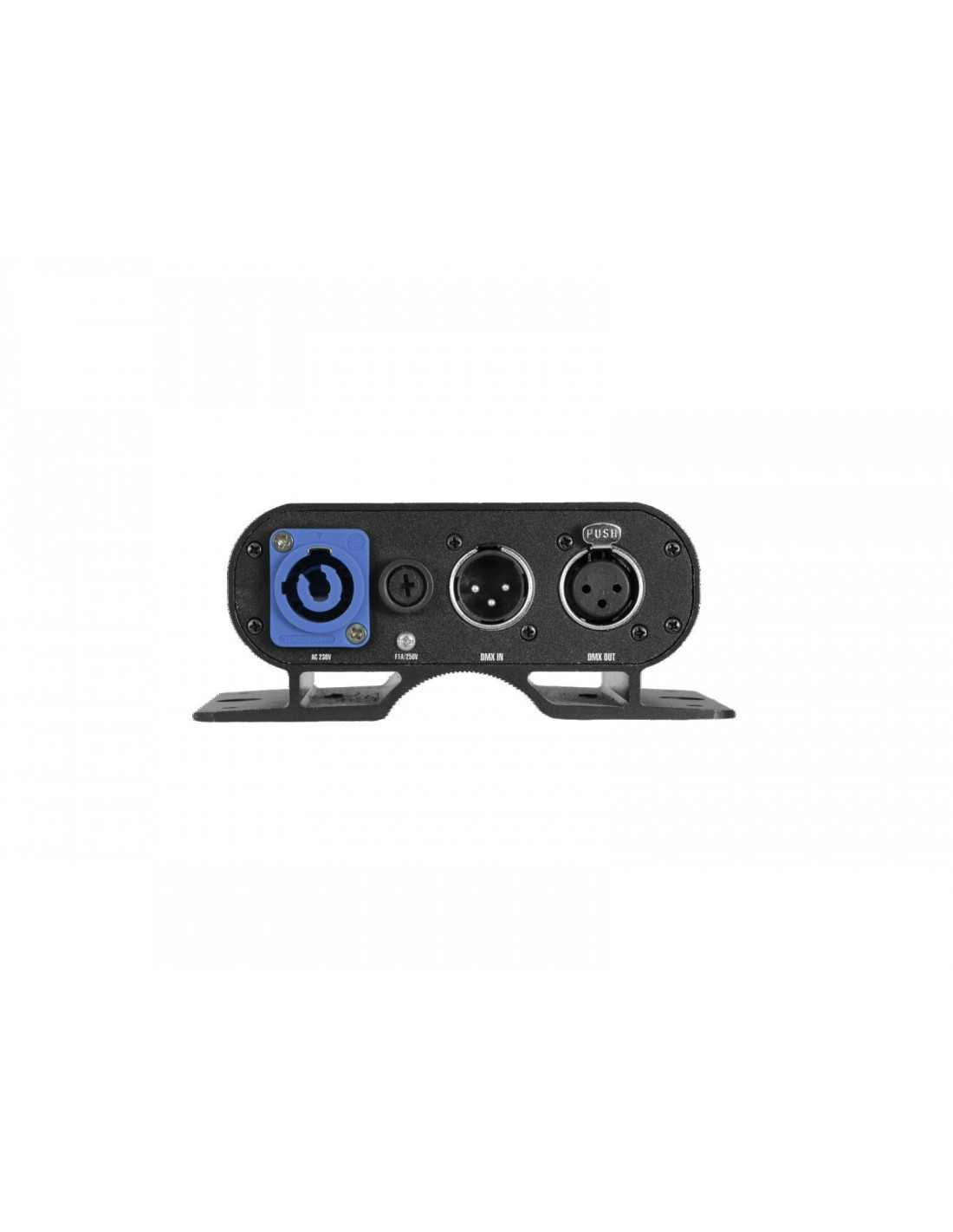

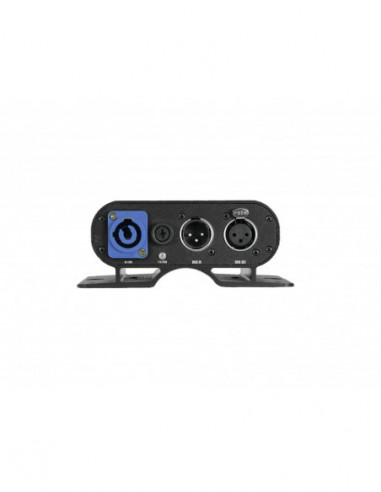

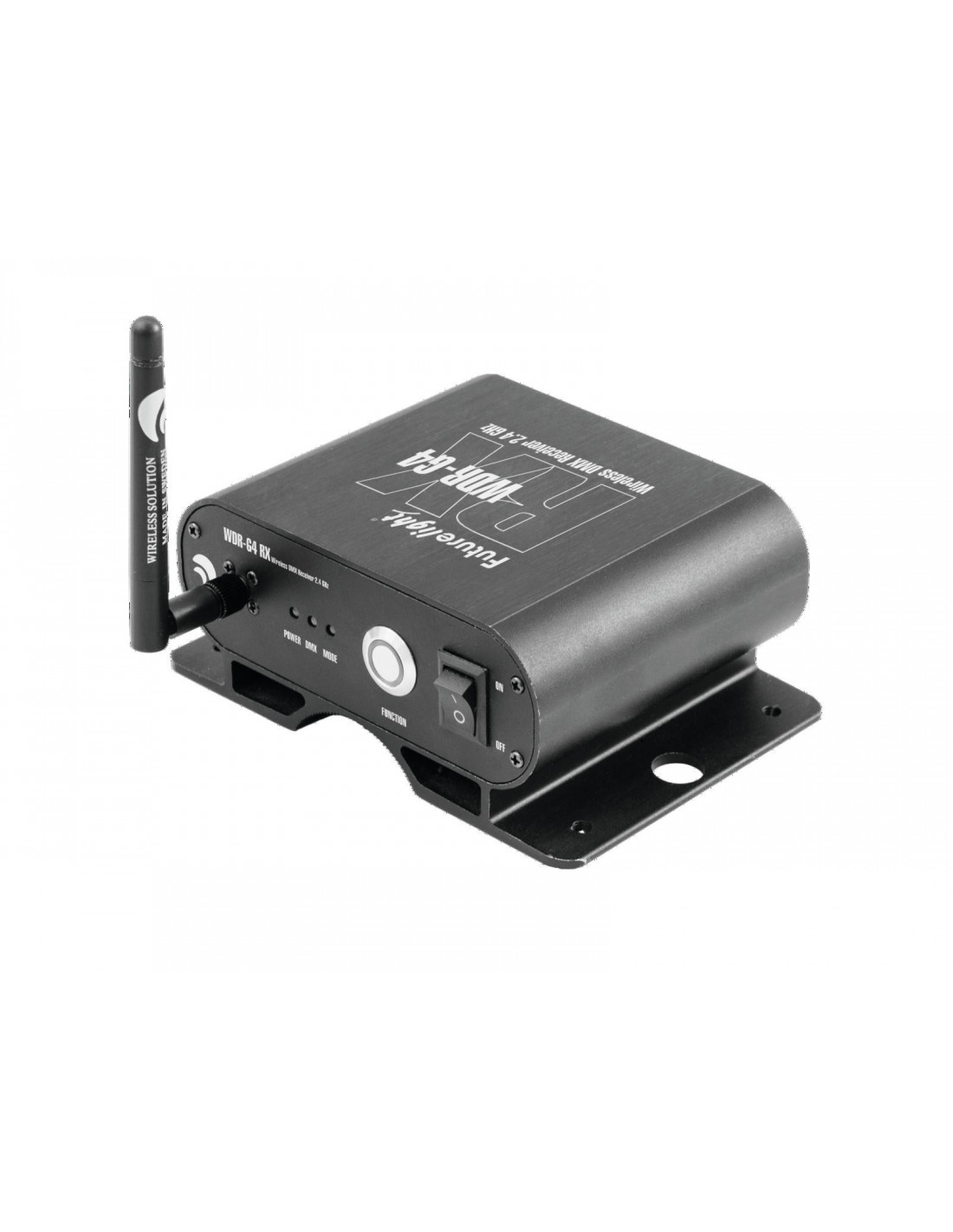

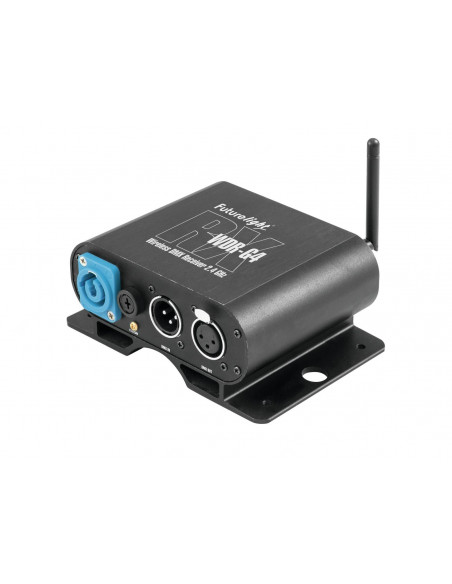

FUTURELIGHT WDR-G4 RX Wireless-DMX-Receiver

Referência 51834023

151,58 €

DMX wireless receiver with technology by Wireless Solution

Compatible with Wireless Solution W-DMX systems
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
AFHSS technology ensures interference-free operation also alongside other DMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
1 to 512 receivers can be controlled by each transmitter
Plug & play: quick and easy setup with one operating button

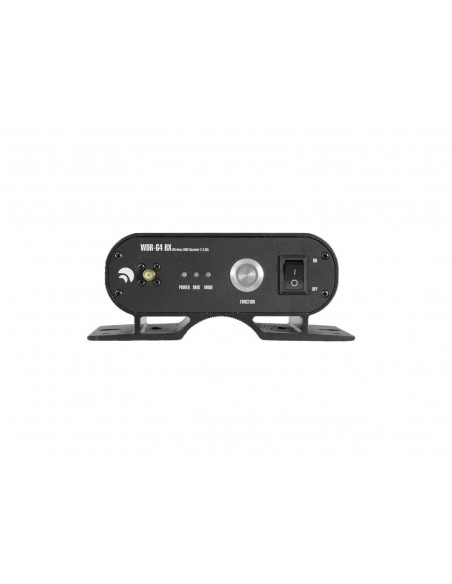

LED indication for operation and functions
DMX input and output, 3-pin XLR

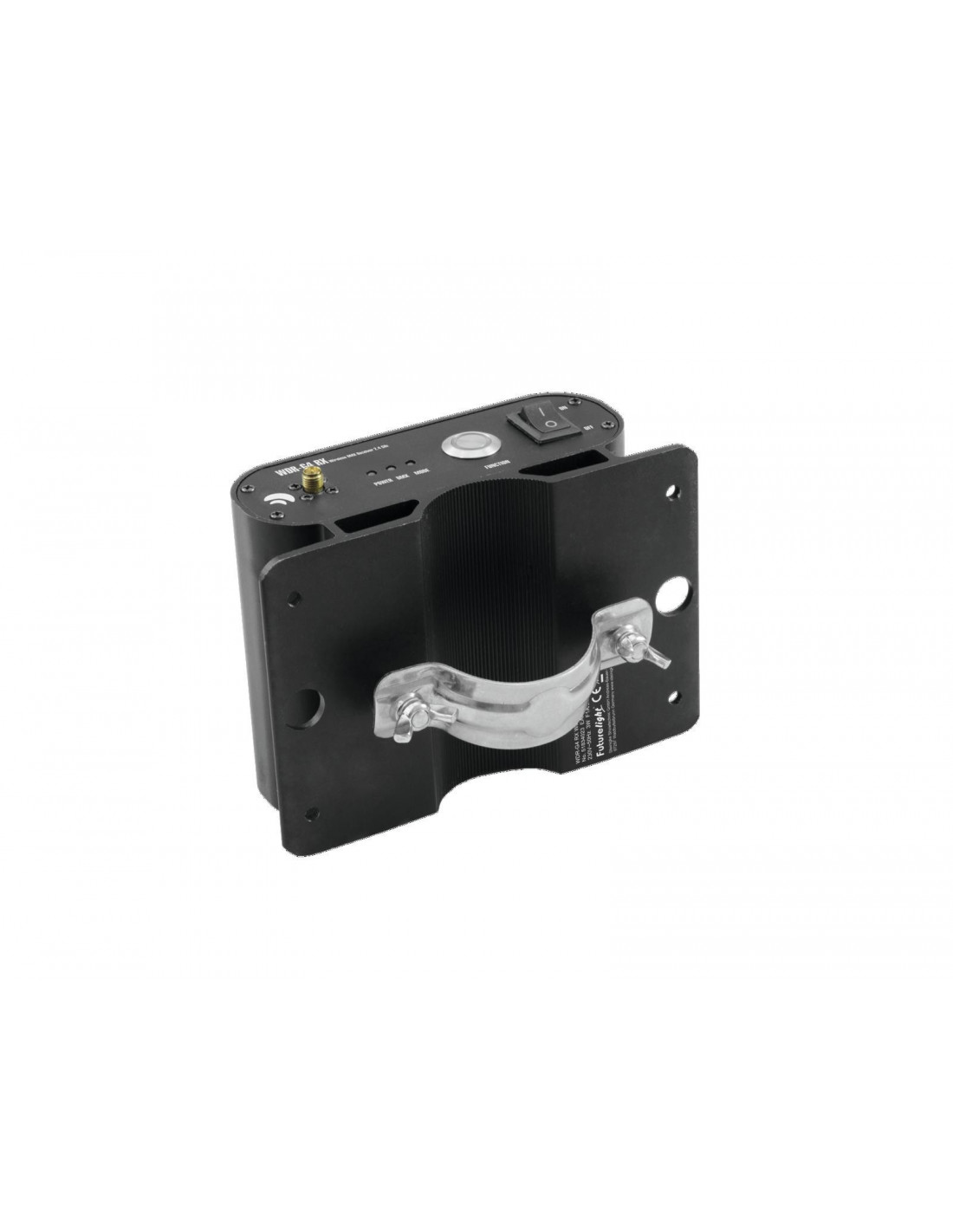

Truss attachment option
2.4 GHz - license-free worldwide
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Controlling by RDM; DMX; W-DMX by wireless solution built-in
Use a operating range up to 500m with line of sight

Power supply:	230 V AC, 50 Hz
Power consumption:	3 W
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
DMX channels:	Input 512 Output 512
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	RDM; DMX; W-DMX by wireless solution built-in
Frequency band:	2.4 GHz
Carrier frequency:	2,4 GHz
Modulation:	AFHSS
Latency:	< 5 ms
Parallel mode:	Max. 6 transmitter
Range:	500 m with line of sight
Color:	Black
Dimensions:	Width: 14,5 cm Depth: 10 cm Height: 5,8 cm
Weight:	1,00 kg
