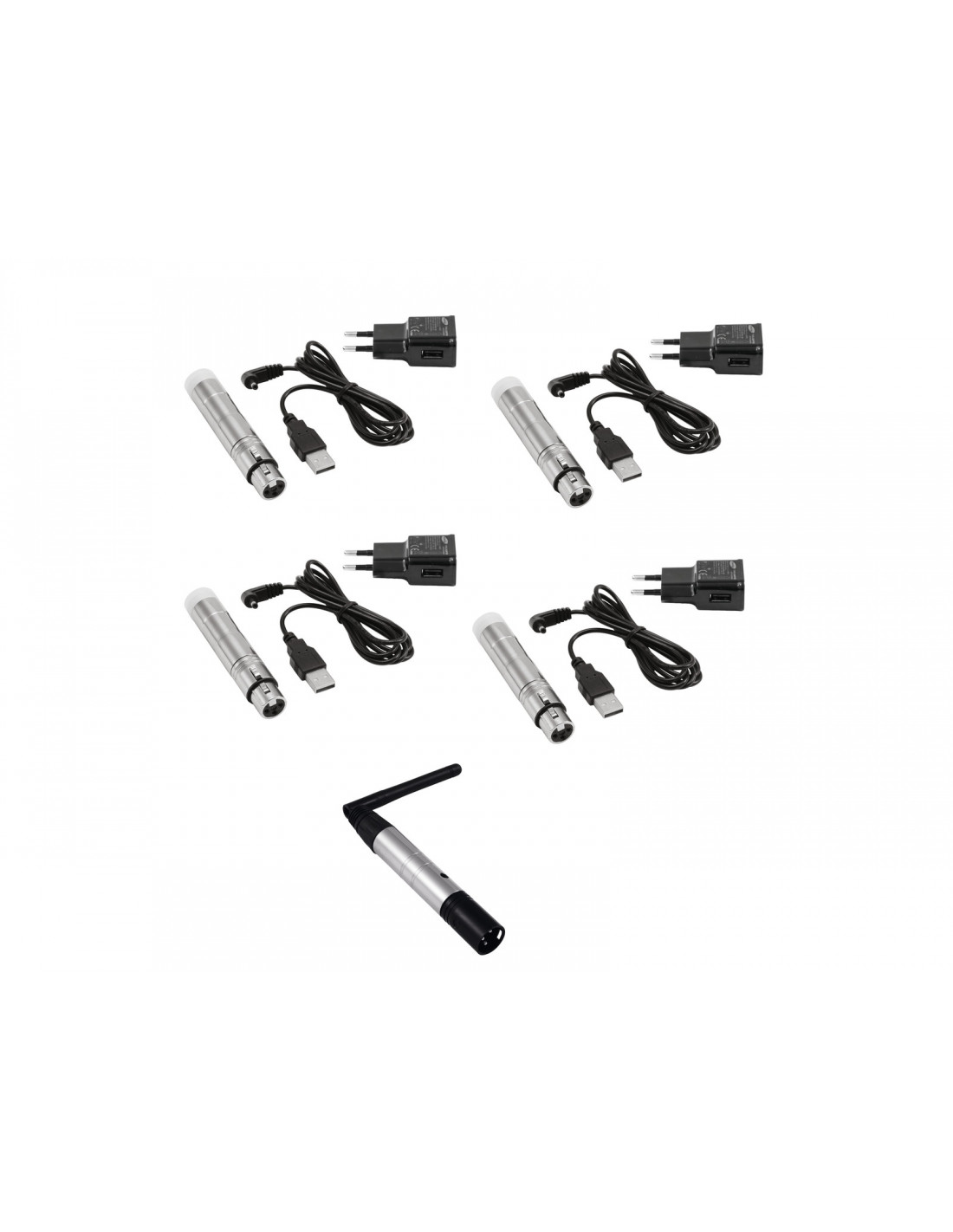

EUROLITE Set QuickDMX 1x transmitter + 4x AKKU receiver

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Operation via included power adapter
• 2.4 GHz - license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in; DMX
• Use a operating range up to 400m

EUROLITE AKKU QuickDMX Wireless Receiver

Battery-powered wireless DMX receiver 2.4 GHz

• Compact 3-pin XLR plug (female) with built-in antenna
• Internal rechargeable lithium battery with up to 20 hours operating time
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• 32-bit ARM processor for delay-free transmission
• Due to GFSK modulation with 79 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Group mode
• Plug & Play: quick and easy setup with one control button
• Multicolored LED indication for functions
• 2.4 GHz - license-free worldwide
• Including USB charging cable and power adapter
• Controlling by QuickDMX built-in
• Use a operating range up to 400m
