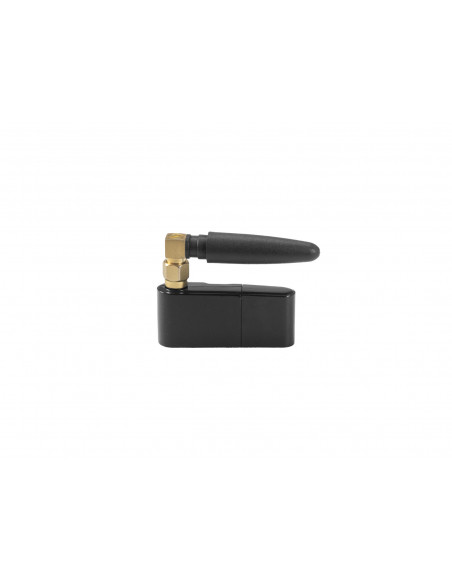

Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- 2.4 GHz - license-free worldwide
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by DMX; QuickDMX built-in
| Power supply: | 5 V DC |
| IP classification: | IP20 |
| Power connection: | Mains input USB A (M) connectable version |
| DMX channels: | Input 512
Output 512 |
| DMX output: | 1 x USB, type A |
| Control: | DMX; QuickDMX built-in |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Color: | Black |
| Dimensions: | Width: 8,6 cm
Depth: 4 cm
Height: 1,1 cm |
| Weight: | 10 g |
