Weather-proof wireless DMX receiver by Wireless Solution, IP65With the weatherproof DMX radio receiver of FUTURELIGHT WDR-G5 you have a wireless receiver for 512 DMX channels, which allows you to operate almost all your devices wirelessly with DMX control. Thanks to the G5 receiver unit incl. antenna from Wireless Solutions you are able to bridge longer distances and leave out annoying cables.The WDR-G5 is very suitable for use on larger stages or events.The integrated AFHSS technology ensures interference-free signal transmission in the 2.4 GHz band, which is free of registration and fees worldwide.The weatherproof die-cast aluminium housing (IP65) is equipped with mounting strips. Thanks to the lockable input socket for mains connection, which withstands almost any weather when closed, the WDR-G5 can also be used for open-air festivals. The range of the DMX radio receiver is 500 m with visual contact. A simple and quick start-up with only one button is possible thanks to Plug & Play. The integrated LED allows you to easily monitor the operating status.
Weather-proof wireless DMX receiver by Wireless Solution, IP65

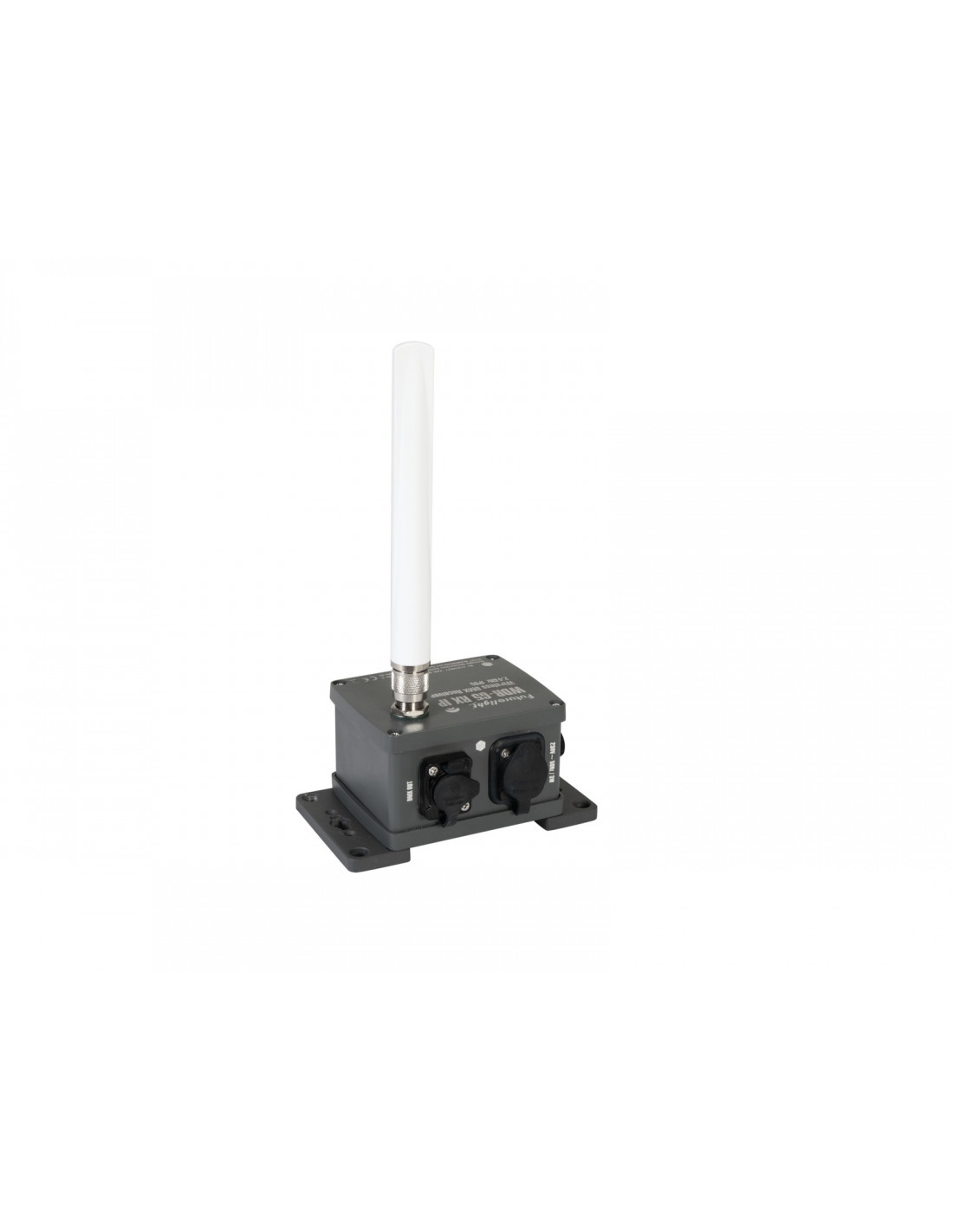

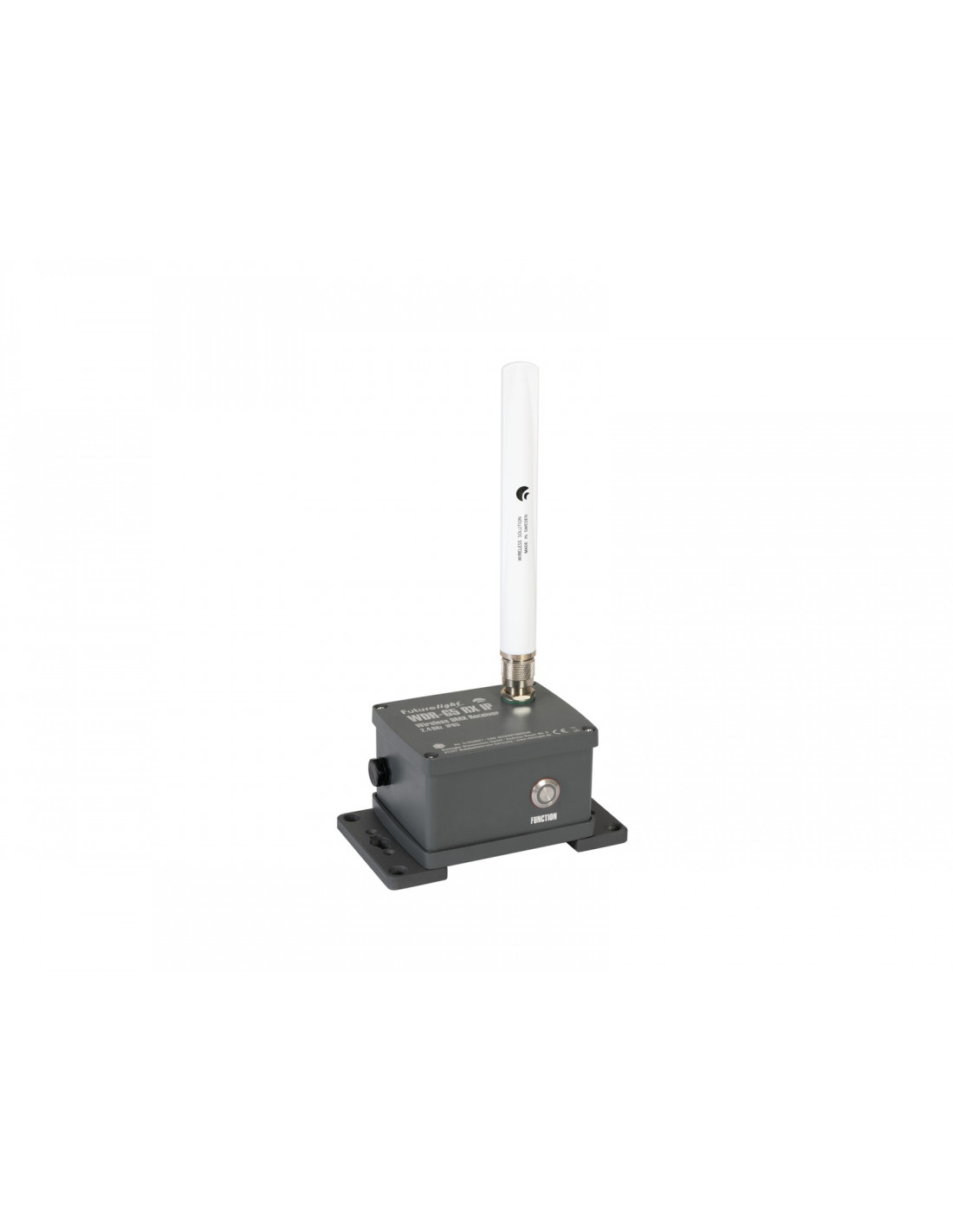

- Wireless Solution G5 receiver unit and antenna

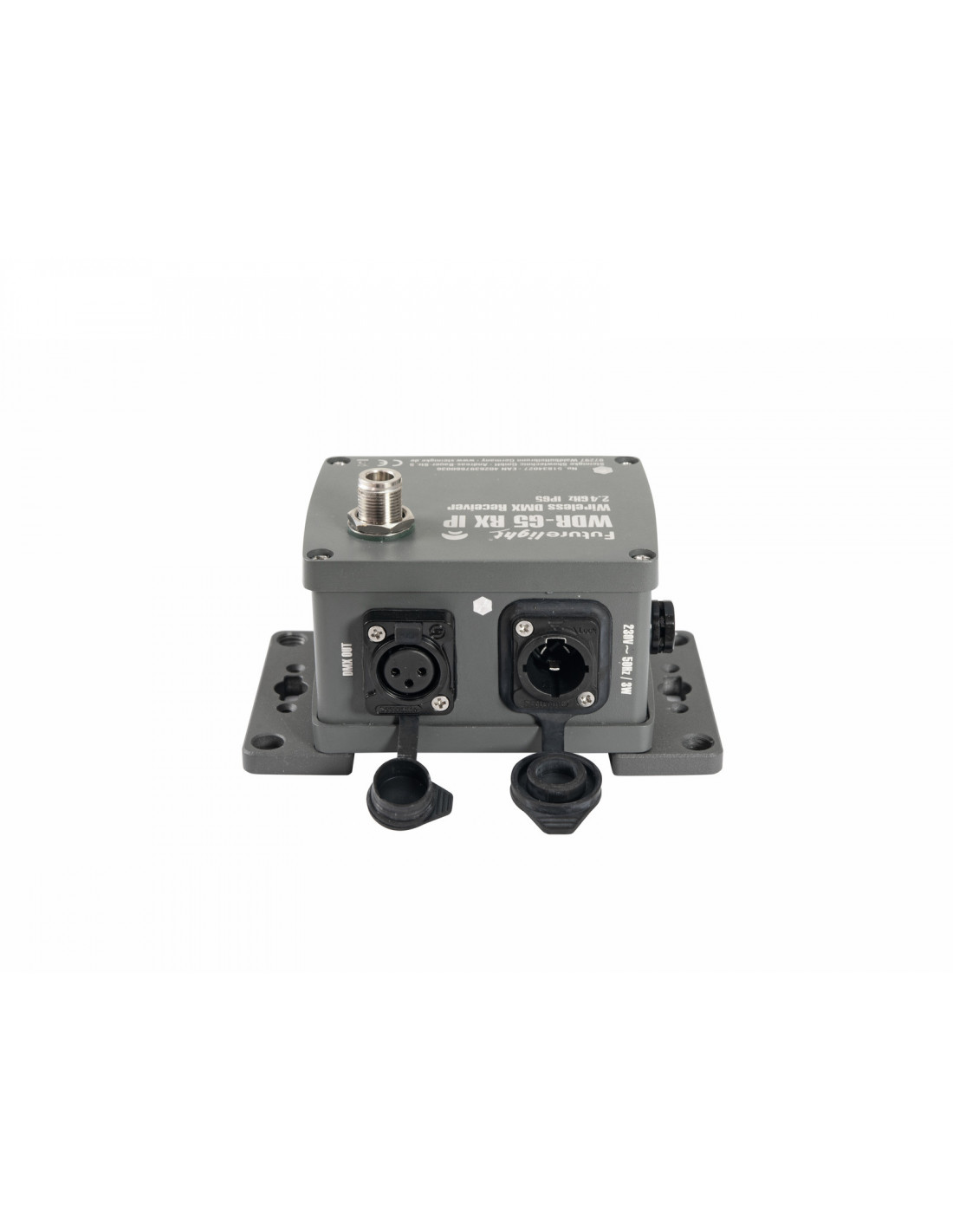

- Weather-proof aluminum die-cast housing (IP65) with mounting brackets
- AFHSS technology ensures interference-free operation in the 2.4 GHz band
- Plug & play: quick and easy setup with one operating button
- LED for monitoring the operating status
- 3-pin XLR connector (DMX out)
- Lockable power input (IP T-Con)

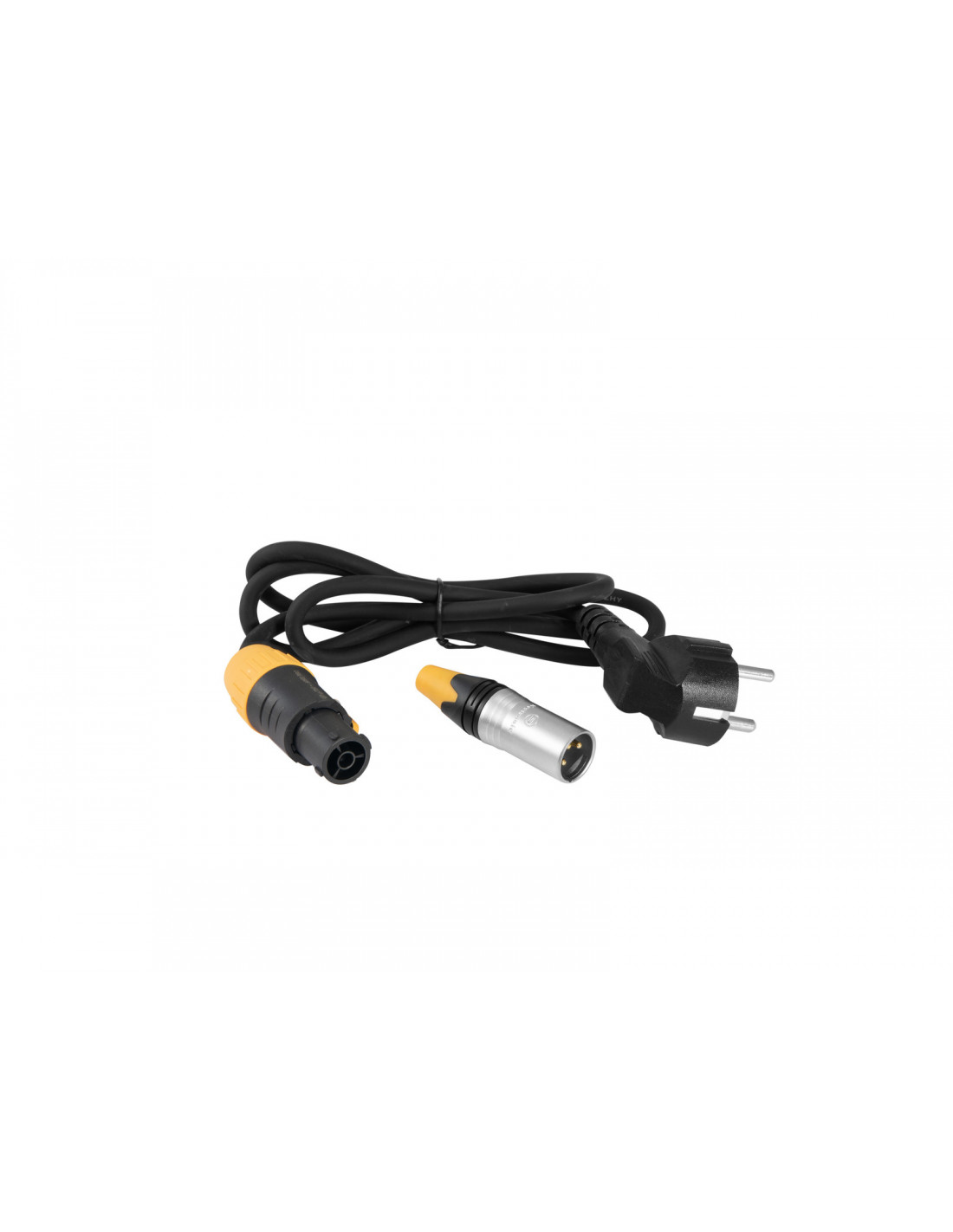

- Suitable power cable included
- 2.4 GHz - license-free worldwide
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by W-DMX by wireless solution built-in
- Use a operating range up to 500m with line of sight
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 3 W |
| IP classification: | IP65 |
| DMX channels: | Input 512
Output 512 |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Control: | W-DMX by wireless solution built-in |
| Frequency band: | 2.4 GHz |
| Modulation: | AFHSS |
| Range: | 500 m with line of sight |
| Color: | Grey |
| Dimensions: | Width: 13,5 cm
Depth: 10 cm
Height: 9 cm |
| Weight: | 1,24 kg |
