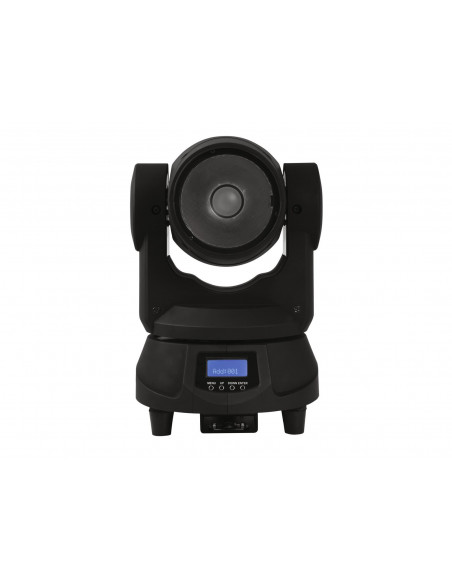

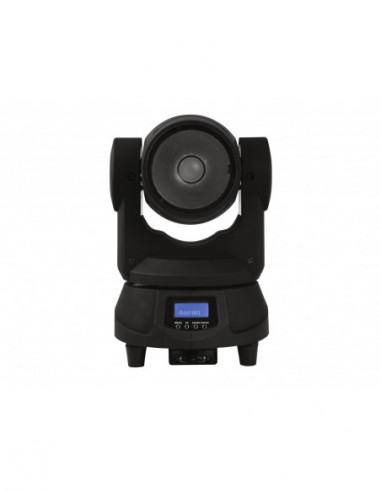

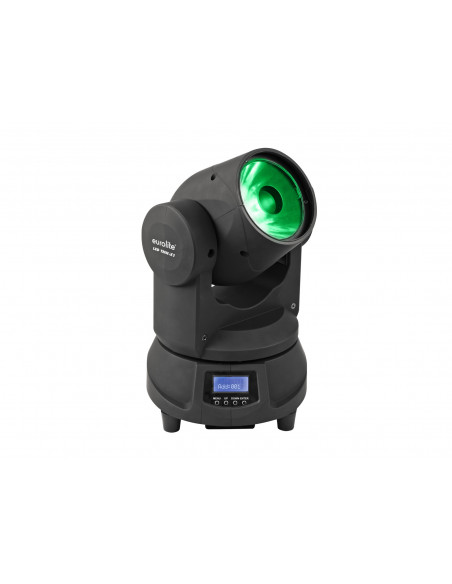

60 W beam, compact, narrow angle, beautiful RGBW colors
- Equipped with a 60 W COB LED with RGBW colors from Osram
- Compact lightweight
- Narrow beam angle
- Positioning within 540° PAN and 220° TILT
- Stepless RGBW color mixture
- Electronic dimmer (0-100%)
- Built-in programs
- Color presets
- Strobe effect with adjustable speed
- Automatic position correction
- Exact positioning via 16-bit PAN/TILT movement resolution
- Stand-alone, master/slave and DMX mode
- Control panel with LC display for easy configuration
- Mains input and output for power linking up to 8 units
- LED: 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW
- Can be operated in 14 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; stand-alone; Sound to light via Microphone
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- Effect: Single Beam
- OSRAM bulb included
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |

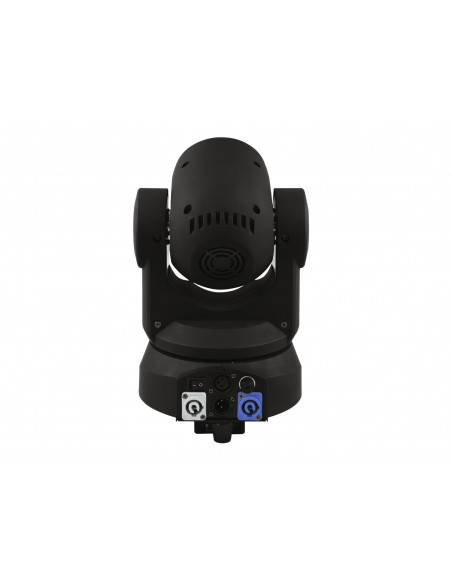

| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 220° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 0 - 10 Hz |
| DMX channels: | 14 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; Sound to light via Microphone; Light´J; LED PC-Control 512 |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 7° |
| Illuminance in Lux (lx): | Red (R) 3m: 3251 lx, 6m: 712 lx
Green (G) 3m: 4684 lx, 6m: 1125 lx
Blue (B) 3m: 819 lx, 6m: 220 lx
Cold white (CW) 3m: 7909 lx, 6m: 1899 lx
All 3m: 15489 lx, 6m: 3655 lx |
| Housing color: | Black |
| Use of brands: | OSRAM bulb included |
| Dimensions: | Width: 20,7 cm
Depth: 19,6 cm
Height: 31,3 cm |
| Weight: | 4,47 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
