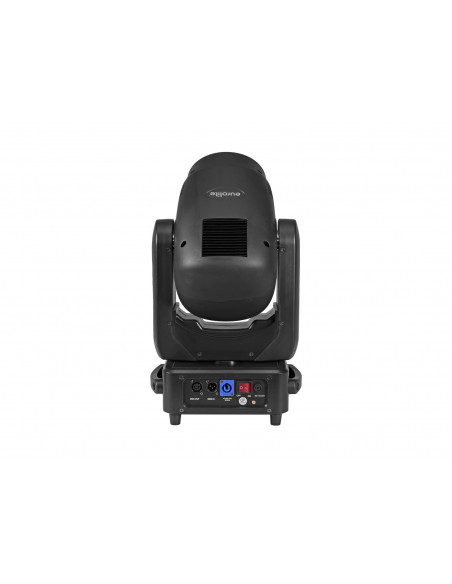

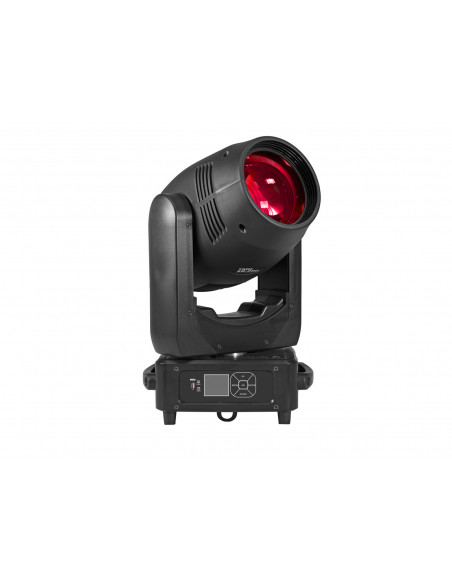

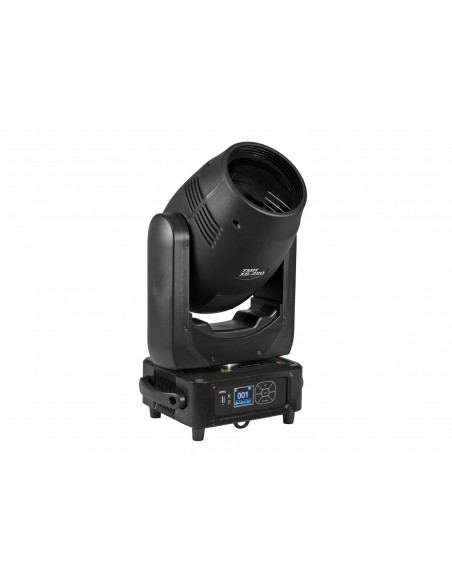

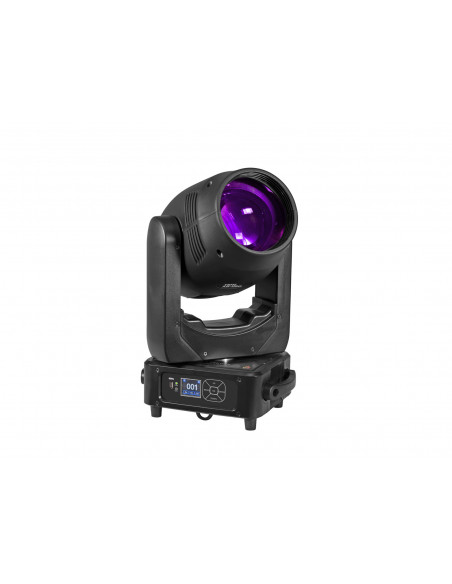

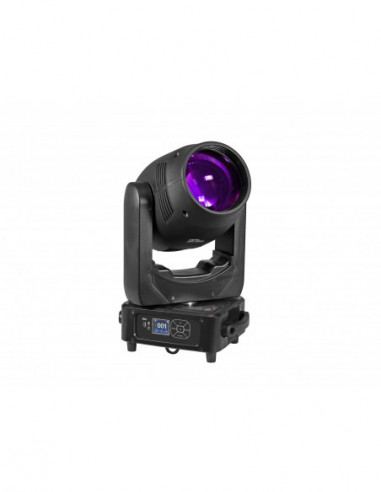

EUROLITE TMH XB-280 Moving-Head-Beam

Referência 51786825

761,48 €

Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms

Equipped with an OSD 10 Reflector 280W discharge lamp
Very narrow beam angle of 2°
Positioning within 540° PAN and 270° TILT
Exact positioning via 16-bit PAN/TILT movement resolution
Rotating 8-and 24-facet prism, combinable for multi-facet effects
The prisms rotate in both directions and at different speeds
Frost filter
Multi-color-filter
Strobe effect with adjustable speed
Random strobe effect
Electronic dimmer (0-100%)
Motorized focus
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
Control panel with LC display for easy configuration
P-Con power input
Color wheel 14 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
Can be operated in 16; 19 CH mode
The device is cooled by cooling fan
Controlling by DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in LED PC-Control 512

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	385 W
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse:	T 5 A Fuse replaceable
Lamp type:	Discharge lamp
Max. TILT movement:	Exact positioning (16 bit resolution) 270°
Max. PAN movement:	Exact positioning (16 bit resolution) 540°
Flash rate:	1 - 18 Hz
Equipment:	Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism rotating
Color generation:	Color wheel 14 dichroic filters plus open
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	16; 19
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; stand-alone; Master/slave function; Sound to light via Microphone; LED PC-Control 512; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Beam angle:	2°
Beam angle (1/2 peak):	2°
Housing color:	Black
Display type:	Multicolor LCD display
Dimensions:	Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm
Weight:	14,80 kg
Noise classification:	Class 4 (loud noises)
