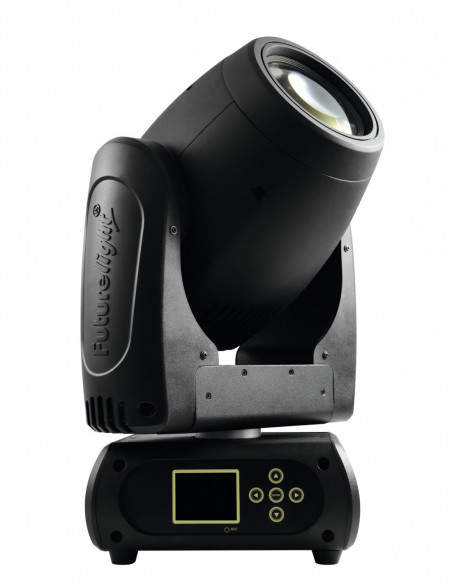

High performance beam with Osram Sirius HRI 132 W lamp
- Parallel beam
- Effect wheel with rotating 8-facet prism
- The prism rotate in both directions and at different speeds
- Motorized focus
- Strobe effect with adjustable speed
- Random strobe effect
- Electronic dimmer (0-100%)
- Exact positioning via 16-bit PAN/TILT movement resolution
- Automatic position correction
- Control panel with LC display for easy configuration
- PAN-angle switchable between 630° and 540°
- Stand-alone, master/slave and DMX mode
- Number of scenes in Program Run can be changed individually
- The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
- Software upload by optional accessories via DMX link
- With Osram Sirius HRI 132 W lamp
- Color wheel 14 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 17 gobos and open
shake effect - Can be operated in 10; 12; 13; 16 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by RDM; DMX; stand-alone; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512
- Effect: Gobo effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 190 W |
| IP classification: | IP20 |

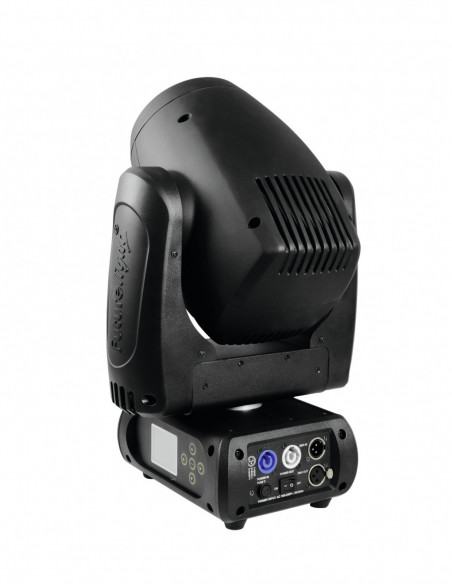

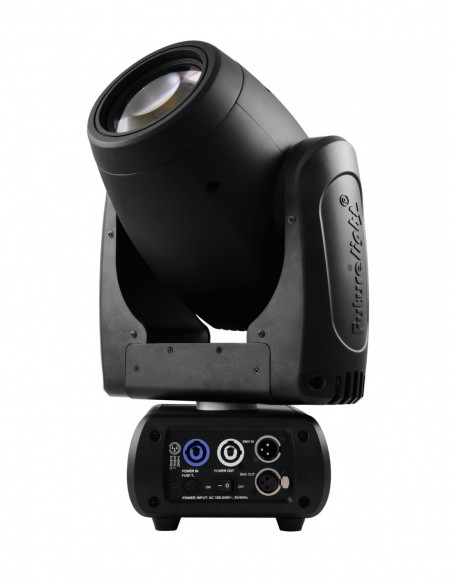

| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Fuse: | T 3,15 A Fuse replaceable |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 265° |
| Max. PAN movement: | 630° |
| Flash rate: | 1 - 20 Hz |
| Equipment: | Gobos |
| Color generation: | Color wheel 14 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 17 gobos and open
Shake effect |
| DMX channels: | 10; 12; 13; 16 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; DMX; stand-alone; Sound to light via Microphone; LED PC-Control 512 |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Housing color: | Black |
| Dimensions: | Width: 25 cm
Depth: 30 cm
Height: 40 cm |
| Weight: | 11,70 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Energy efficiency class (A++ - E): | G |
| Nominal wattage: | 132.00 W |
| Energy consumption: | 132.00 kWh/1000h |
| Lamp: | 1 x conventional with EEI C included |
