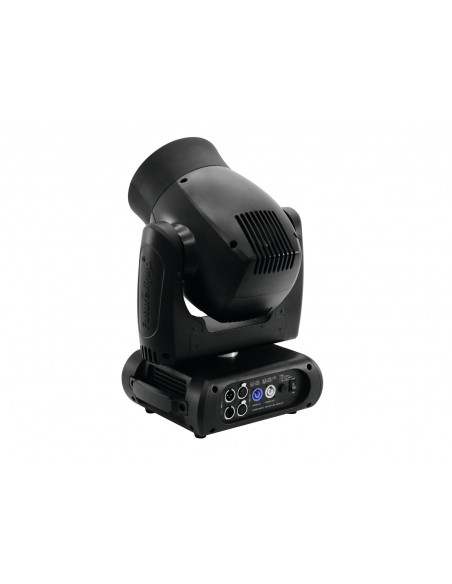

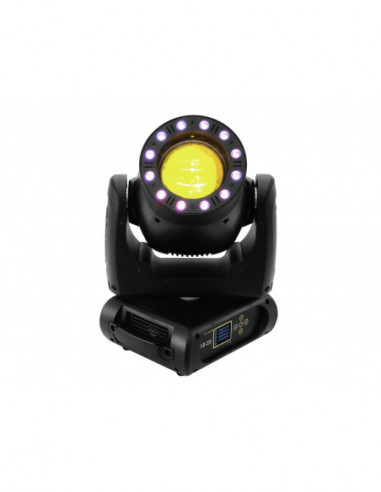

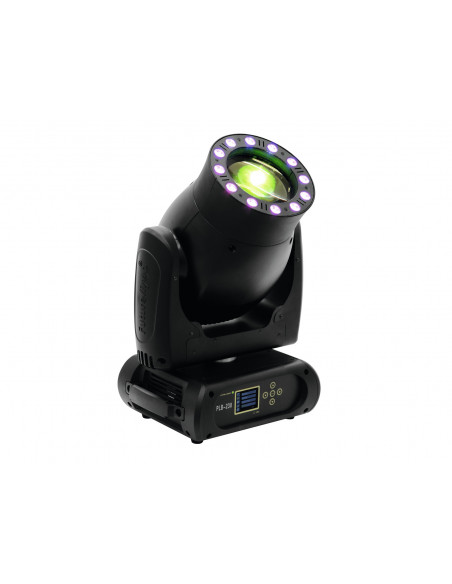

FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head
FUTURELIGHT PLB-230 Moving Head

FUTURELIGHT PLB-230 Moving Head

51838951
1 643,07 €




High performance beam with Osram Sirius HRI 230 W lamp and LED ring with RGB color mixture

  • With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
  • Very narrow beam angle of 1.3°
  • Light beam is centered exactly
  • Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
  • Motorized focus
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Electronic dimmer (0-100%)
  • Exact positioning via 16-bit PAN/TILT movement resolution
  • Automatic position correction
  • Control panel with LC display for easy configuration
  • PAN-angle switchable between 630° and 540°
  • Stand-alone, master/slave and DMX mode
  • Number of scenes in Program Run can be changed individually
  • The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
  • Software upload by optional accessories via DMX link
  • With already installed Osram Sirius HRI 230 W lamp
  • LED ring equipped with 12 x 3 W TCL (tricolor LED) with RGB colors
  • LED: 12 x 3 W 3in1 TCL RGB
  • Color wheel 14 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 8 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for exchanging gobos without tools
  • Can be operated in 17; 19; 21; 24 CH mode
  • The device is cooled by temperature-controlled fan
  • Controlling by RDM; DMX; stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone
  • Preprogrammed in LED PC-Control 512
  • Effect: Gobo effect


Power supply:100-240 V AC, 50/60 Hz
Power consumption:325,00 W
IP classification:IP20
Power connection:Mains input PowerCON (blue), mounting version power supply cord with safety plug
Lamp type:Discharge lamp
LED:12 x 3 W 3in1 TCL RGB
Max. TILT movement:Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:0 - 20 Hz
Equipment:Gobo wheel with rotating gobos
Color generation:Color wheel 14 dichroic filters plus open
Gobos:Gobo wheel with rotating gobos, 8 gobos and open
Outside diameter 14mm
Image diameter 6mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
DMX channels:17; 19; 21; 24
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:Temperature-controlled fan
Control:RDM; DMX; stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone; LED PC-Control 512
Beam angle:1,3°
Beam angle (1/2 peak):1,3°
Housing color:Black
Carrier frequency:2,4 GHz
Dimensions:Width: 25 cm
Depth: 42,4 cm
Height: 34,3 cm
Weight:16,20 kg
Noise classification:Class 3 (clearly perceptible sounds)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Lamp:1 x conventional with EEI C included
