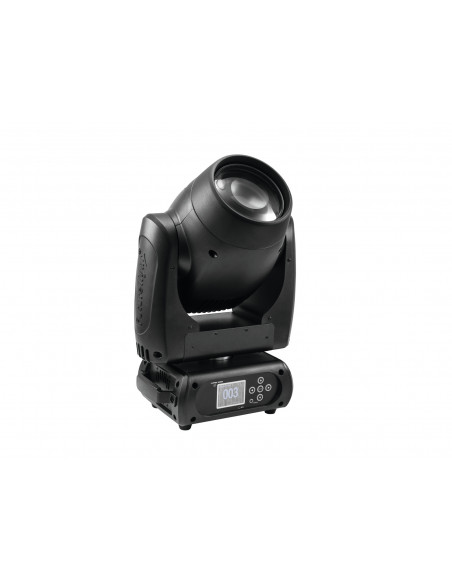

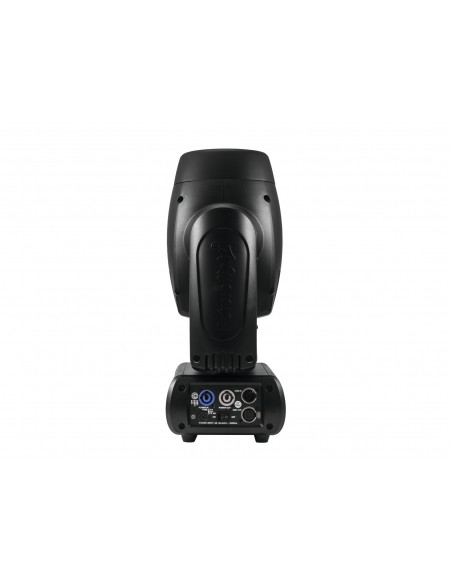

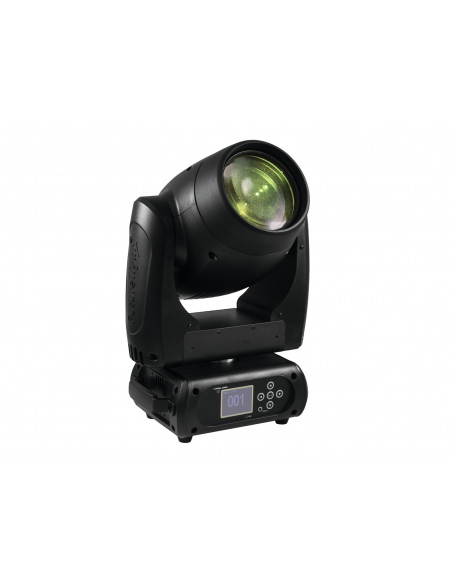

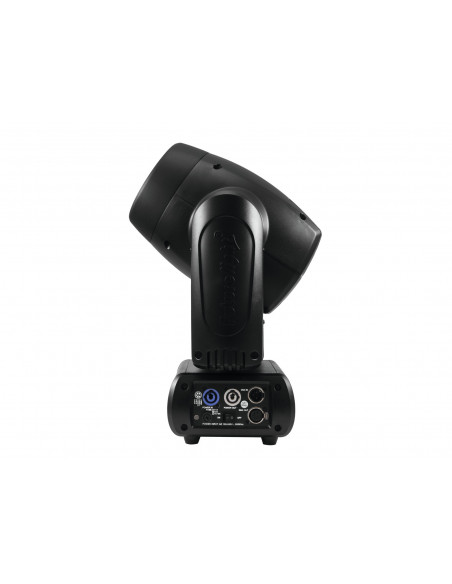

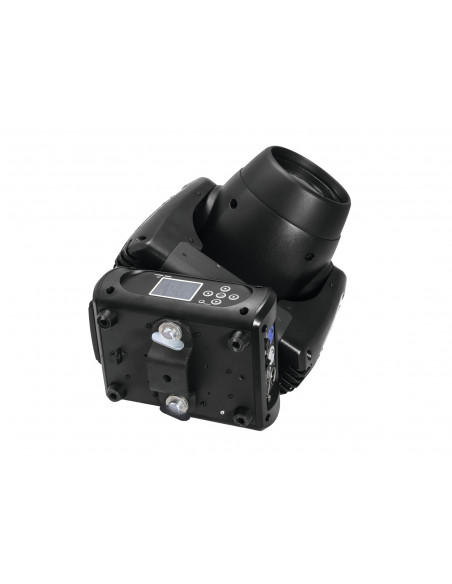

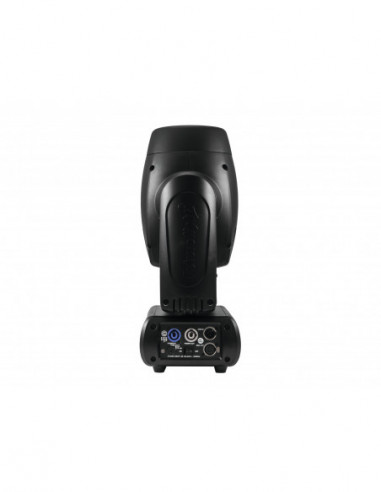

PRO beam moving-head with a 50 W LED and very good RGB color mixing
- Extraordinary projection possibilities, thanks to the RGB LED module (3in1) - even color mixing, sharp, narrow beams, vivid single colors and homogeneous white
- Very narrow beam angle of 2°
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- 8-facet prism and frost filter
- Preset colors and color temperatures (virtual color wheel)
- Exact positioning via 16-bit PAN/TILT movement resolution
- Electronic dimmer (0-100%)
- Motorized focus
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540° and 630°
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- Control panel with LC display for easy configuration
- Stand-alone, master/slave and DMX mode
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- LED: 1 x COB (chip-on-board) 50 W 3in1 TCL RGB (homogenous color mix)
- Gobo wheel with static gobos, 17 gobos and open
shake effect - Can be operated in 16; 18; 20; 21 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by RDM; DMX; stand-alone; W-DMX by wireless solution upgradeable; Sound to light via Microphone
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- Effect: Gobo effect
- Built with NEUTRIK connector
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 115 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 50 W 3in1 TCL RGB (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| Equipment: | Gobo wheel with static gobos; Prism 8-fold; frost filter; Focus motor-driven |
| Gobos: | Gobo wheel with static gobos, 17 gobos and open
Shake effect |
| DMX channels: | 16; 18; 20; 21 |
| DMX input: | 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; DMX; stand-alone; W-DMX by wireless solution upgradeable; Sound to light via Microphone; Light´J; LED PC-Control 512 |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Illuminance in Lux (lx): | Red (R) 6m: 4153 lx
Green (G) 6m: 28365 lx
Blue (B) 6m: 1725 lx
All 6m: 34232 lx |
| Housing color: | Black |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 29,8 cm
Depth: 26,7 cm
Height: 39,8 cm |
| Weight: | 12,40 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
