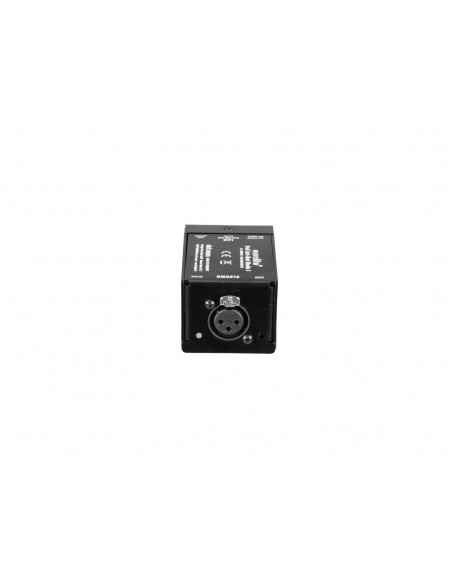

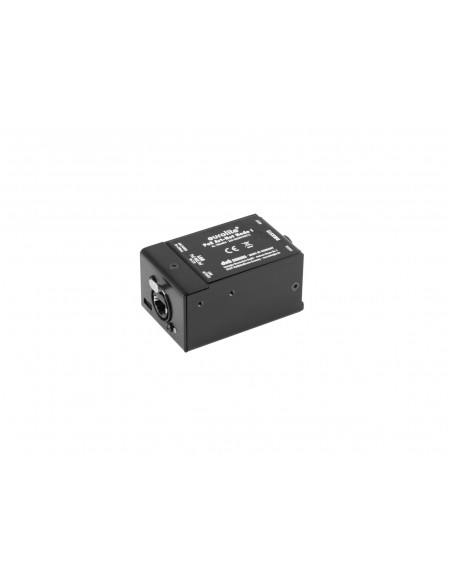

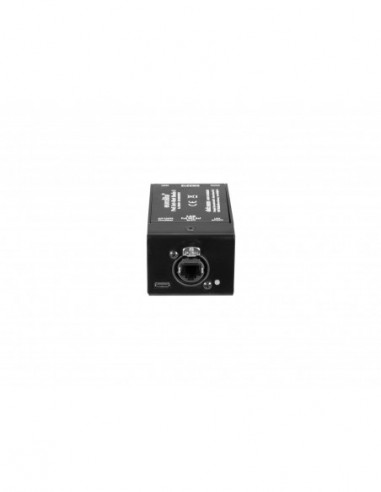

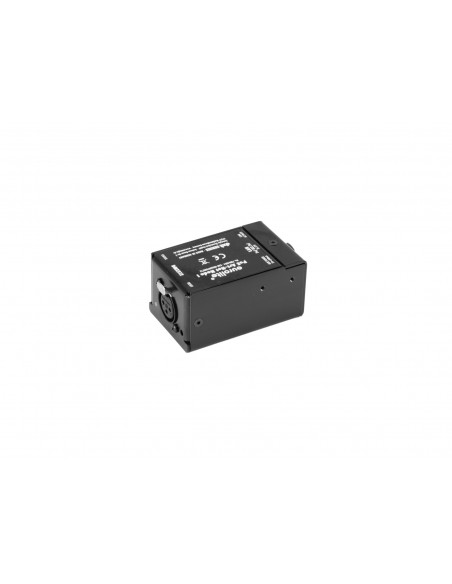

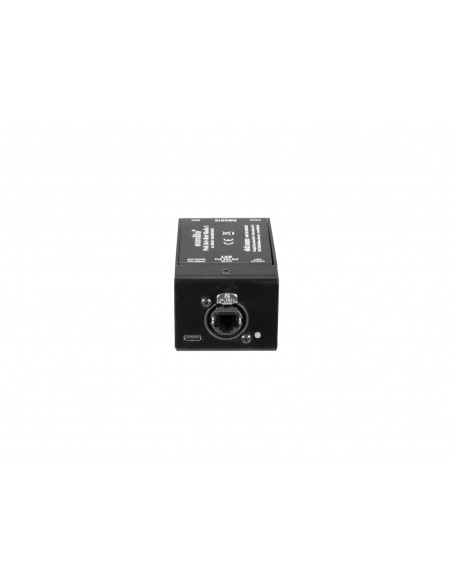

EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I
EUROLITE DXT PoE Art-Net Node I

EUROLITE DXT PoE Art-Net Node I

70064854
134,15 €




Art-Net interface for control of 512 DMX channels

  • DMX512 connection via 3-pin XLR plug (female)
  • etherCON network connection with PoE
  • Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
  • Up to 512 DMX channel input and output
  • DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
  • ArtDMX reception via Broadcast or Unicast
  • Configuration with website or Art-Net
  • Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
  • Rugged metal housing for use on stage
  • Mounting brackets optionally available (No. 70064875)
  • Including USB A/C cable
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Controlling by ArtNet
  • Built with NEUTRIK connector
  • The device can be connected via RJ-45 etherCON (F) mounting version to the PC
  • Made in Germany


Power supply:5 V DC 500 mA
37-56 V DC
IP classification:IP20
Power connection:Mains input USB C (F) mounting version power supply cord for USB A mains connection (provided)
Mains input RJ-45 (F) mounting version
DMX channels:Input 512
Output 512
DMX output:1 x 3-pin XLR (F) mounting version
Network connection:Protocol: Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s
Control:ArtNet
Status LED:Signal, link
Use of brands:Built with NEUTRIK connector
Color:Black
PC connect:Via RJ-45 etherCON (F) mounting version
Dimensions:Width: 7,8 cm
Depth: 5 cm
Height: 4,2 cm
Weight:470 g
