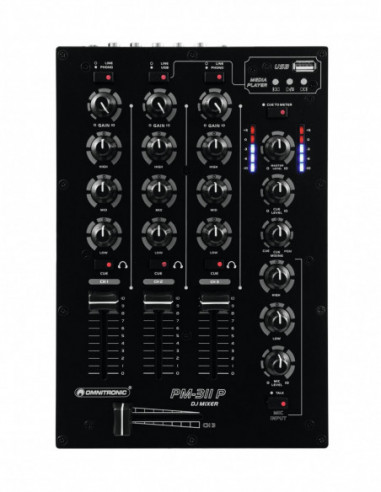

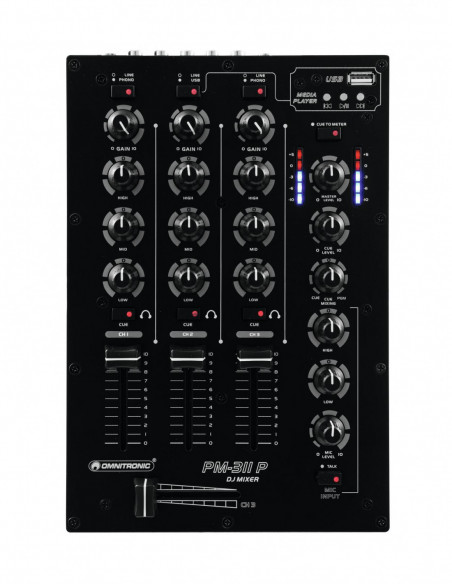

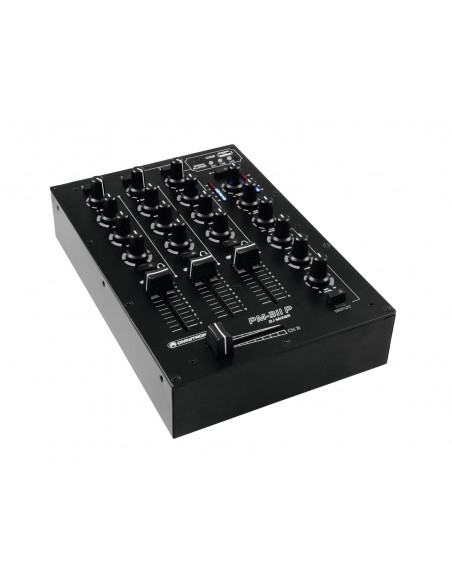

3-channel DJ mixer with integrated MP3 player
- 3 input channels, switchable 2 x phono/line and 1 x USB/line

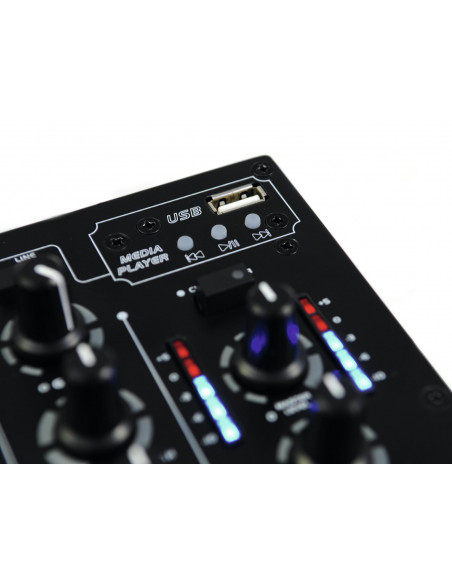

- MP3 player for external USB storage media up to 32 GB, e.g. USB flash drives or portable players
- All input channels with gain control, 3-band equalizer and cue button
- DJ microphone input with talkover selector, level control and 3-band equalizer
- Pre-fader listening (CUE) to the input channels and the master output via adjustable headphones output, with cue mix control
- Crossfader for crossfading between the phono/line channels
- 5-digit stereo LED level meter, switchable between master and PFL signal
- Additional recording output
- Operation via supplied power unit
- Desktop console housing
| Power supply: | 230 V AC, 50 Hz
12 V AC |
| Power consumption: | 4,00 W |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >75 dB |
| THD: | <0,07 % at 1 kHz |
| Audio player: | USB |
| Control elements: | Crossfader, source selector, Talk over, power switch |
| Status LED: | Switchable master level meter, chanal source, CUE, ON AIR |

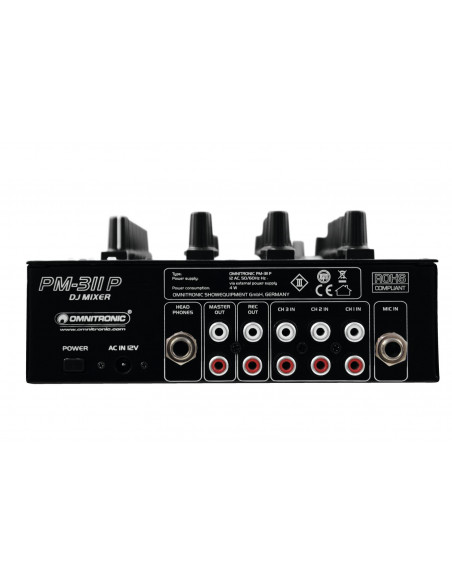

| Connections: | Input: line/phono via 2 x stereo RCA
Input: line via 1 x stereo RCA
Input: Audio player via 1 x USB A (F) mounting version
Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch,
Input chanel: 1 x stereo with Line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch,
Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, 2-band tone control EQ, ON AIR switch,
Master output: 1 x stereo via RCA, channel control via Rotary dial, Cue-mix-function,
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Format: | MP3, WAV |
| Available storage media: | USB devices max. 32GB (FAT 32) |
| USB port: | Typ A |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 17,2 cm
Depth: 26 cm
Height: 7,8 cm |
| Weight: | 1,98 kg |
