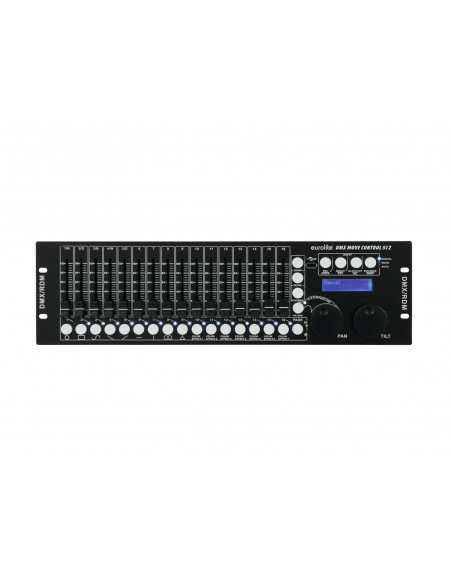

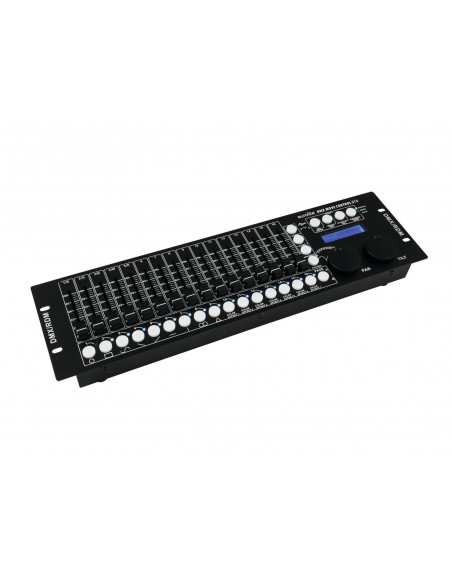

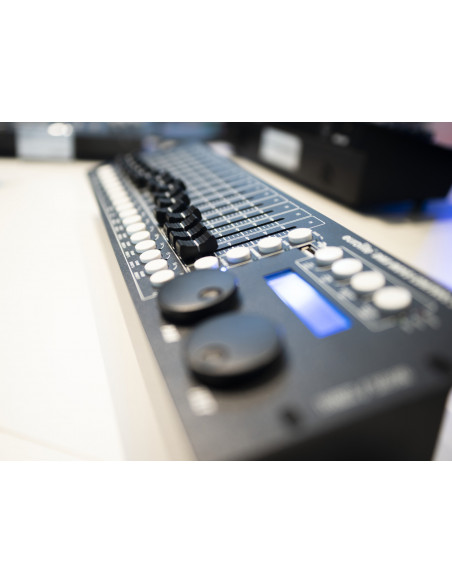

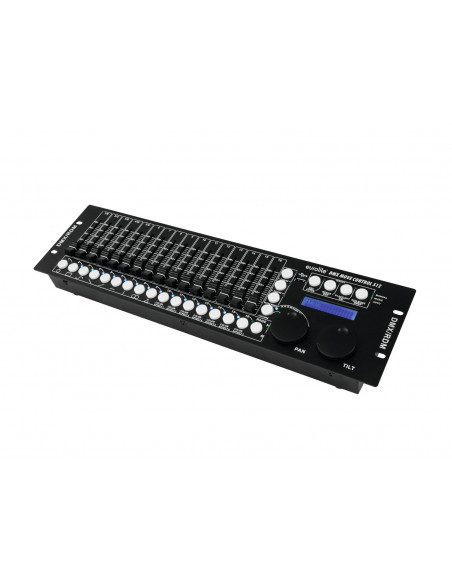

Controller with color & motion effects (28 devices, 18 control channels each)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
- For 28 fixtures with 18 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
- Manual, time-controlled or sound-controlled chase running mode
- 2 DMX fixture levels can be controlled, each with up to 18 channels
- 16 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Backlit LC display
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Rack installation, 3 U
- Programmable 32 sequencens each with 600 scenes
- Can transmit up to 512 DMX channels
- Controlling by DMX; RDM
- (19") 48.3 cm rack installation 3 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 2,70 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Programs: | Programmable
32 Sequences
Each with 600 Scenes |
| DMX channels: | Output 512 |

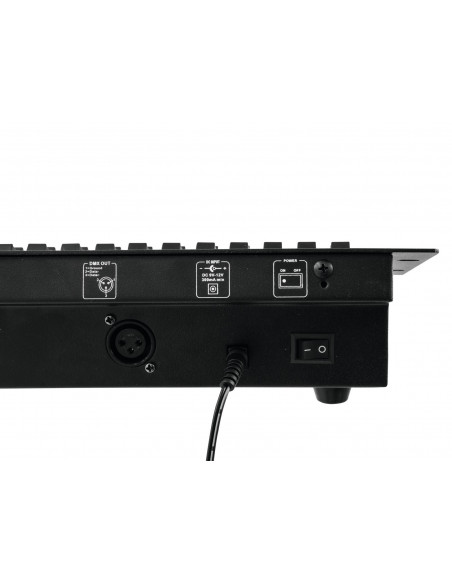

| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; RDM |
| Housing color: | Black |
| Display type: | Monochrome LCD display |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm
Depth: 13 cm
Height: 8,9 cm |
| Weight: | 2,39 kg |
