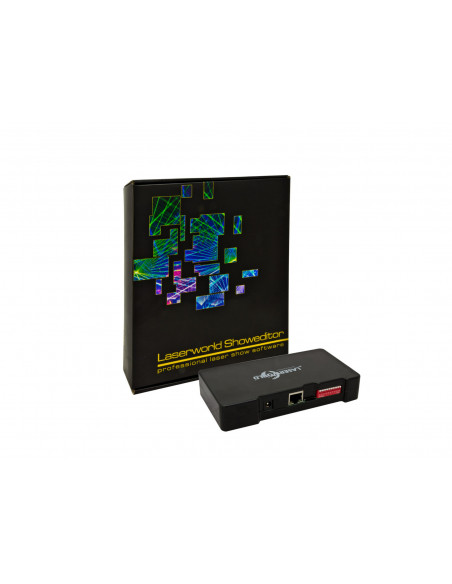

Set with Laserworld Showeditor 2015 and Laserworld ShowNET Network Interface

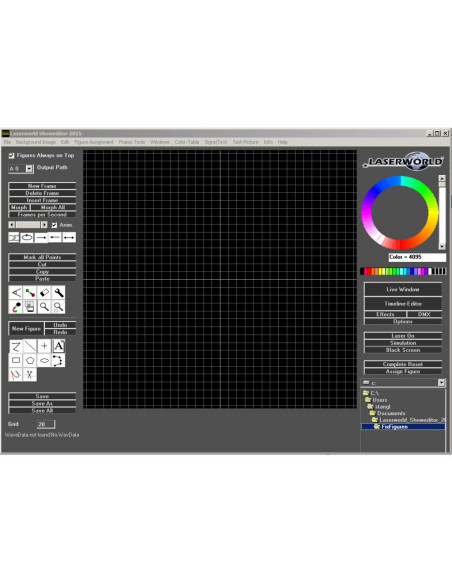

- Software features of Laserworld Showeditor:
- Internal resolution XY: 32 Bit
- Resolution color RGBI: 8 Bit
- Number of tracks on timeline: 48 tracks on 16 track pages + 18 effects each
- Matrix Mapping: 16 track page mixes to up to 16 ILDA interfaces
- Number of output interfaces at control PC: no limitation
- Number of interfaces with output at the same time: 16
- Output speed max.: ~150.000 points per second
- Bitmap Tracing: Yes
- AI File Import: Yes, file version 5
- ILDA Import / Export: Single frames and whole shows
- ILDA Export protection: can be locked to license
- SMS output on Laser: Yes (Siemens TSM Module TC35i or TXT file)
- Running text: Yes
- Morphing text: Yes
- Fonts: any TTF + 3 extra fonts

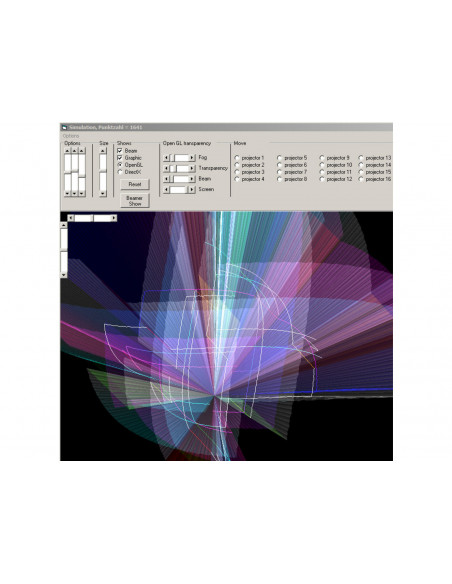

- Simulation: Yes (either DAC or simulation)
- Real time output to laser: Yes
- Multi Screen support: Yes (window positions are saved)
- Skin (custom colors for software look): Selectable
- Individual scanner settings per output interface: Yes (including pps rate)
- Individual color correction per output interface: Yes, TTL, Analog, RGB, 3-point
- Individual mapping per output interface: Yes, TTL, Analog, RGB, 3-point
- Individual geometric correction per output interface: Yes, invert X/Y, distortion, Size, position, etc.
- Safety zones / beam attenuation: Yes, per output interface. 2 with soft fading
- Individual names per output interface: Yes
- Settings can be saved: Yes
- Virtual hardware for simulation etc.: Yes
- Playlist support: Yes
- Auto Monitor Standby: Yes
- Video support: Yes, video as basis for timeline shows output via second monitor channel
- Free shows: more than 250 Free shows supported
- Commercial shows: available online
- X/Y scanner output with 12 bit resolution (4096 different positions on each axis)
- Up to 6 color output with 8 bit resolution (256 different values per color channels): red, green, blue, intensity, user defined 1, user defined 2
- DMX512 input and output (non-isolated)
- 10/100 Mbit Ethernet port
- Flexible IP address setting: fixed address, DHCP or AutoIP
- Micro-SD card slot for ILDA file playback (ILDA format code 5 RGB)
- Built-in laser figures for stand alone operation
- Stand-alone or DMX mode
- Maximum scan speed of up to 150kpps
- Up to 16 devices can be used in parallel for multi-projector laser shows
- Controlling by DMX; ILDA
- The device can be connected via RJ-45 (F) mounting version to the PC
| IP classification: | IP20 |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Control: | DMX; ILDA |
| PC connect: | Via RJ-45 (F) mounting version |
| Dimensions: | Width: 30 cm
Depth: 28 cm
Height: 18 cm |
| Weight: | 550 g |
