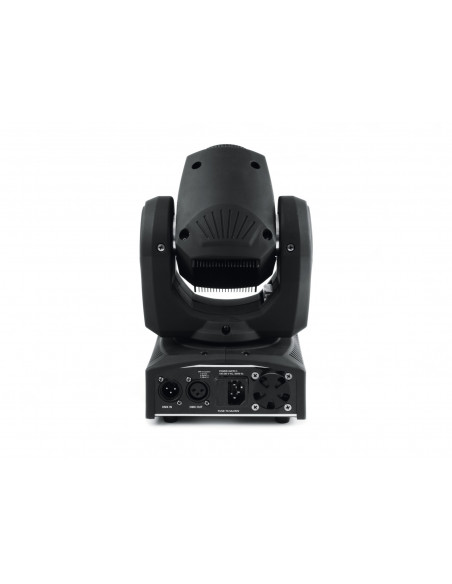

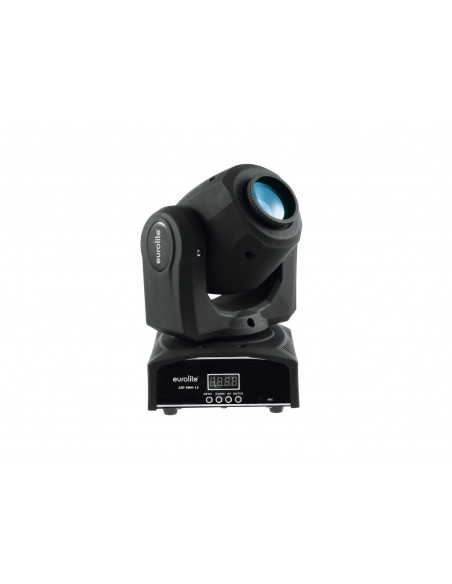

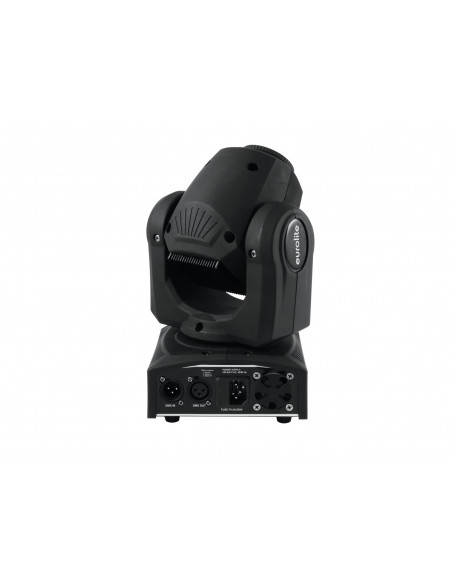

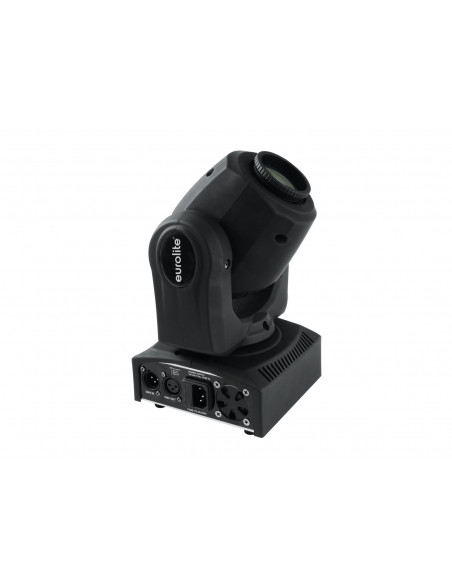

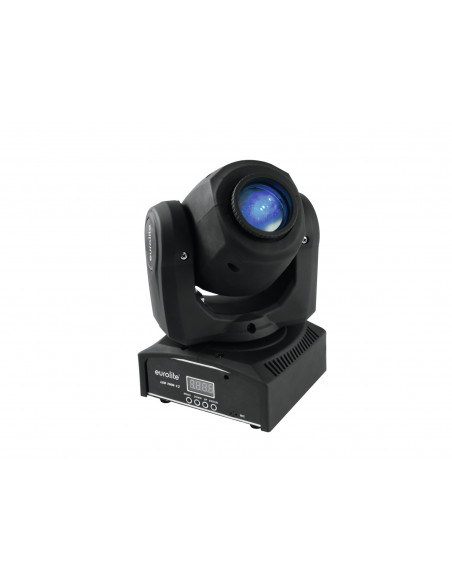

Handy sized spotlight with 10 W LED, gobos and color wheel
- Compact lightweight
- Equipped with a 10 W CREE LED
- Electronic dimmer (0-100%)
- Strobe effect with adjustable speed
- Built-in programs
- Manual focus
- Exact positioning via 16-bit PAN/TILT movement resolution
- Positioning within 540° PAN and 200° TILT
- Stand-alone, master/slave and DMX mode
- Control panel with LED display for easy configuration
- LED: 1 x high-power 10 W color wheel
- Color wheel 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
- Can be operated in 9; 11 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW
- Effect: Gobo effect; Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 1 x high-power 10 W color wheel |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Gobo wheel with static gobos |
| Color generation: | Color wheel 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| DMX channels: | 9; 11 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Light´J; LED PC-Control 512; EASY SHOW |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 342 lx, 6m: 86 lx |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 16 cm
Depth: 15,8 cm
Height: 28 cm |
| Weight: | 2,50 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
