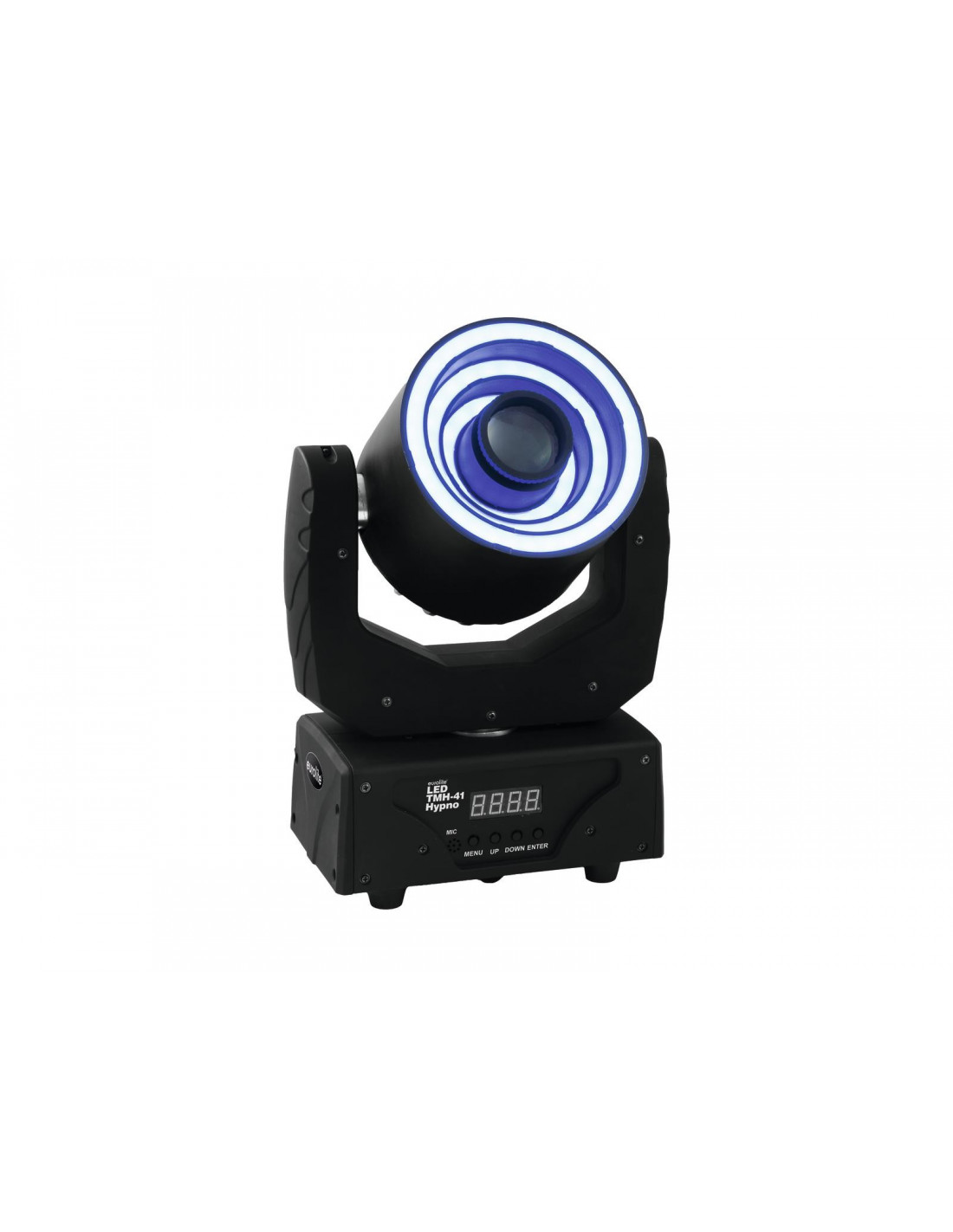

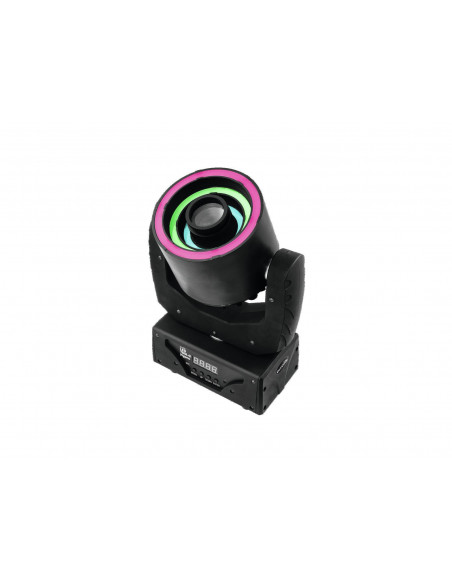

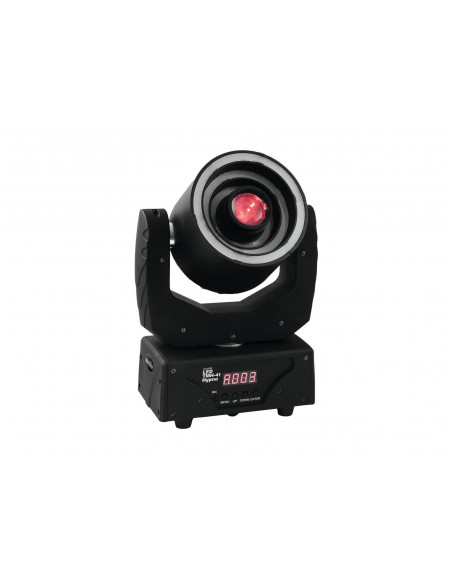

Narrow angled spotlight with 3 hypno rings, 30 W LED, gobo and color wheel
- Spot effect with a powerful white 30 W COB LED and 3 hypno rings with altogether 76 RGB SMD LEDs
- Compact lightweight
- Electronic dimmer (0-100%)
- Strobe effect with 1-25 flashes per second
- Random strobe effect
- Built-in programs
- Manual focus
- LED hypno rings with stepless RGB color mixture - each color and each ring can be controlled individually, color presets and color changes
- Automatic position correction
- Positioning within 630° PAN and 210° TILT
- PAN-angle switchable between 630° and 540°
- Exact positioning via 16-bit PAN/TILT movement resolution
- Stand-alone, master/slave and DMX mode
- Control panel with LED display for easy configuration
- LED: 76 x SMD 3in1 TCL RGB (homogenous color mix)
- LED: 1 x COB (chip-on-board) 30 W color wheel
- Color wheel 9 dichroitic colors and open
- Gobo wheel with static gobos, 9 gobos and open
shake effect - Can be operated in 12; 23 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- Effect: Gobo effect; Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 76 x SMD 3in1 TCL RGB (homogenous color mix)
1 x COB (chip-on-board) 30 W color wheel |
| Max. TILT movement: | Exact positioning (16 bit resolution) 210° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: | 0 - 25 Hz |
| Equipment: | Gobo wheel with static gobos |
| Color generation: | Color wheel 9 dichroitic colors and open |
| Gobos: | Gobo wheel with static gobos, 9 gobos and open
Shake effect |
| DMX channels: | 12; 23 |

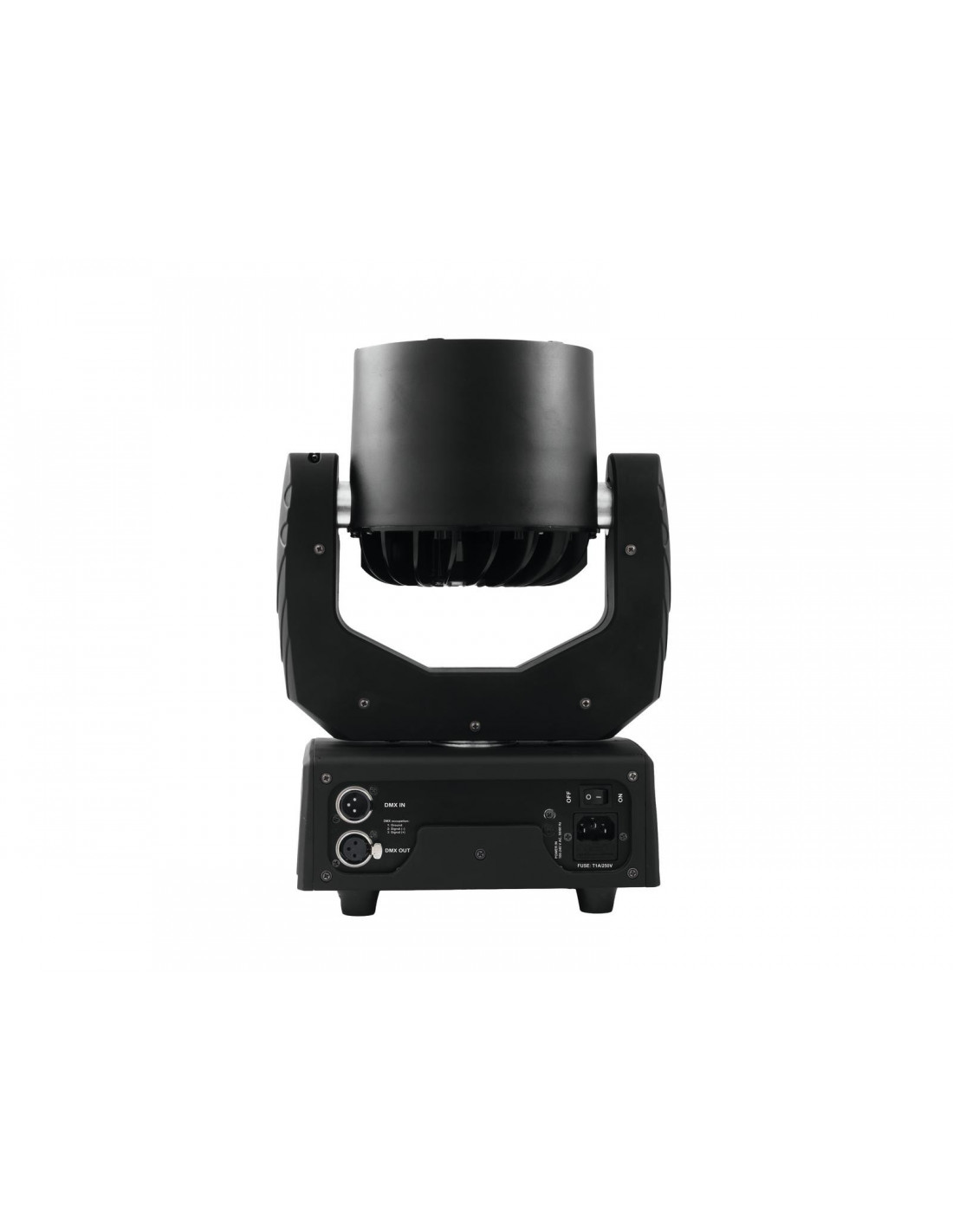

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Light´J; LED PC-Control 512 |
| Beam angle: | 4,7° |
| Beam angle (1/2 peak): | 4,7° |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 24,5 cm
Depth: 16,5 cm
Height: 35 cm |
| Weight: | 5,68 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
