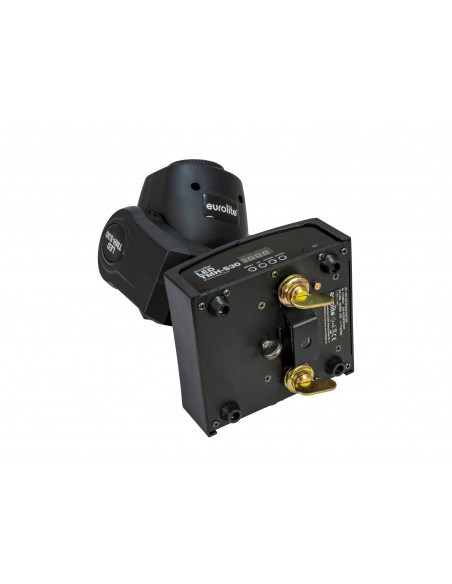

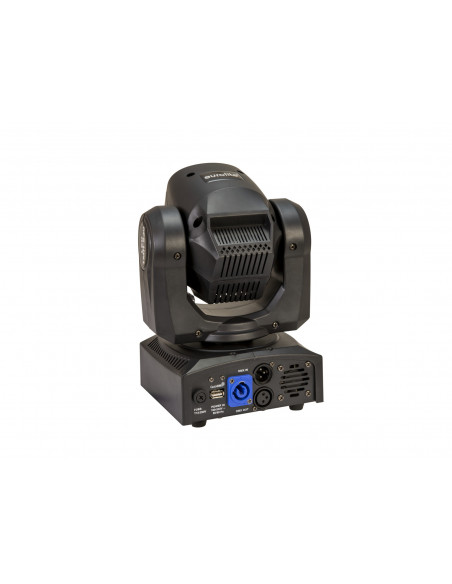

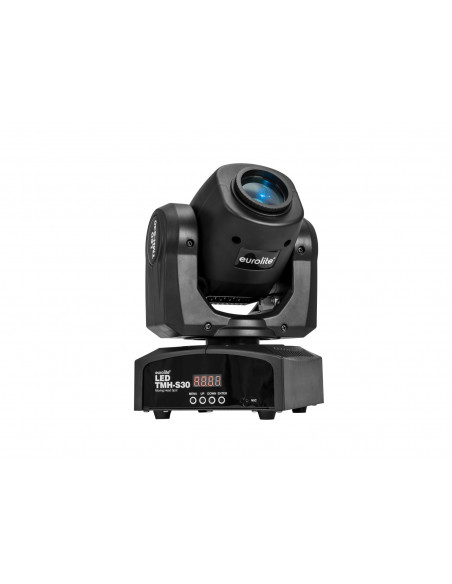

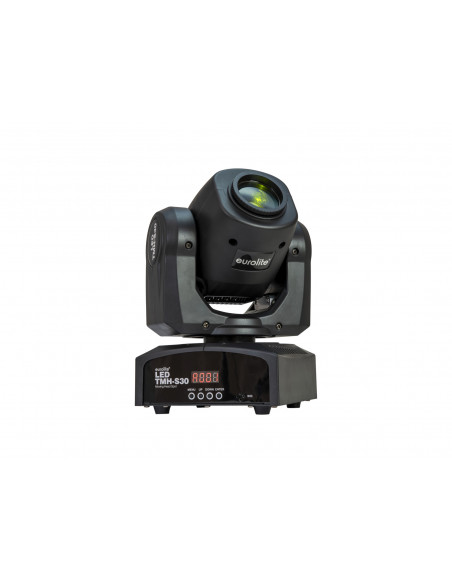

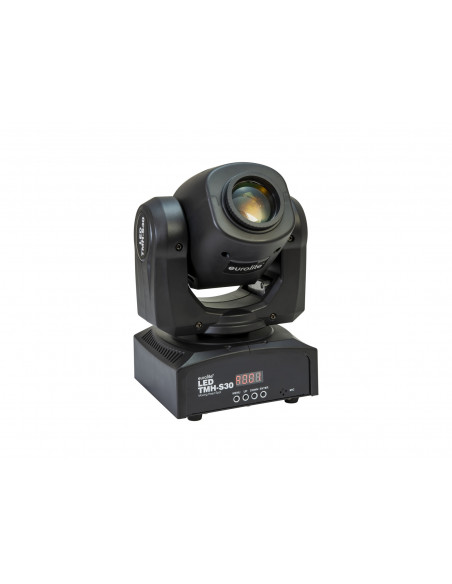

Compact Moving Head Spot with 30 W LED, gobos and color wheel
- One highpower 30 W COB LED in cold white
- Positioning within 540° PAN and 180° TILT
- Exact positioning via 16-bit PAN/TILT movement resolution
- Built-in auto and music show programs
- Strobe effect with adjustable speed
- Electronic dimmer (0-100%)
- Manual focus
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LED display for easy configuration
- Additional rubber feet protect the device when positioned on the floor
- LED: 1 x COB (chip-on-board) 30 W cold white (CW)
- Color wheel 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 10; 12 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW
- Flicker-free projection
- Effect: Single Beam; Strobe effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 45 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 30 W cold white (CW) |
| Color temperature: | 8000K |
| Max. TILT movement: | Exact positioning (16 bit resolution) 170° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Color wheel; Focus manual; gobo wheel with rotating gobos |
| Color generation: | Color wheel 7 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 10; 12 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512; EASY SHOW; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional) |
| Beam angle: | 8° |
| Beam angle (1/2 peak): | 8° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 14450 lx, 3m: 1574 lx, 6m: 377 lx |
| Housing color: | Black |
| Dimensions: | Width: 17,0 cm
Depth: 15,0 cm
Height: 24,0 cm |
| Weight: | 3,03 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
