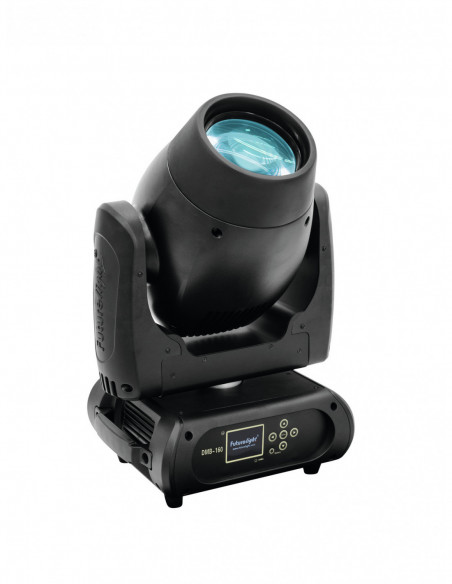

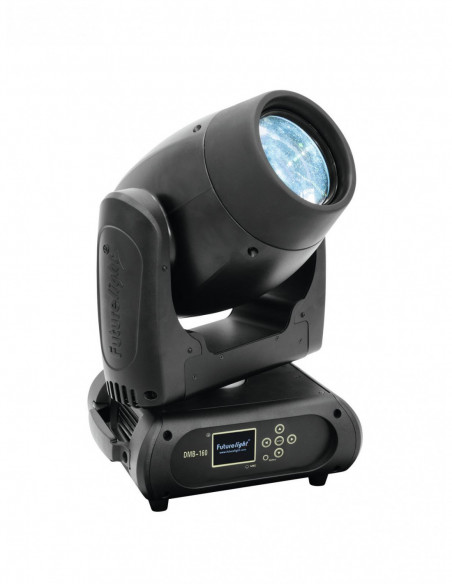

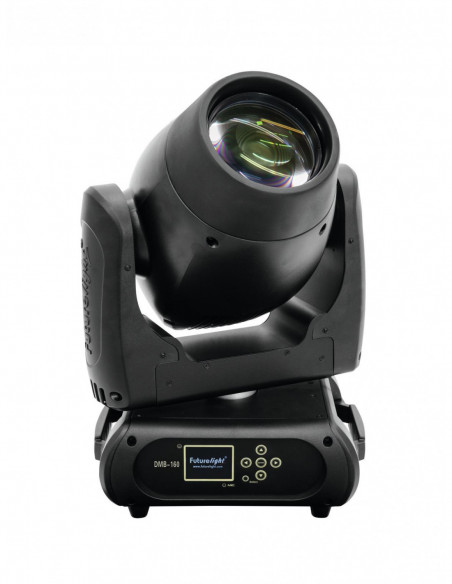

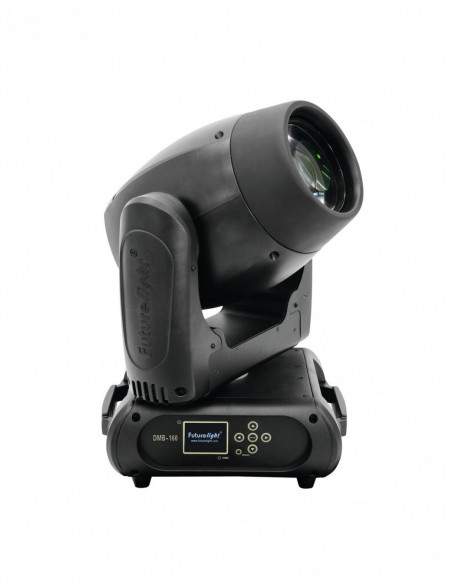

PRO beam moving-head with 150 W COB LED and many features
- With glass lens
- Extremely high light output
- Very narrow beam angle of 3°
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- Effect wheel with rotating 6-facet linear prism, 8-facet prism and frost filter
- Exact positioning via 16-bit PAN/TILT movement resolution
- Electronic dimmer (0-100%)
- Motorized focus
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540° and 630°
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- Control panel with LC display for easy configuration
- Stand-alone, master/slave and DMX mode
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- LED: 1 x COB (chip-on-board) 150 W cold white (CW)
- Color wheel 14 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 17 gobos and open
shake effect - Can be operated in 11; 13; 14; 17 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by RDM; DMX; stand-alone; W-DMX by wireless solution upgradeable; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512
- Flicker-free projection
- Effect: Gobo effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 200 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 150 W cold white (CW) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Equipment: | Gobo wheel with static gobos; Prism Linear; Prism 8-fold; frost filter; Focus motor-driven |
| Color generation: | Color wheel 14 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 17 gobos and open
Shake effect |
| DMX channels: | 11; 13; 14; 17 |

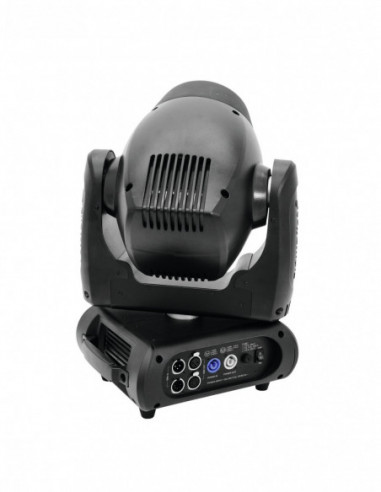

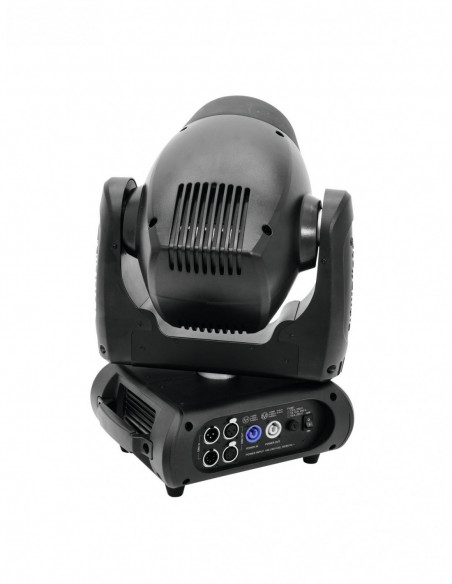

| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; DMX; stand-alone; W-DMX by wireless solution upgradeable; Sound to light via Microphone; LED PC-Control 512 |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 76776 lx, 6m: 18482 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 34,3 cm
Depth: 25 cm
Height: 42,8 cm |
| Weight: | 15,55 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
