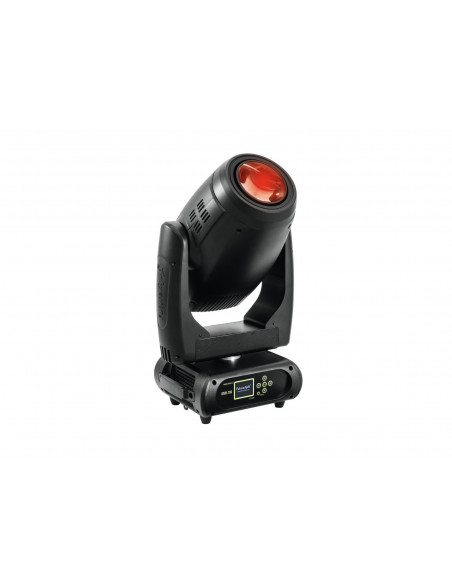

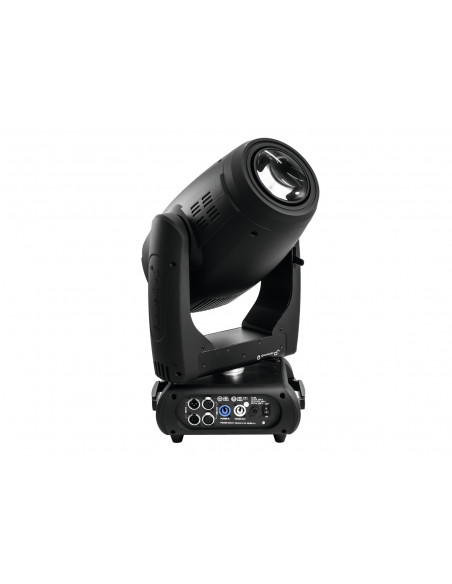

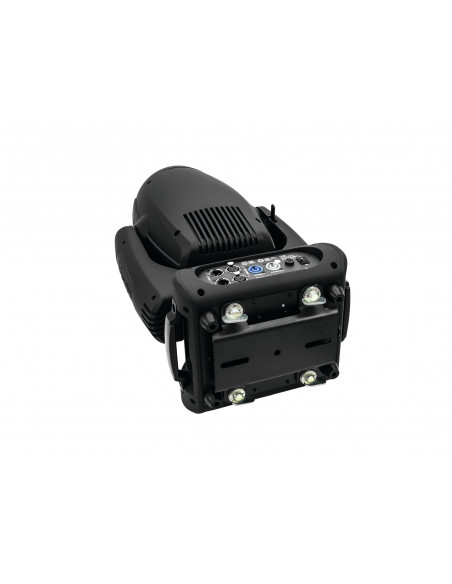

PRO beam/wash moving-head with 200 W COB LED and large zoom
- Equipped with a powerful white 200 W COB LED
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- Effect wheel with rotating 3-facet prism
- Exact positioning via 16-bit PAN/TILT movement resolution
- Motorized focus
- Autofocus
- Motorized zoom with 7.5-40° beam angle
- Steplessly adjustable iris
- Stepless frost-filter
- Electronic dimmer (0-100%)
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540° and 630°
- Control panel with LC display for easy configuration
- Stand-alone, master/slave and DMX mode
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- LED: 1 x COB (chip-on-board) 200 W cold white (CW)

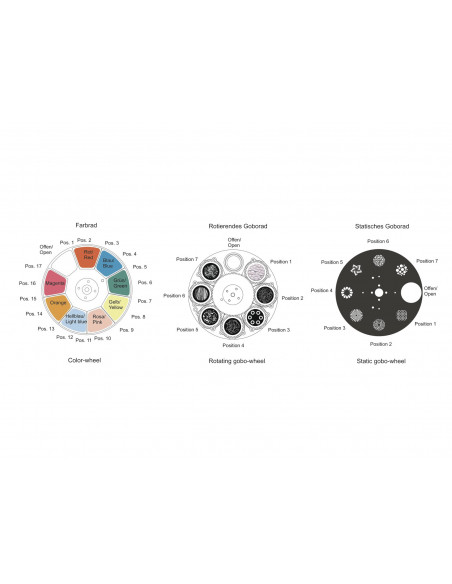

- Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
- Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 15; 17; 24; 25 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512
- Flicker-free projection
- Effect: Gobo effect; Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 270 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 200 W cold white (CW) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 265° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Equipment: | Gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold; Iris; Focus motor-driven; Zoom motor-driven; frost filter |
| Color generation: | Color wheel 8 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 27mm
Image diameter 22mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 15; 17; 24; 25 |
| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; Sound to light via Microphone; LED PC-Control 512 |
| Beam angle: | 7,5 - 40° |
| Beam angle (1/2 peak): | 7,5 - 40° |
| Beam angle (1/10 peak): | 7,5 - 40° |
| Housing color: | Black |
| Dimensions: | Width: 40,2 cm
Depth: 25 cm
Height: 53,4 cm |
| Weight: | 21,55 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
