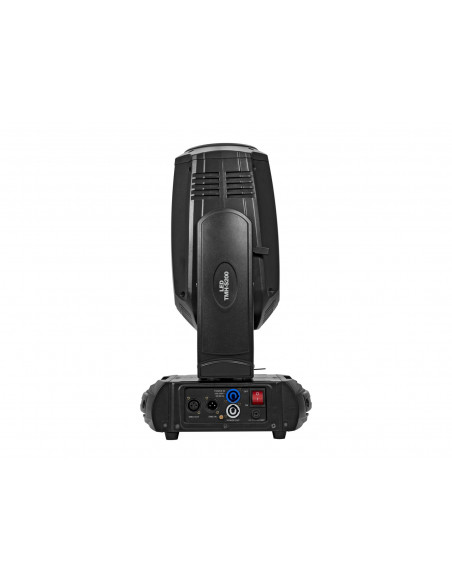

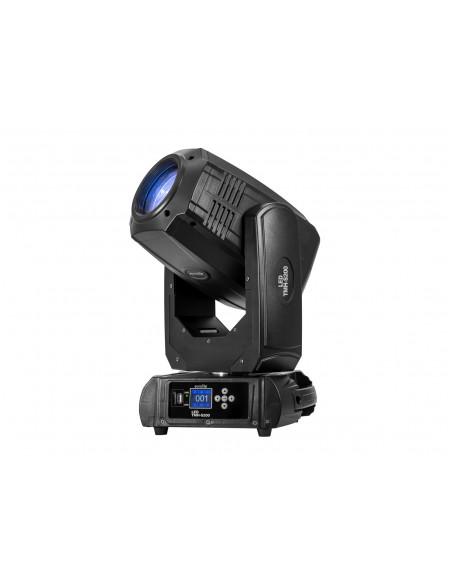

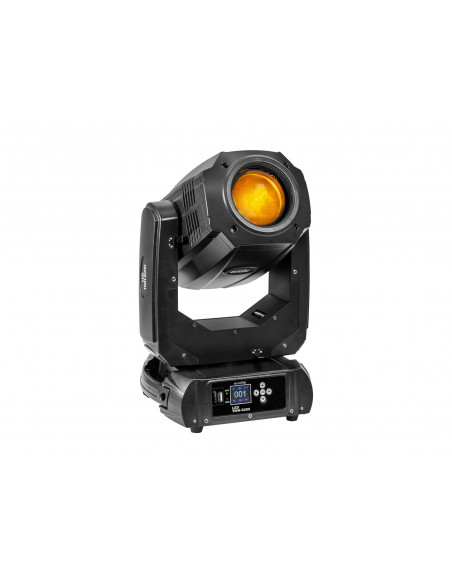

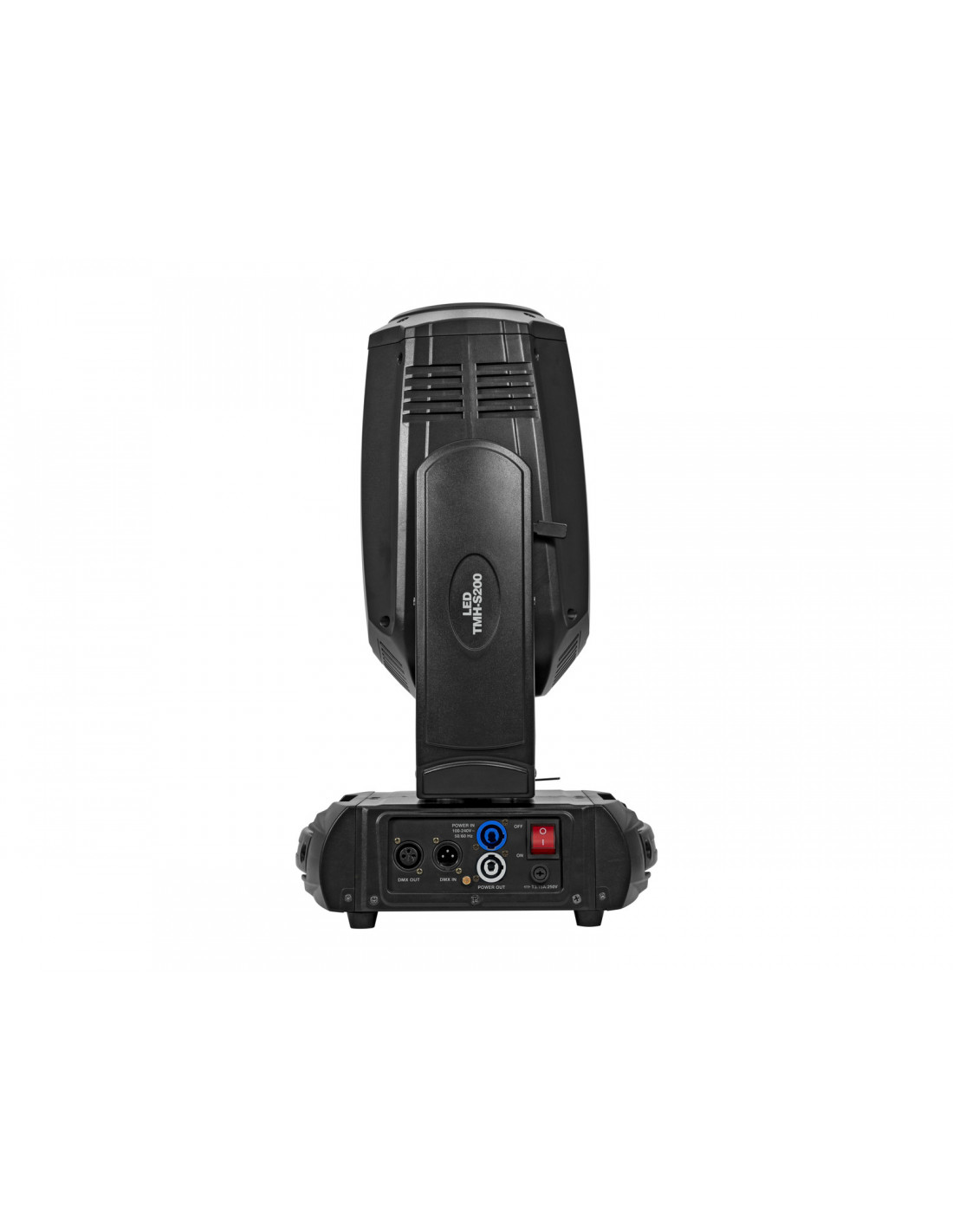

LED Moving Head spot with color wheel, static & rot. gobo wheel, prism, frost, focus and zoom
- Equipped with a cold white 200 W COB LED
- Positioning within 540° PAN and 270° TILT
- Exact positioning via 16-bit PAN/TILT movement resolution
- Rotating 3-facet prism
- The prism rotates in both directions and at different speeds, prism index function
- Frost filter
- Strobe effect with 1-18 flashes per second
- Built-in programs
- Electronic dimmer (0-100%)
- Dimmer speed (step response) adjustable
- Motorized focus
- Motorized zoom with 8-22° beam angle
- Automatic position correction
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LC display for easy configuration
- Mains input and output for power linking up to 8 units

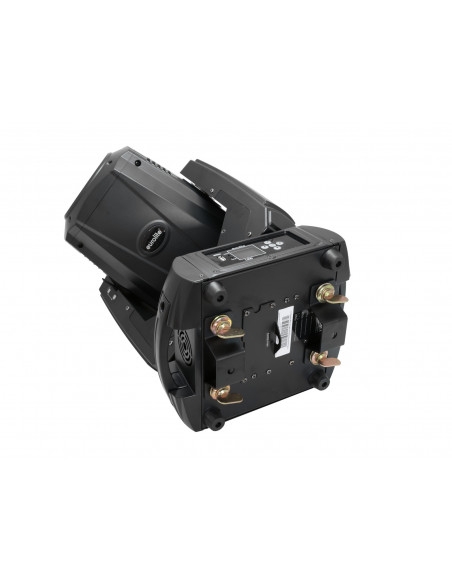

- Additional rubber feet protect the device when positioned on the floor
- LED: 1 x COB (chip-on-board) 200 W cold white (CW)
- Color wheel 1 x 9 dichroitic colors and open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 9 gobos and open
shake effect - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Slot-in gobo system for exchanging gobos without tools
- Gobos changeable
- Can be operated in 17 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 250 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Device fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 200 W cold white (CW) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Prism 3-fold; frost filter; gobo wheel with rotating gobos; gobo wheel with static gobos; Zoom motor-driven; Focus motor-driven; color wheel |
| Color generation: | Color wheel 1 x 9 dichroitic colors and open |
| Gobos: | Gobo wheel with static gobos, 9 gobos and open
Shake effect
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 20mm
Image diameter 15mm
Shake effect
Slot-in gobo system for exchanging gobos without tools
Gobos changeable |
| DMX channels: | 17 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 8 - 22° |
| Beam angle (1/2 peak): | 8 - 22° |
| Beam angle (1/10 peak): | 8 - 22° |
| Illuminance in Lux (lx): | Narrow cold white (CW) 3m: 22622 lx, 6m: 6278 lx
Wide cold white (CW) 1m: 31619 lx, 3m: 4309 lx, 6m: 1112 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 30,5 cm
Depth: 33,0 cm
Height: 51,5 cm |
| Weight: | 14,70 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
