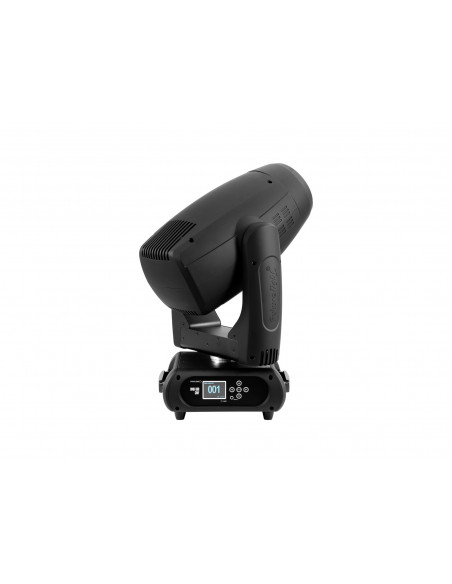

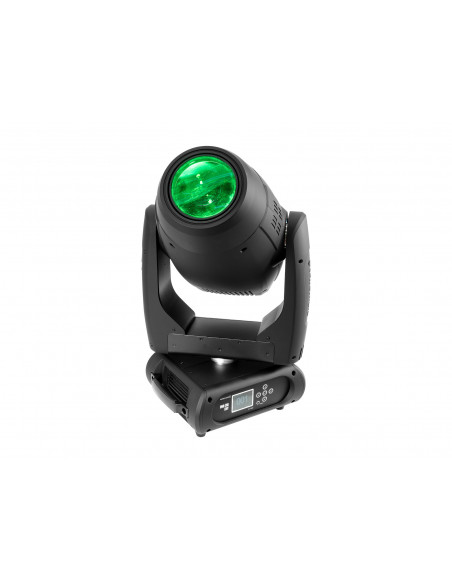

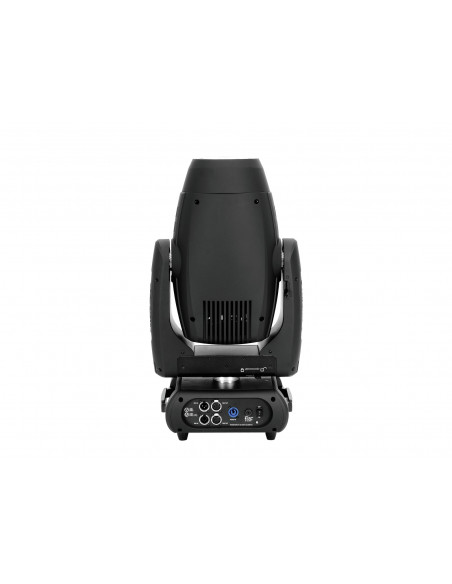

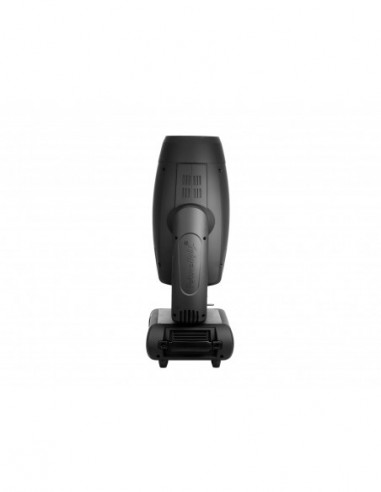

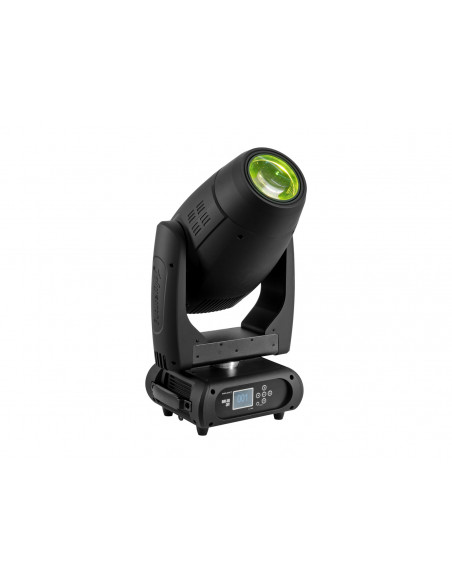

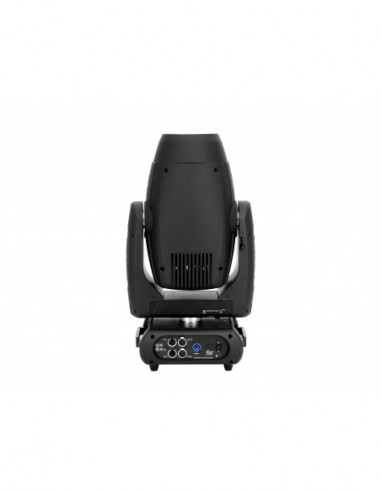

FUTURELIGHT DMH-300 CMY Moving Head

Referência 51841980

2 501,07 €

Descrição
Detalhes do produto

PRO beam/wash moving-head with 270 W COB LED, large zoom and CMY color mixing

Powerful white 270 W COB LED
Variable PWM frequency (pulse-width modulation)
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
Effect wheel with rotating 3-facet prism
Exact positioning via 16-bit PAN/TILT movement resolution
Motorized focus
Autofocus
Motorized zoom with 8-44° beam angle
Steplessly adjustable iris
Stepless frost-filter
Electronic dimmer (0-100%)
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Control panel with LC display for easy configuration
Stand-alone, master/slave and DMX mode
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
LED: 1 x COB (chip-on-board) 270 W cold white (CW)
CMY color mixing for indefinite color variations
Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open
shake effect
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
Can be operated in 19; 21; 28; 29 CH mode
The device is cooled by temperature-controlled fan
Controlling by stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; Sound to light via Microphone
Flicker-free projection
Effect: Gobo effect; Single Beam; Strobe effect

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	340 W
IP classification:	IP20
Power connection:	Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED:	1 x COB (chip-on-board) 270 W cold white (CW)
Max. TILT movement:	Exact positioning (16 bit resolution) 265° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Equipment:	Gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold; Zoom motor-driven; Focus motor-driven; frost filter; Iris
Color generation:	CMY color mixing for indefinite color variations; color wheel 8 dichroic filters plus open
Gobos:	Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools
DMX channels:	19; 21; 28; 29
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; Sound to light via Microphone
Beam angle:	8 - 44°
Beam angle (1/2 peak):	8 - 44°
Beam angle (1/10 peak):	8 - 44°
Illuminance in Lux (lx):	Narrow cold white (CW) 3m: 58069 lx, 6m: 12229 lx Wide cold white (CW) 3m: 2745 lx, 6m: 736 lx
Housing color:	Black
Display type:	LCD display
Dimensions:	Width: 44,5 cm Depth: 36,9 cm Height: 53,4 cm
Weight:	25,10 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
